Elko
Timer, Elko
TIMER 2POLE SWITCH
Article number: Suppl. article no:
1897960
EKO03285
to see price and stock

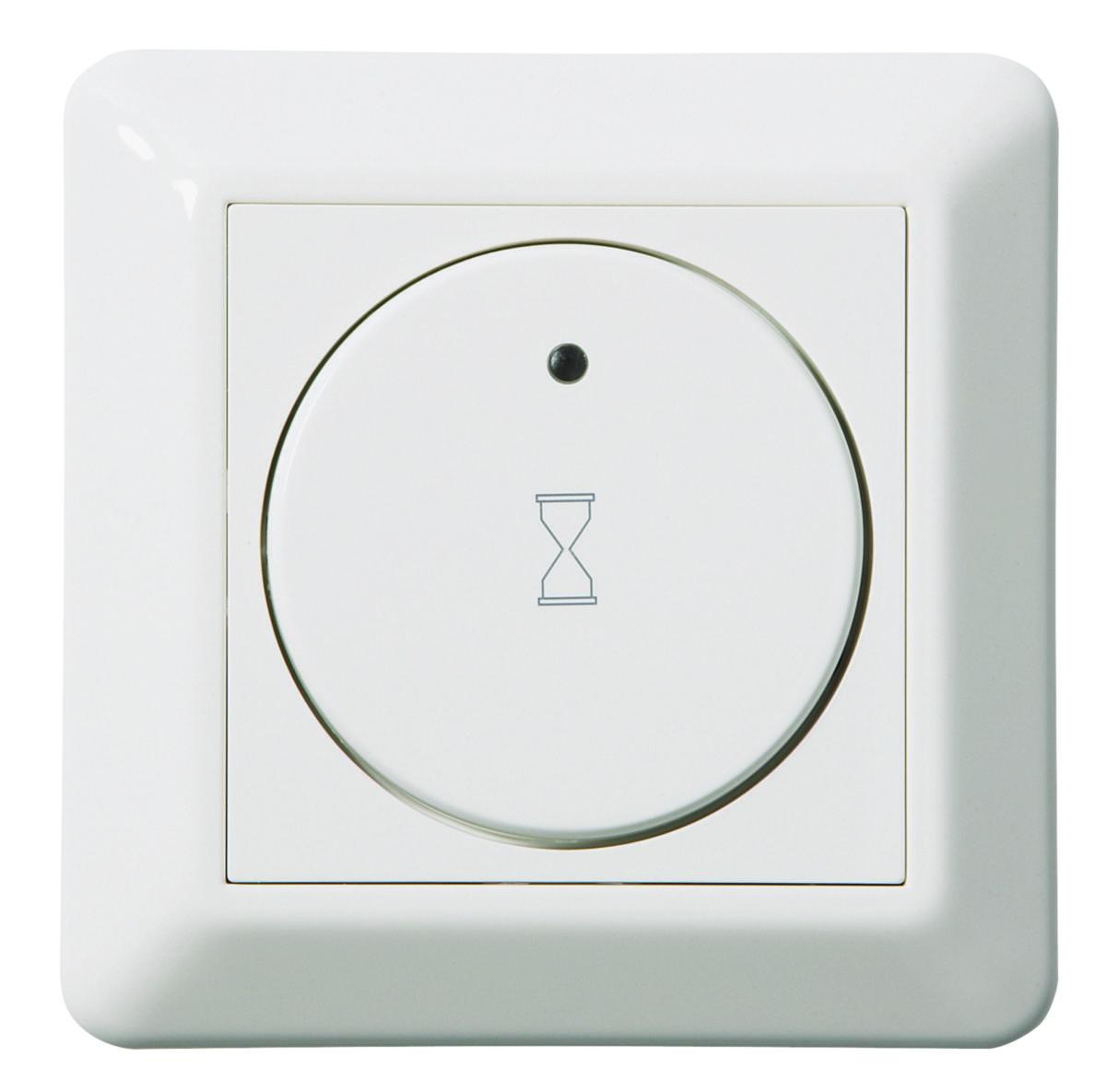

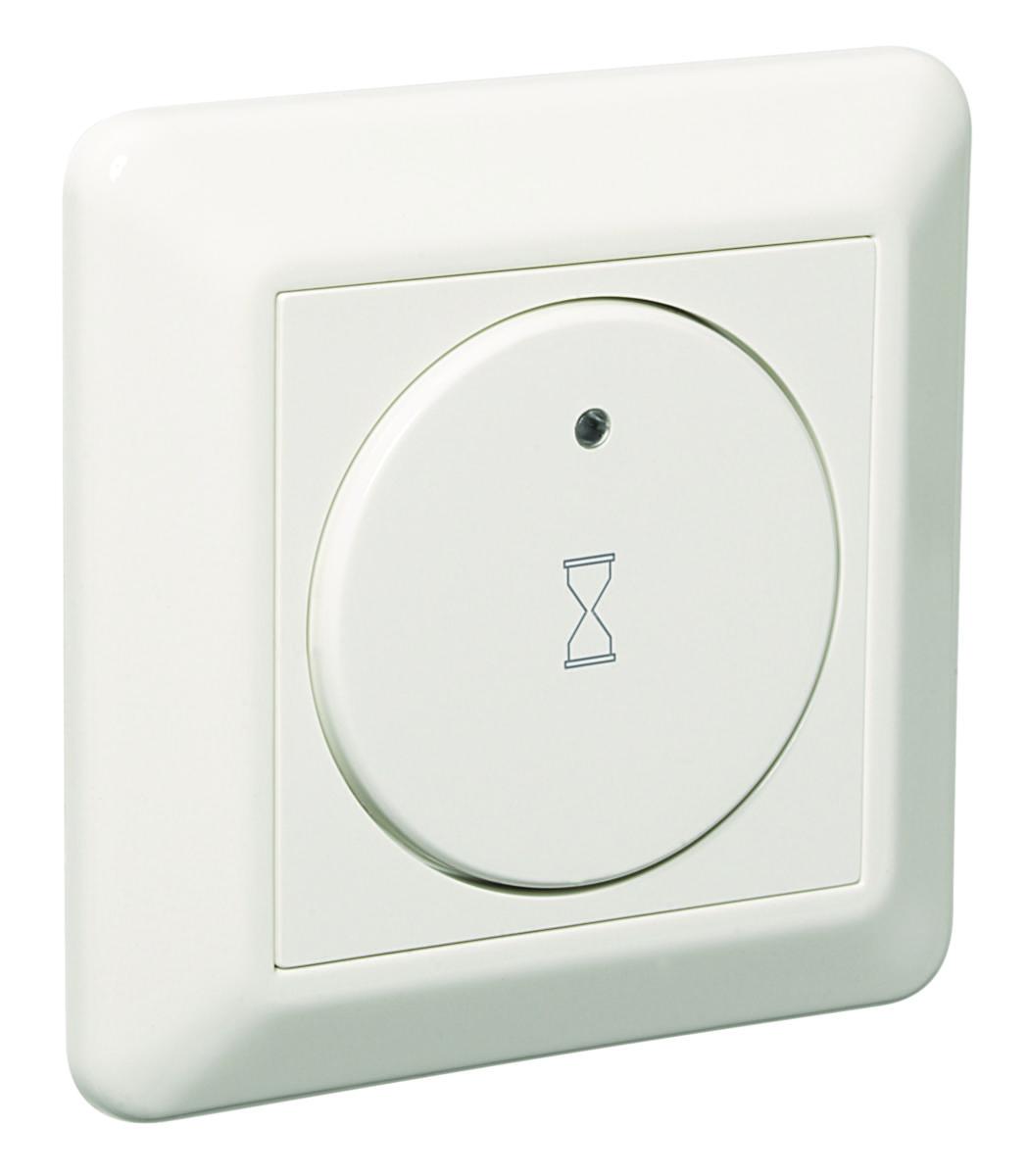

Timer with light. For recessed installation. With frame and centre plate of halogen free thermoplastic. Fixed screw distance 60 mm. Designed also for combination assembly. For surface mounting raising frames are used. 1-pole for controlling e.g. lighting, 2-pole for controlling e.g. coffee machines and clothes irons. Choice of switching time is performed with header card marked RANGE. Both phase and neutral conductors must be connected.
- Article number: 1897960
- Suppl. article no: EKO03285
- Ean no: 7020160328502
- Material class QH4900
Technical data
- Packagin Size: 1 ST/5 ST/480 ST
- Type: Timer 2-pin
- Product series: RS
- Model: Electronic
- Number of contacts as normally open contact: 2
- Colour: White
- RAL-number (similar): 9010
- Shortest switching interval: 15 min
- Time setting: 15-480 min
- Device width: 84 mm
- Device height: 84 mm
- Mounting method: Flush-mounted
- Autonomy: 0 h
- Material: Plastic
- Material quality: Thermoplastic
- Max. power: 2300 W
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Rated current: 10 A
- Substation input: No
- Twilight value adjustable: 0 lx
- Random generator: No
- Transparent: No
- Type of fastening: Mounting with screw
- Astro program: Yes
- Frequency: 50 Hz
- Surface finishing: Glossy
- Surface protection: Untreated
- With brightness sensor connection: No
- REACH Date: 2022-08-09
- Built-in depth: 32 mm
- Number of modules (module system): 0
- Time: 15 min - 8 hr
- REACH Information obligation: No
