Elko

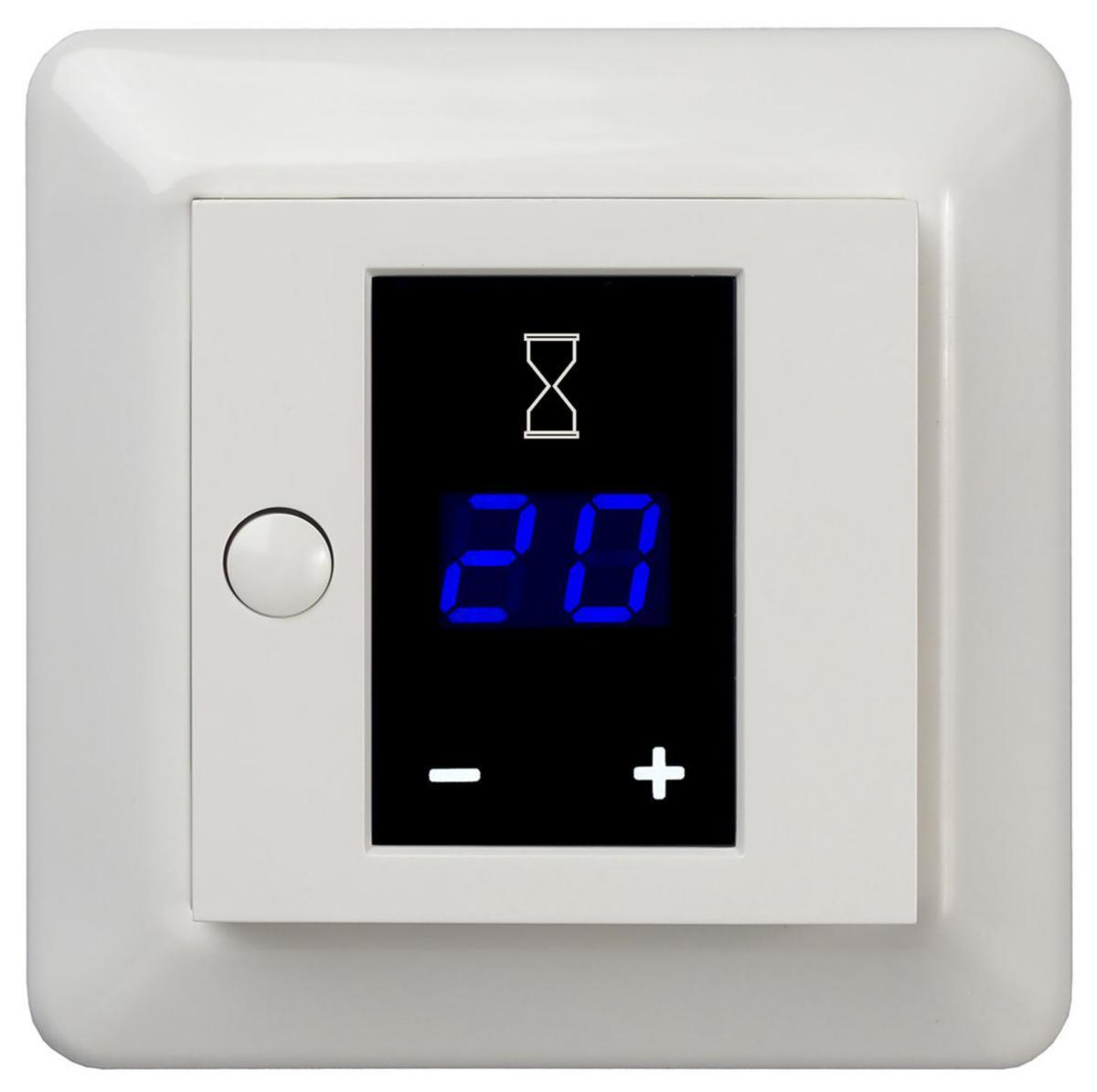

Programmable Timer, Elko RS
RS COUNTDOWN TIMER 16A EKO05986
Article number: Suppl. article no:
1887960
EKO05986
to see price and stock
Hours that show the remaining time before switching off. Programmable as On / on or On / off. Input for external control via pushbutton. Possibility to block times of both max and min. 16A, 2-pole mechanical switch. Mounting depth 25mm.
- Article number: 1887960
- Suppl. article no: EKO05986
- Ean no: 7020160598608
- Material class QH490B
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: RS
- Model: Electronic
- Colour: White
- RAL-number (similar): 9010
- Shortest switching interval: 1 min
- Device width: 84 mm
- Device height: 84 mm
- Mounting method: Flush-mounted
- Autonomy: 0 h
- Material: Plastic
- Material quality: Thermoplastic
- Max. power: 3600 W
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 230 V
- Rated current: 16 A
- Substation input: No
- Random generator: No
- Transparent: No
- Type of fastening: Mounting with screw
- Astro program: No
- Frequency: 50 Hz
- Surface finishing: Glossy
- Surface protection: Untreated
- With brightness sensor connection: No
- REACH Date: 2022-08-09
- Built-in depth: 25 mm
- REACH Information obligation: No
