Elko

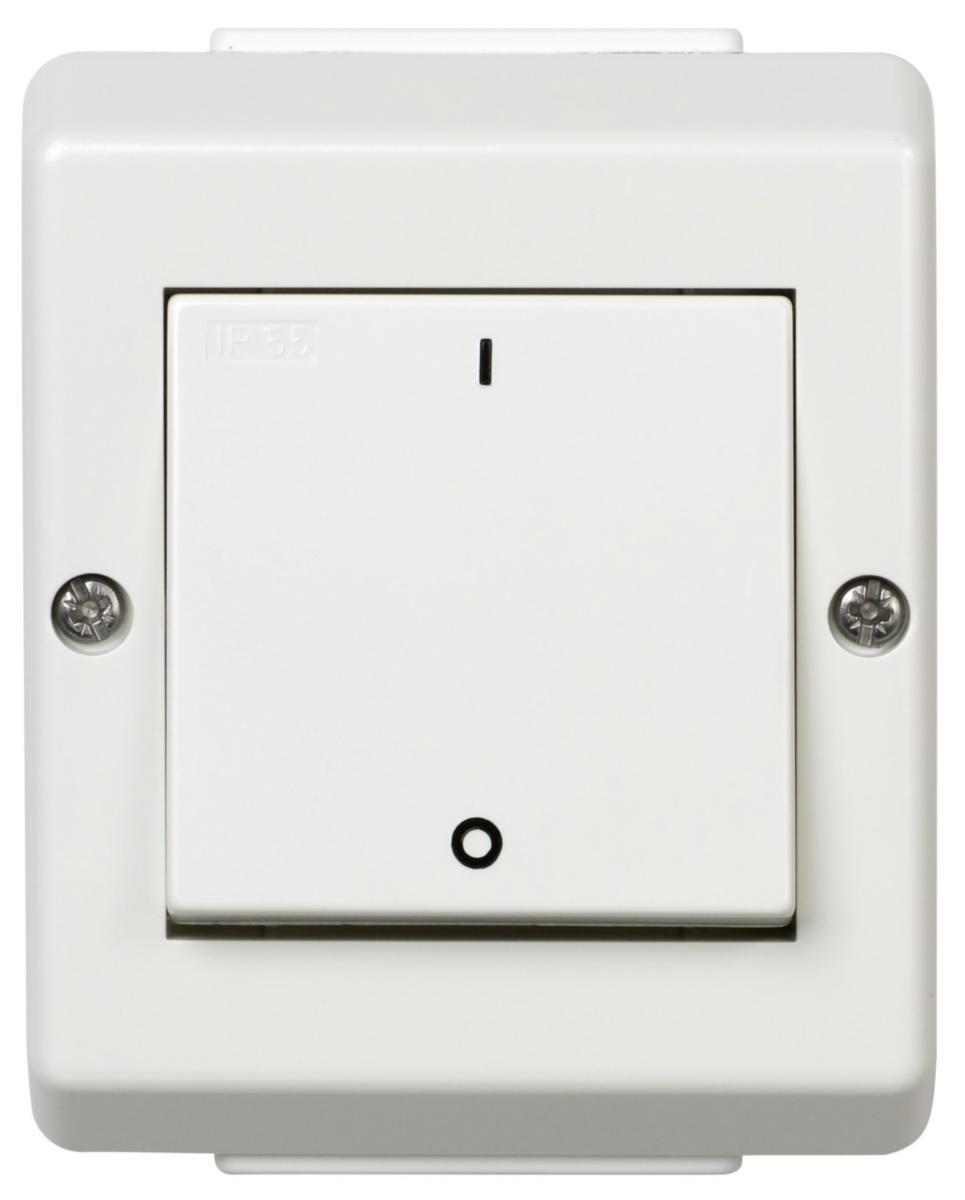

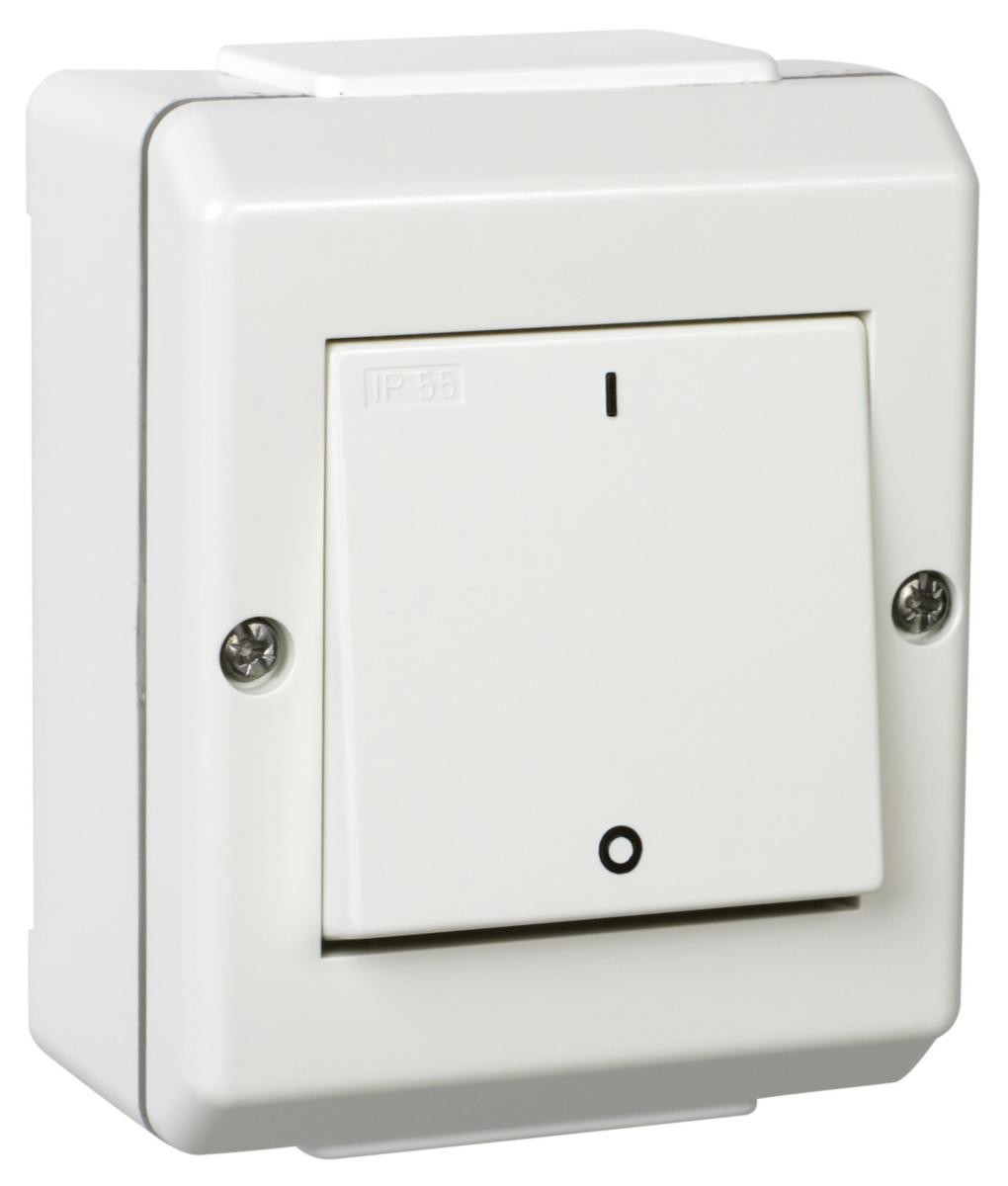

Switch without light IP55
S16/2 VP SWITCH WT PW
Article number: Suppl. article no:
1885706
EKO04312
to see price and stock
To shop with us, you need a registered company and a customer number.
Made of halogen-free thermoplastic. Screw connection for connectors. Dual connections per phase. Extra switching clamp for bi-conductor. Equipped with grommets Switch distance 3mm.
- Article number: 1885706
- Suppl. article no: EKO04312
- Ean no: 7020160431202
- Material class QH4290
Technical data
- Packagin Size: 1 ST/5 ST
- Type: 4312
- Wiring system: 2-pole switch
- Method of operation: Rocker/button
- Number of rockers: 1
- Lighting: No
- Push button switch: No
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9010
- Suitable for degree of protection (IP): IP55
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 67 mm
- Device height: 82 mm
- Device depth: 37 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- With mounting plate: No
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- REACH Information obligation: No
