Switch with light IP55/IP54

S16/1 VP SWITCH LIGHT WT PW EKO07466

Article number:

1885440

Suppl. article no:

EKO07466

‌
‌
‌

‌
‌

to see price and stock

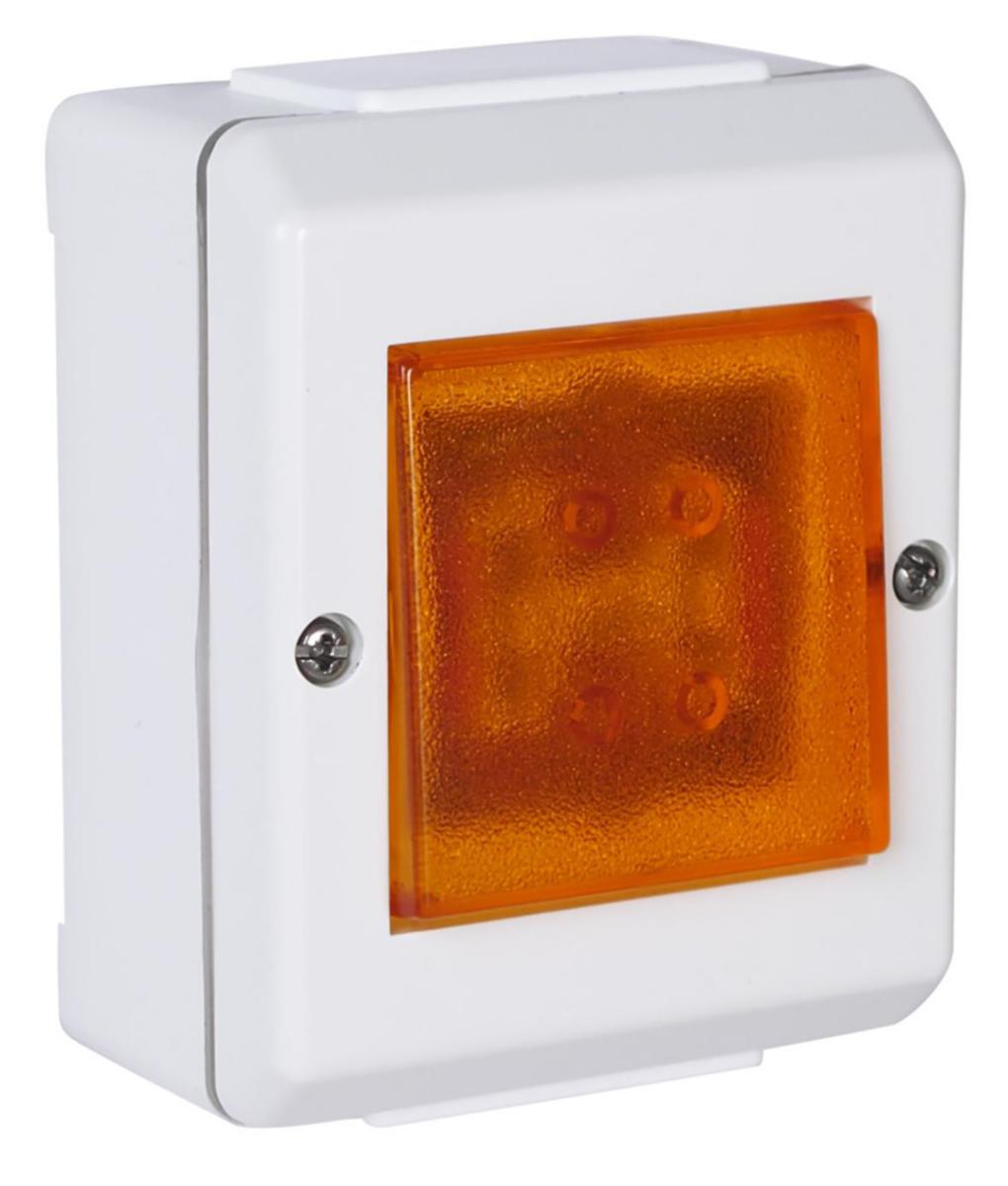

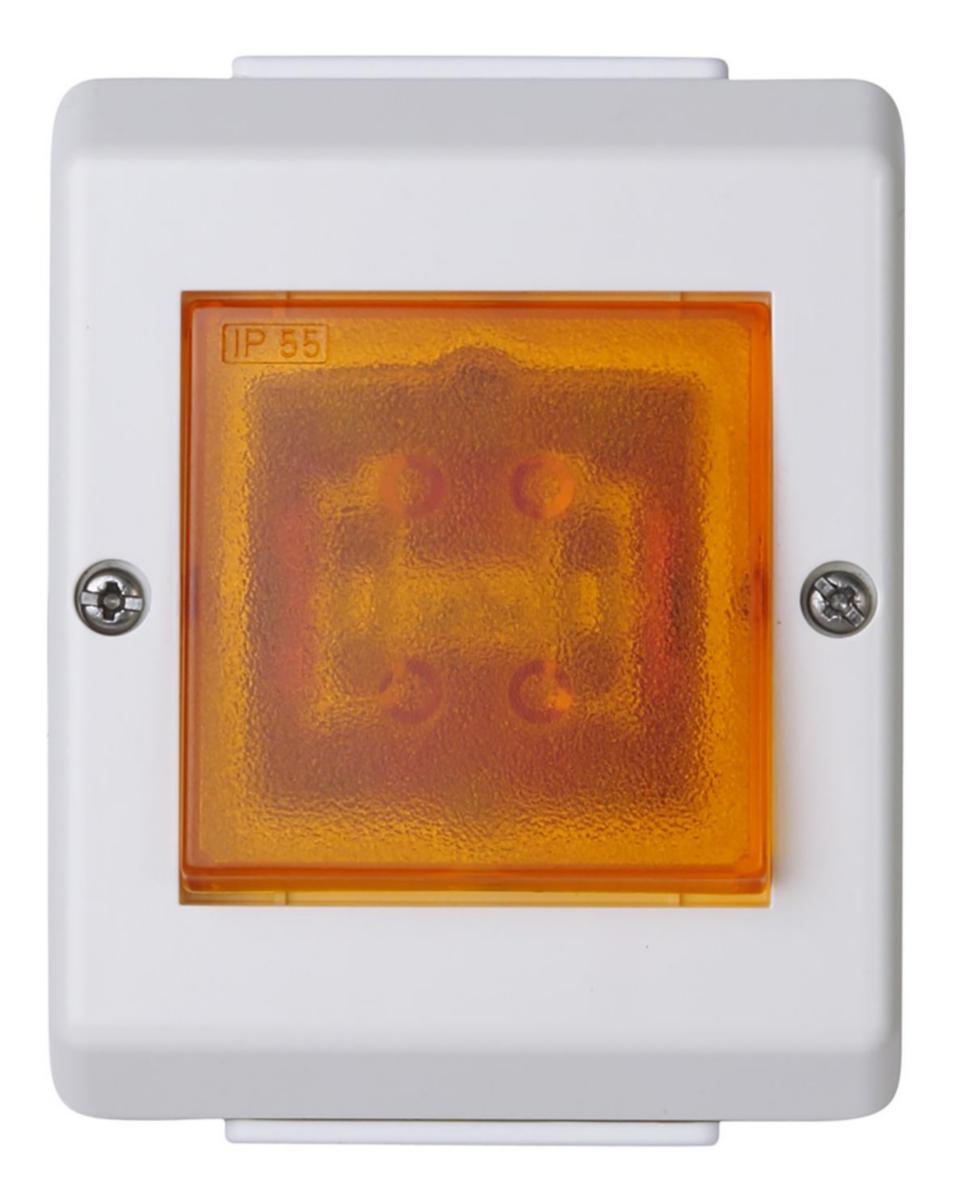

Switch for surface mounting, 16A, 250V, with light. IP55/IP54. Fluorescent lamp 10A. Made of halogen-free thermoplastic. Screw connection for connectors. Dual connections per phase. Extra switching clamp for bi-conductor. Equipped with grommets Supplied complete with glow lamp, 1.2 mA, min 60V. Switch distance 3mm.

For E1835062E surface IP54- mounting applies. Two membrane nipples. Incl. indicator lamp. Approved in compliance with insurance company’s requirements for farming installation. The plastic has very good features in relation to vegetable oils and ammoniac.

Article number:
1885440
Copy to clipboard
Suppl. article no:
EKO07466
Copy to clipboard
Ean no:
7020160746603
Copy to clipboard
Material class
QH3600
Copy to clipboard

Technical data

Packagin Size: 1 ST/5 ST
Wiring system: Two-way switch
Method of operation: Rocker/button
Number of rockers: 1
Lighting: No
Push button switch: No
Colour: White
Label space/information surface: No
Rated current: 16 A
Switching current for fluorescent lamps: 10 AX
RAL-number (similar): 9003
Suitable for degree of protection (IP): IP55
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
Mounting method: Surface mounted
Device width: 67 mm
Device height: 82 mm
Device depth: 37 mm
Built-in depth: 0 mm
Assembly arrangement: Basic element with complete housing
Nominal voltage: 250 V
Washing machine switch: No
Type of fastening: Screw mounting
Surface finishing: Glossy
Surface protection: Untreated
Feedback-signal contact: No
With mounting plate: No
Connection type: Screwed terminal
Number of modules (module system): 0
REACH Date: 2022-08-09
REACH Information obligation: No
