Elko

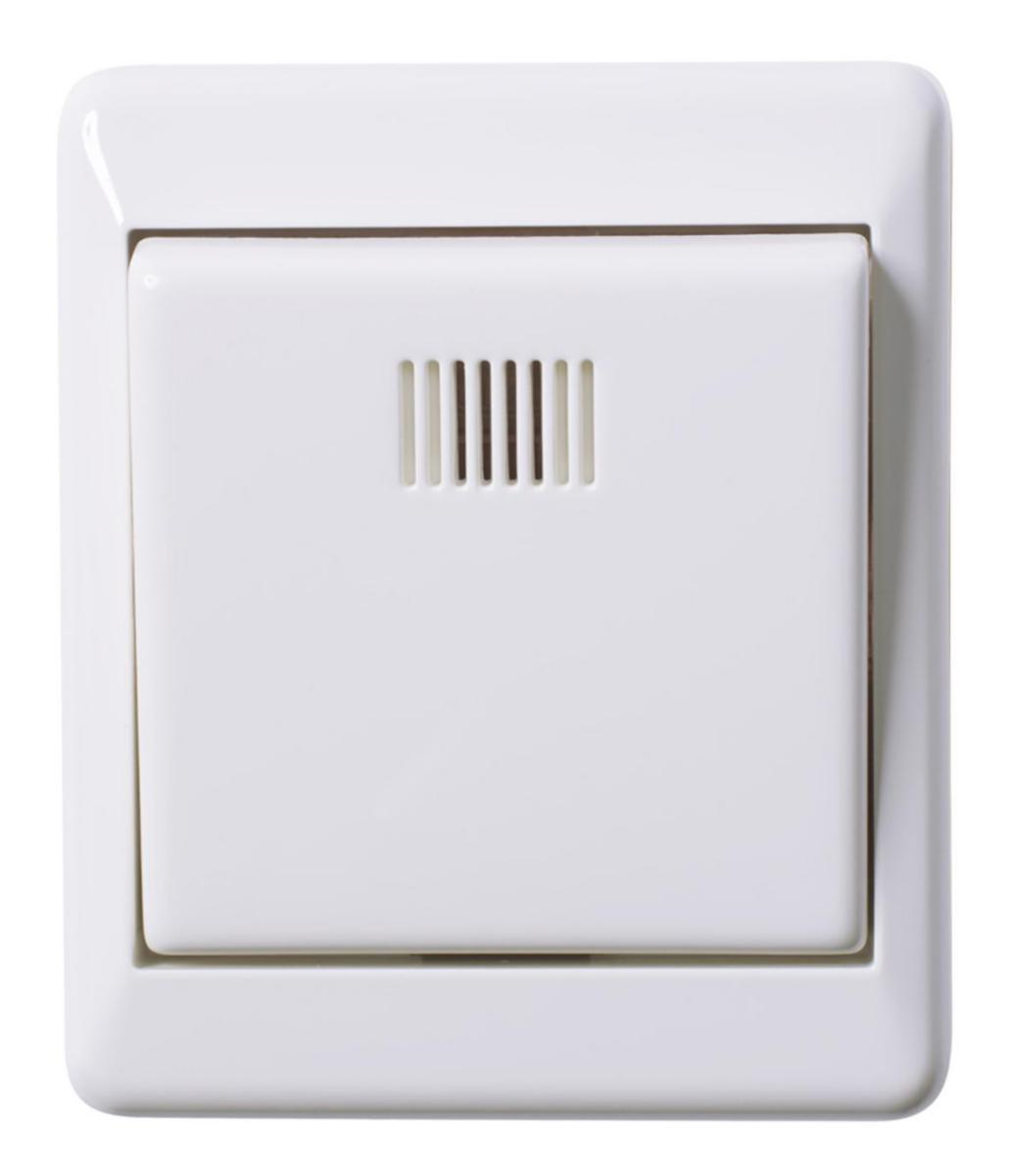

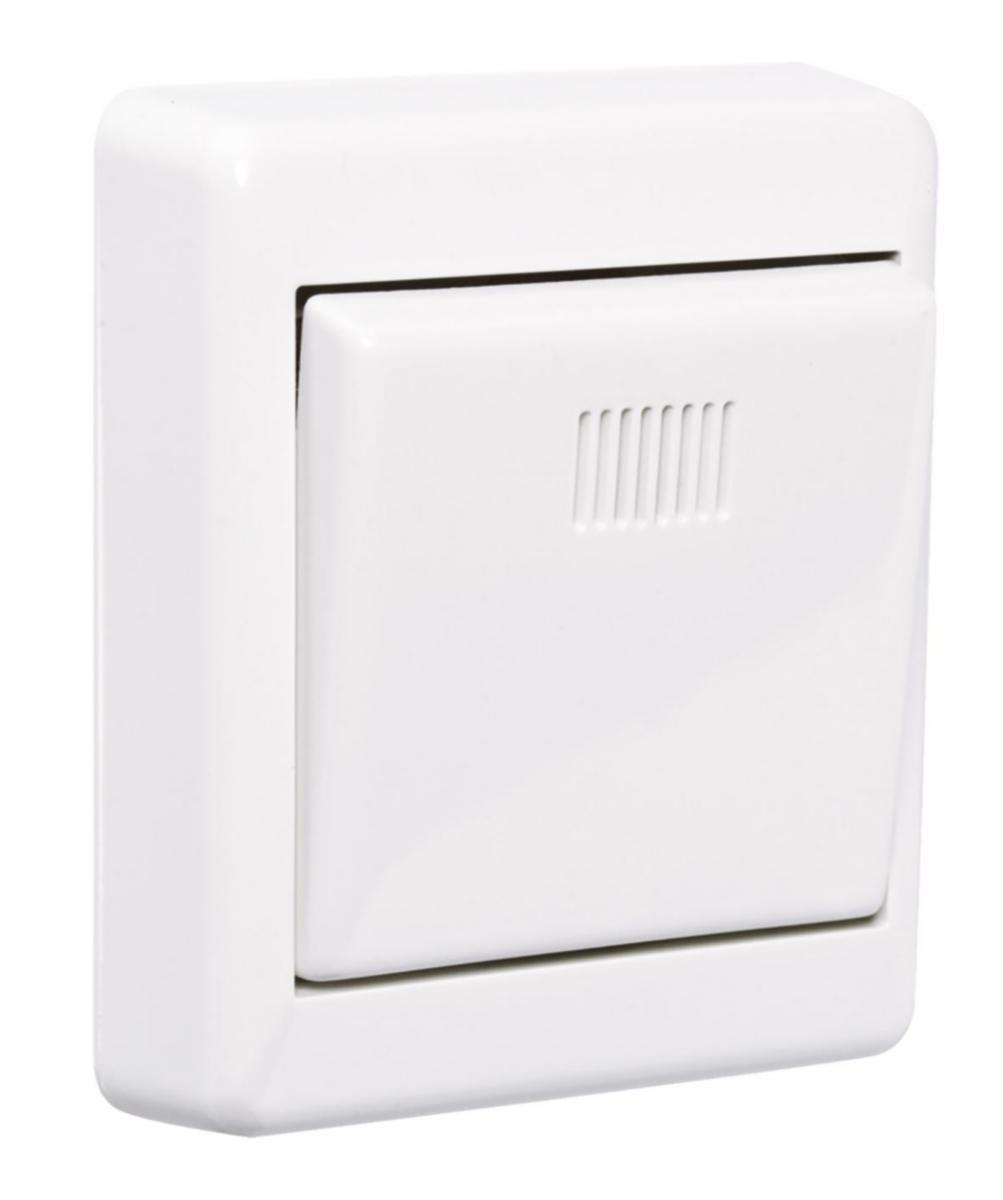

Elko-Qvik control switch for surface mounting, IP21
RS16/1 P SW SURF IMP REL LIGHT EKO07569
Article number: Suppl. article no:
1849402
EKO07569
to see price and stock
Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Fixing screw interval 38 mm. Screw connection of the leads by means of a lift clamp. Cutover 400V.
*Non-replaceable bulb.
If other connections with light are desired, the standard switch is supplemented with a separate rocker switch, transparent mounting frame and bulb, 18 406 70 and 71.
*Non-replaceable bulb.
If other connections with light are desired, the standard switch is supplemented with a separate rocker switch, transparent mounting frame and bulb, 18 406 70 and 71.
- Article number: 1849402
- Suppl. article no: EKO07569
- Ean no: 7020160756909
- Material class QH3400
Technical data
- Packagin Size: 1 ST/5 ST
- Wiring system: Off switch 1-pole
- Method of operation: Rocker/button
- Number of rockers: 1
- Lighting: Yes
- Push button switch: Yes
- Function lighting: Orientation
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9003
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 71 mm
- Device height: 84 mm
- Device depth: 28 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- Type of lighting: Glow lamp
- With mounting plate: Yes
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- REACH Information obligation: No
