Elko

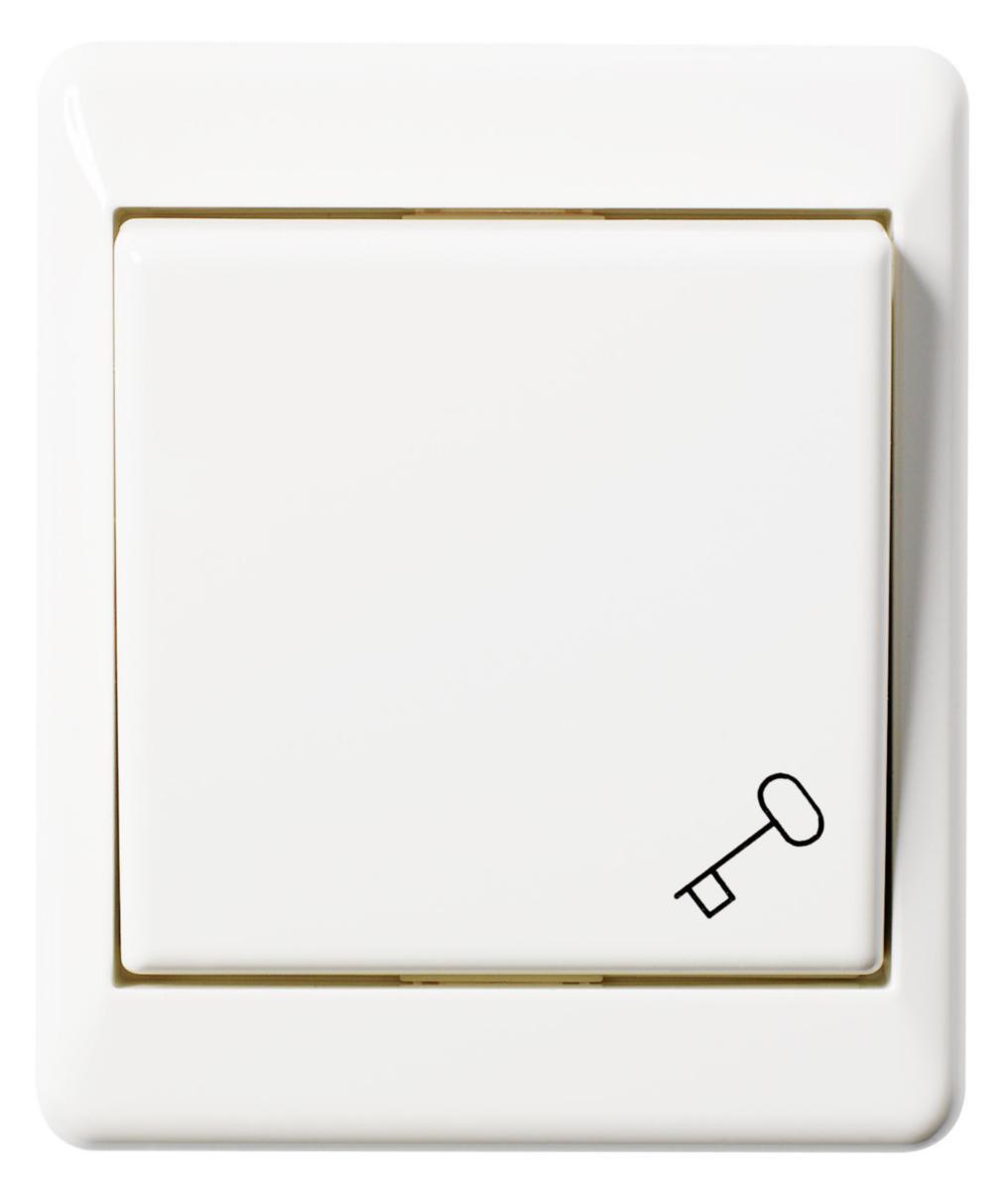

Door opening button, surface mounted, 16A, 250V, IP21
RS16/6 P W SPRING & KEYSYMBOL EKO03692
Article number: Suppl. article no:
1840944
EKO03692
to see price and stock
Rocker switch for door opening is equipped with spring-back rocker with engraved key symbol. Both closing and switching function and the ability for connecting to additional switches. The switch is equipped with full bottom plate and has several alternative fixing holes for fastening. Screw connection of the leads by means of lift clamps.
- Article number: 1840944
- Suppl. article no: EKO03692
- Ean no: 7020160369208
- Material class QH340A
Technical data
- Packagin Size: 1 ST/5 ST
- Type: EKO03692
- Product series: RS
- Wiring system: Other
- Method of operation: Rocker/button
- Number of rockers: 1
- Lighting: No
- Push button switch: Yes
- Colour: White
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9010
- Suitable for degree of protection (IP): IP21
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device width: 71 mm
- Device height: 84 mm
- Device depth: 28 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- With mounting plate: Yes
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- Design: Switch/1-pole.
- Switching clamp: 2
- REACH Information obligation: No
