Schneider Electric

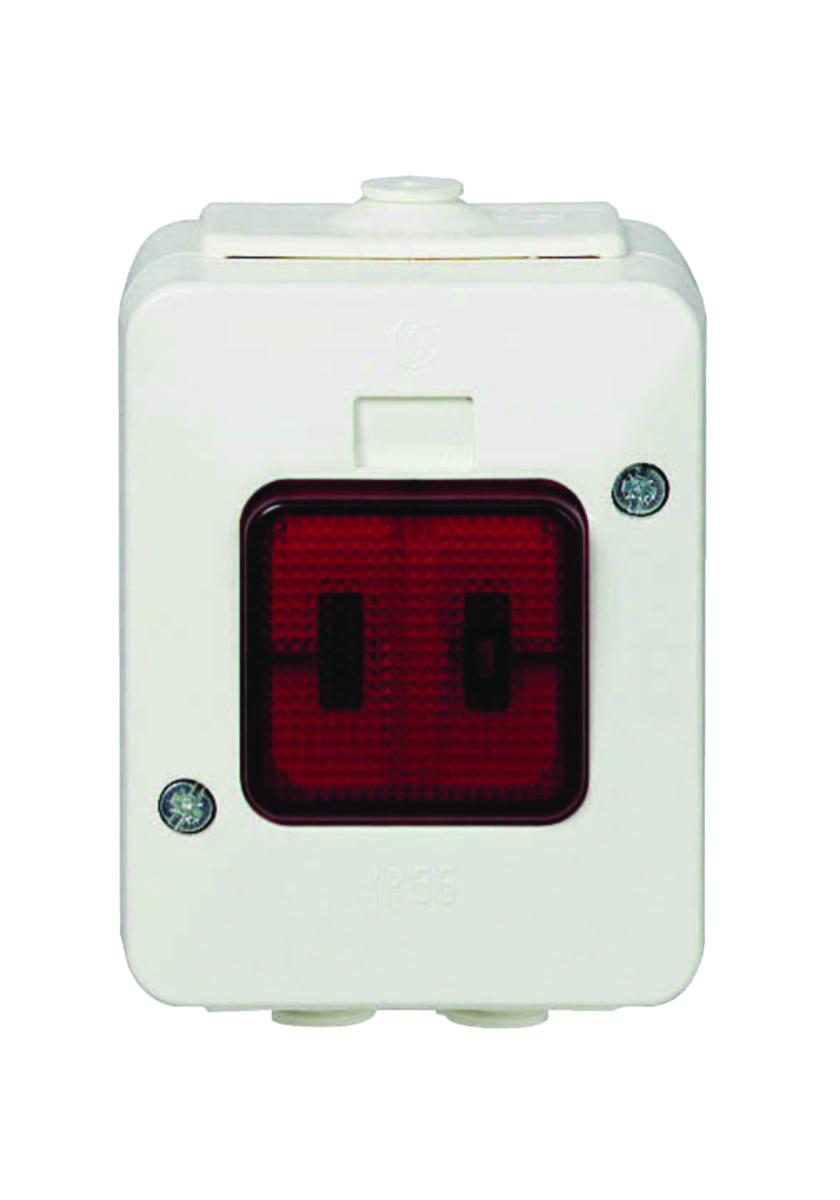

Parallel pushbutton
PARL P-BUTT AQ-S PW
Article number: Suppl. article no:
1835047
183504700
to see price and stock
To shop with us, you need a registered company and a customer number.
Aqua-Strong Parallel push button incl lamp IP44. Approved according to the insurance companies' requirements for installation in agriculture. The plastic has very good properties compared to vegetable oils and ammonia
- Article number: 1835047
- Suppl. article no: 183504700
- Ean no: 6438054015352
- Material class QH070A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: Parallel pushbutton
- Product series: Aqua Stark
- Wiring system: Other
- Lighting: Yes
- Type of lighting: Glow lamp
- Number of rockers: 1
- Device width: 60 mm
- Device depth: 47 mm
- Device height: 75 mm
- Halogen free: Yes
- Function lighting: Orientation
- Label space/information surface: No
- Colour: White
- Switching current for fluorescent lamps: 1 AX
- Suitable for degree of protection (IP): IP44
- Method of operation: Rocker/button
- Material: Plastic
- Material quality: Thermoplastic
- With mounting plate: Yes
- Assembly arrangement: Basic element with complete housing
- Mounting method: Surface mounted
- Nominal voltage: 250 V
- Rated current: 1 A
- RAL-number (similar): 9010
- Push button switch: Yes
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Untreated
- Feedback-signal contact: No
- Built-in depth: 0 mm
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Connection type: Screwed terminal
