Schneider Electric

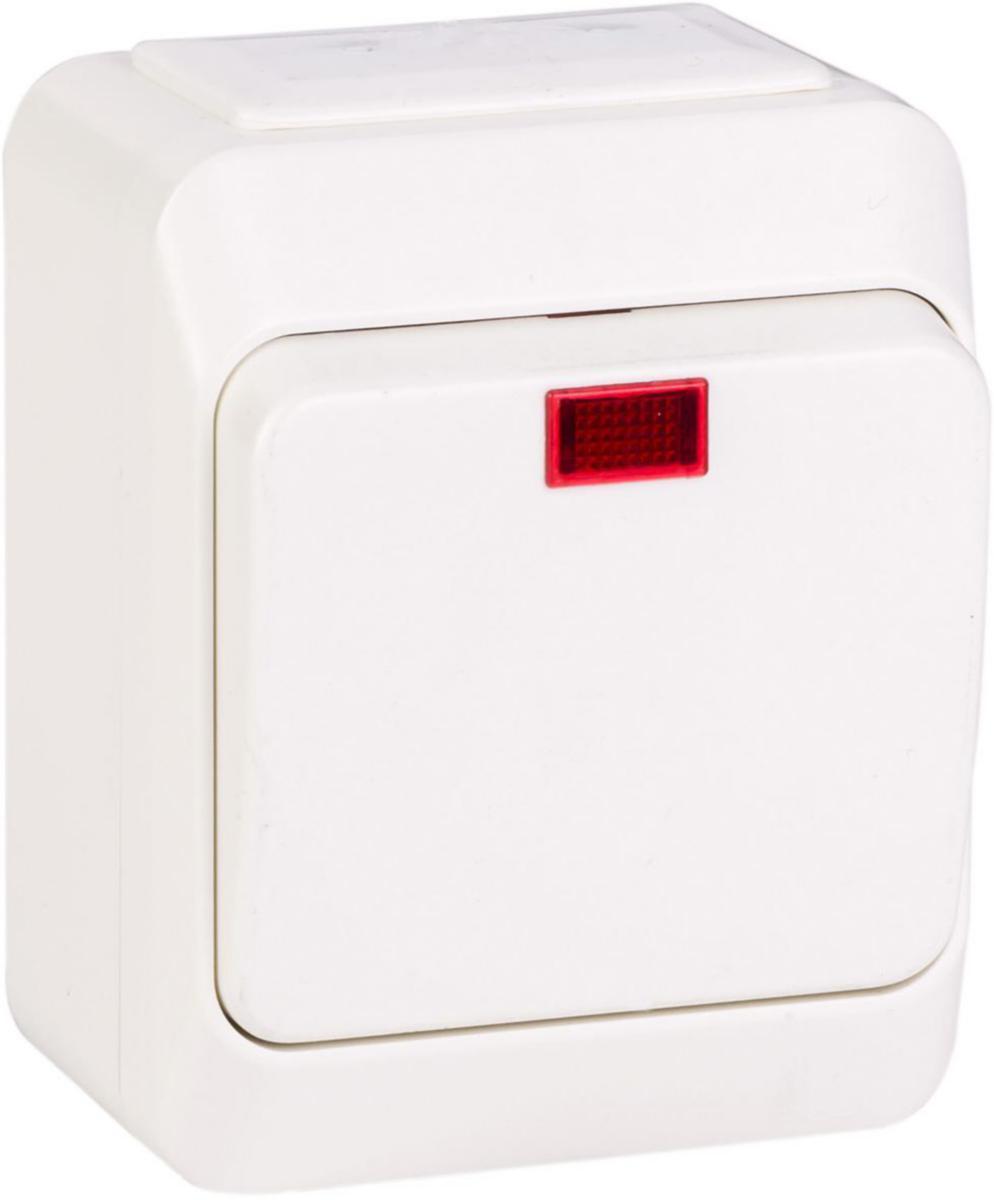

Rocker switch push button with light 16A Aqua Stark
PUSH SW AQ-S W LAMP 16A PW
Article number: Suppl. article no:
1835043
183504300
to see price and stock
To shop with us, you need a registered company and a customer number.
Aqua-Strong Rocker push button incl lamp IP44. Approved according to the insurance companies' requirements for installation in agriculture. The plastic has very good properties compared to vegetable oils and ammonia. Polarvit
- Article number: 1835043
- Suppl. article no: 183504300
- Ean no: 6438054013877
- Material class QH0700
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: Aqua Stark
- Wiring system: Other
- Lighting: Yes
- Type of lighting: Glow lamp
- Number of rockers: 1
- Device width: 60 mm
- Device depth: 47 mm
- Device height: 75 mm
- Halogen free: Yes
- Function lighting: Orientation
- Label space/information surface: No
- Colour: White
- Switching current for fluorescent lamps: 16 AX
- Suitable for degree of protection (IP): IP44
- Method of operation: Rocker/button
- Material: Plastic
- Material quality: Thermoplastic
- With mounting plate: Yes
- Assembly arrangement: Basic element with complete housing
- Mounting method: Surface mounted
- Nominal voltage: 250 V
- Rated current: 16 A
- RAL-number (similar): 9010
- Push button switch: Yes
- Washing machine switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Untreated
- Feedback-signal contact: No
- Built-in depth: 0 mm
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Design: Switch with lamp
- Connection type: Screwed terminal
