Schneider Electric

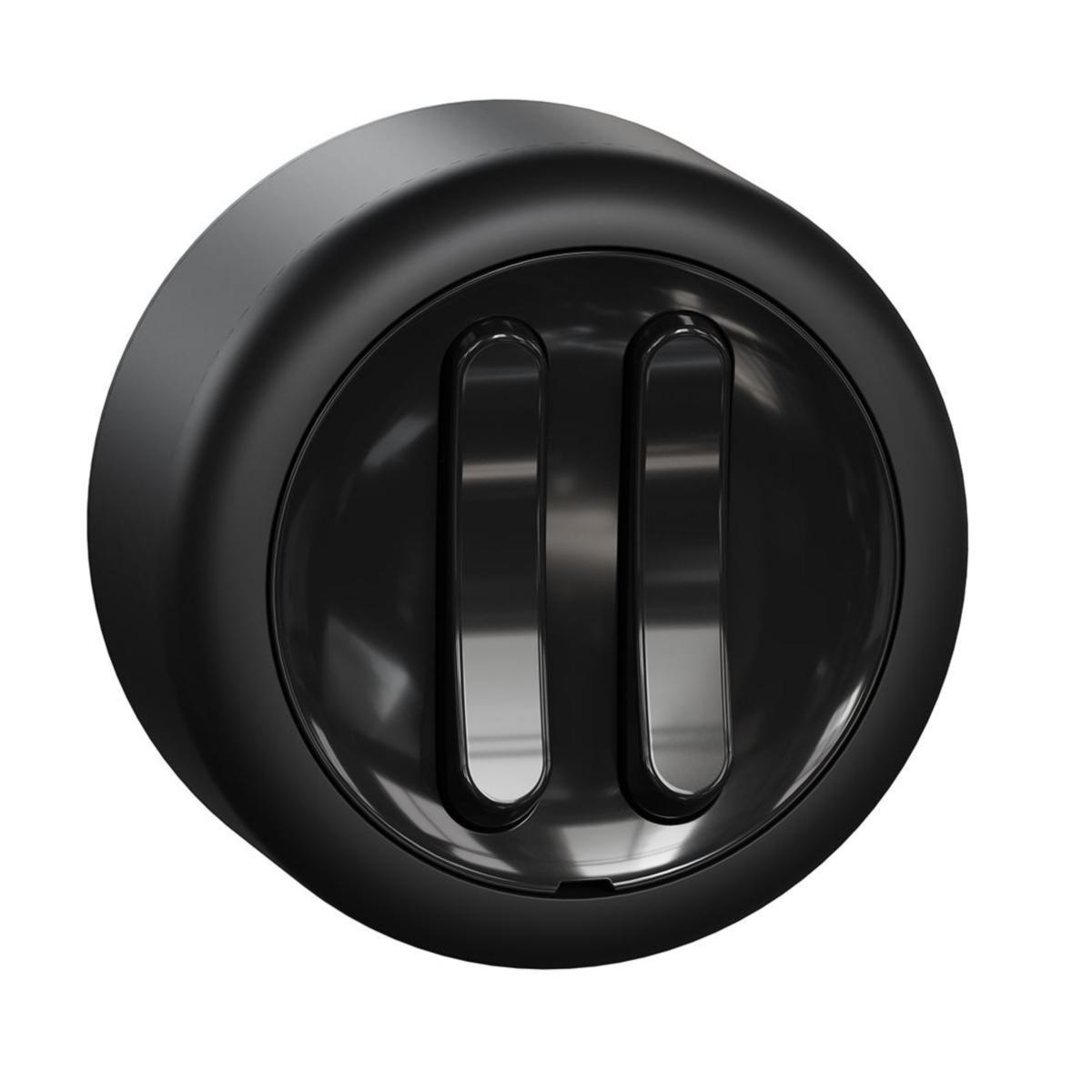

Switch Renova surface-mounted, quick connection.
SWITCH 2X TWO-WAY SCREWLESS WDE015926
Article number: Suppl. article no:
1820347
WDE015926
to see price and stock
Switch with quick connection for surface installation with integrated base plate. 16AX, 250V and with 2 neutral switching terminals. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid. Can easily be equipped with impulse spring
- Article number: 1820347
- Suppl. article no: WDE015926
- Ean no: 3606489504694
- Material class QH110B
Technical data
- Packagin Size: 1 ST/5 ST/5 ST/60 ST
- Product series: Renova
- Wiring system: Two-way/two-way switch
- Method of operation: Rocker/button
- Number of rockers: 2
- Lighting: No
- Push button switch: No
- Colour: Black
- Label space/information surface: No
- Rated current: 16 A
- Switching current for fluorescent lamps: 16 AX
- RAL-number (similar): 9010
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Surface mounted
- Device depth: 27 mm
- Built-in depth: 0 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Washing machine switch: No
- Type of fastening: Other
- Surface finishing: Matt
- Surface protection: Untreated
- Monitoring contact: No
- With mounting plate: Yes
- Connection type: Push-in clamp
- REACH Date: 2019-01-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
