Schneider Electric

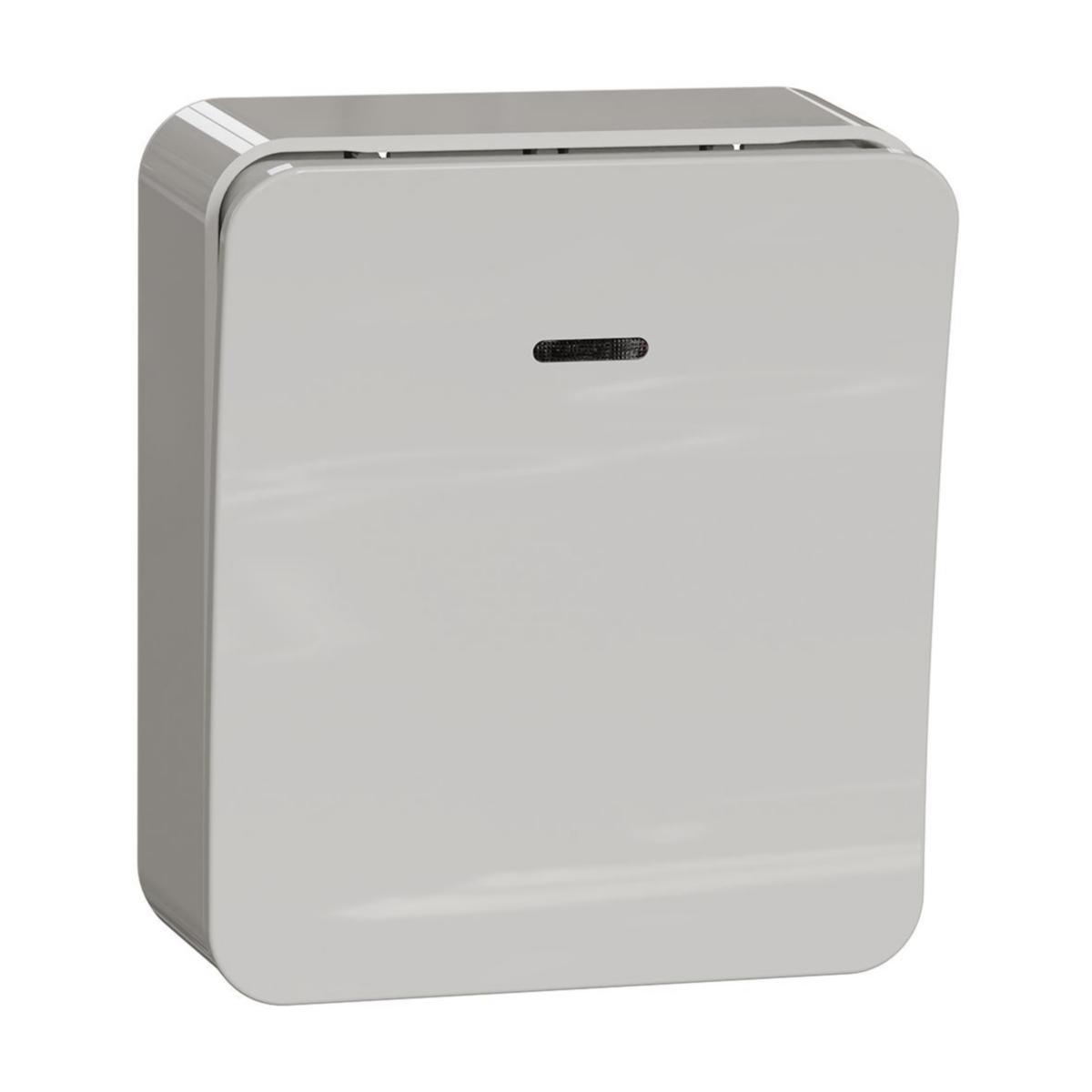

Parallel pushbutton Exxact surface-mounted

PB 2-WAY WITH IND SCREWLESS
Article number:
1820281
Suppl. article no:
WDE015546





 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Parallel push button with red LED for surface installation with integrated base plate. 16AX, 250V and with 2 neutral switching terminals. Quick connection. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. The product is IP20 (even with the cover removed). IP21 when the cable is inserted from below. Possibility of further screw fastening of the lid.
  • Article number:
    1820281
  • Suppl. article no:
    WDE015546
  • Ean no:
    3606489504243
  • Material class
    QH160A
Technical data
  • Packagin Size: 1 ST/5 ST
  • Product series: Exxact
  • Wiring system: Two-way switch
  • Method of operation: Rocker/button
  • Number of rockers: 1
  • Lighting: No
  • Push button switch: Yes
  • Function lighting: Illuminated (on)
  • Colour: White
  • Label space/information surface: No
  • Rated current: 16 A
  • Switching current for fluorescent lamps: 16 AX
  • RAL-number (similar): 9003
  • Suitable for degree of protection (IP): IP20
  • Material: Plastic
  • Material quality: Thermoplastic
  • Halogen free: Yes
  • Mounting method: Surface mounted
  • Device width: 65 mm
  • Device height: 75 mm
  • Device depth: 27 mm
  • Built-in depth: 0 mm
  • Assembly arrangement: Basic element with complete housing
  • Nominal voltage: 250 V
  • Washing machine switch: No
  • Type of fastening: Screw mounting
  • Surface finishing: Glossy
  • Surface protection: Untreated
  • Feedback-signal contact: No
  • Type of lighting: LED exchangeable
  • With mounting plate: Yes
  • Connection type: Push-in clamp
  • REACH contains candidate substances: Bly
  • REACH Date: 2019-01-01
  • REACH Information obligation: Yes
