Switch Plus Oceanplastic screw
Plus Switch "Q" 2 bl EKO30005 OCEAN PLASTIC
Article number: Suppl. article no:
1849506
EKO30005
to see price and stock

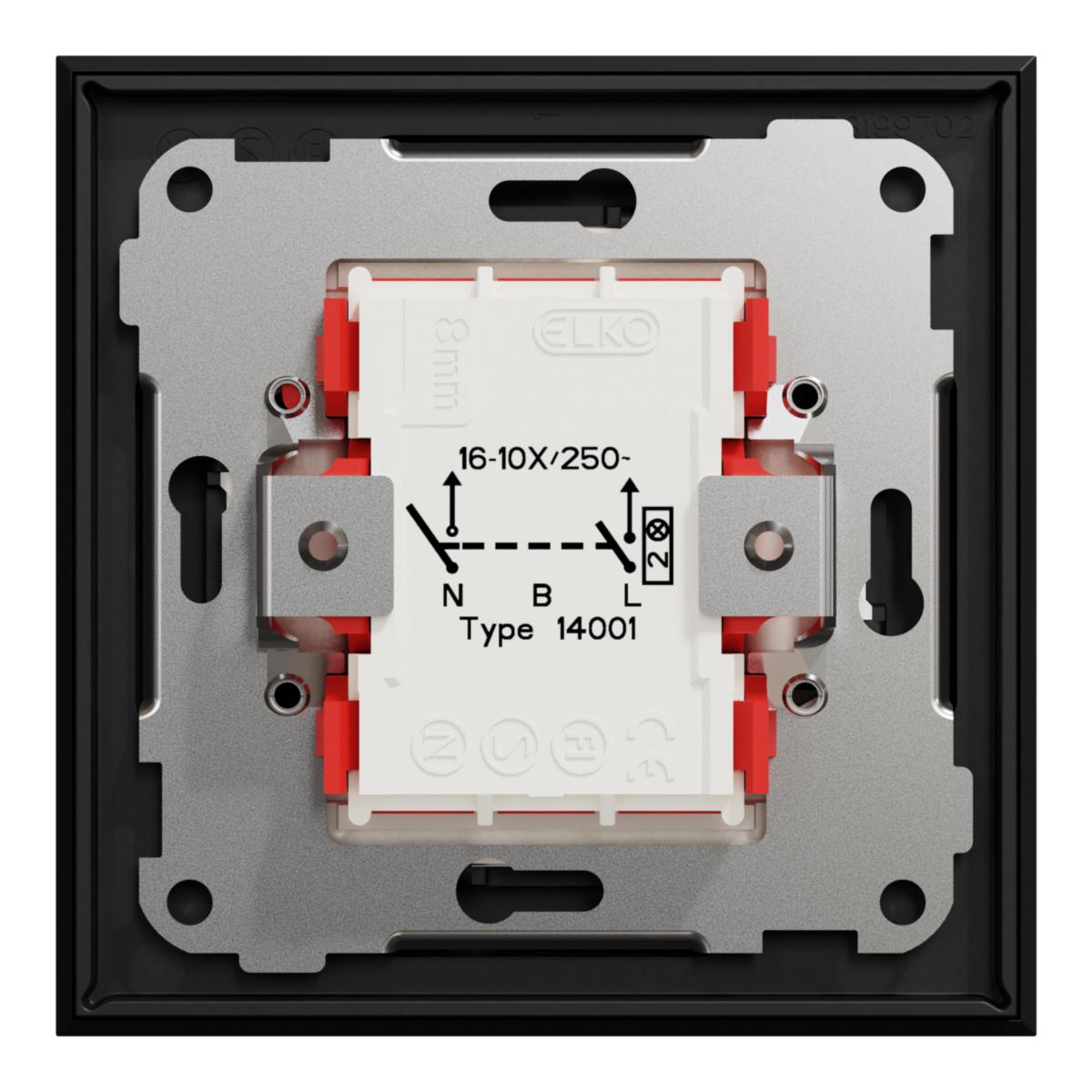

ELKO is the first in the industry to produce switches, sockets and frames in marine plastic. Initially, the rods in the design series ELKO Plus in the color black are available in marine plastic. Pressure rocker switch with base, rocker and frame of halogen-free thermoplastic. Pressurized cover frame and rocker are standard. The cover frame can also be attached with a screw. Mounting screw distance, 60 mm. Screw connection of the conductors with elevator clamp. Can be equipped with impulse spring E18 405 96 for pushbutton function. Switchover 400V. Also intended for combination mounting. Mounting depth 11.5mm.
- Article number: 1849506
- Suppl. article no: EKO30005
- Ean no: 7020160300058
- Material class QH3800
- This is an alternative to item 1848406
Technical data
- Packagin Size: 1 PCS/5 PCS/50 PCS
- Product series: Elko Plus, OceanPlastic
- Wiring system: Switch 2-pole
- Method of operation: Rocker/button
- Number of rockers: 1
- Colour: Black
- RAL-number (similar): 9005
- Lighting: No
- Connection type: Screwed terminal
- Rated current: 16 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 28.5 mm
- Built-in depth: 21 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Lacquered
- Monitoring contact: No
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2021-10-20
- REACH Information obligation: No
