Elko

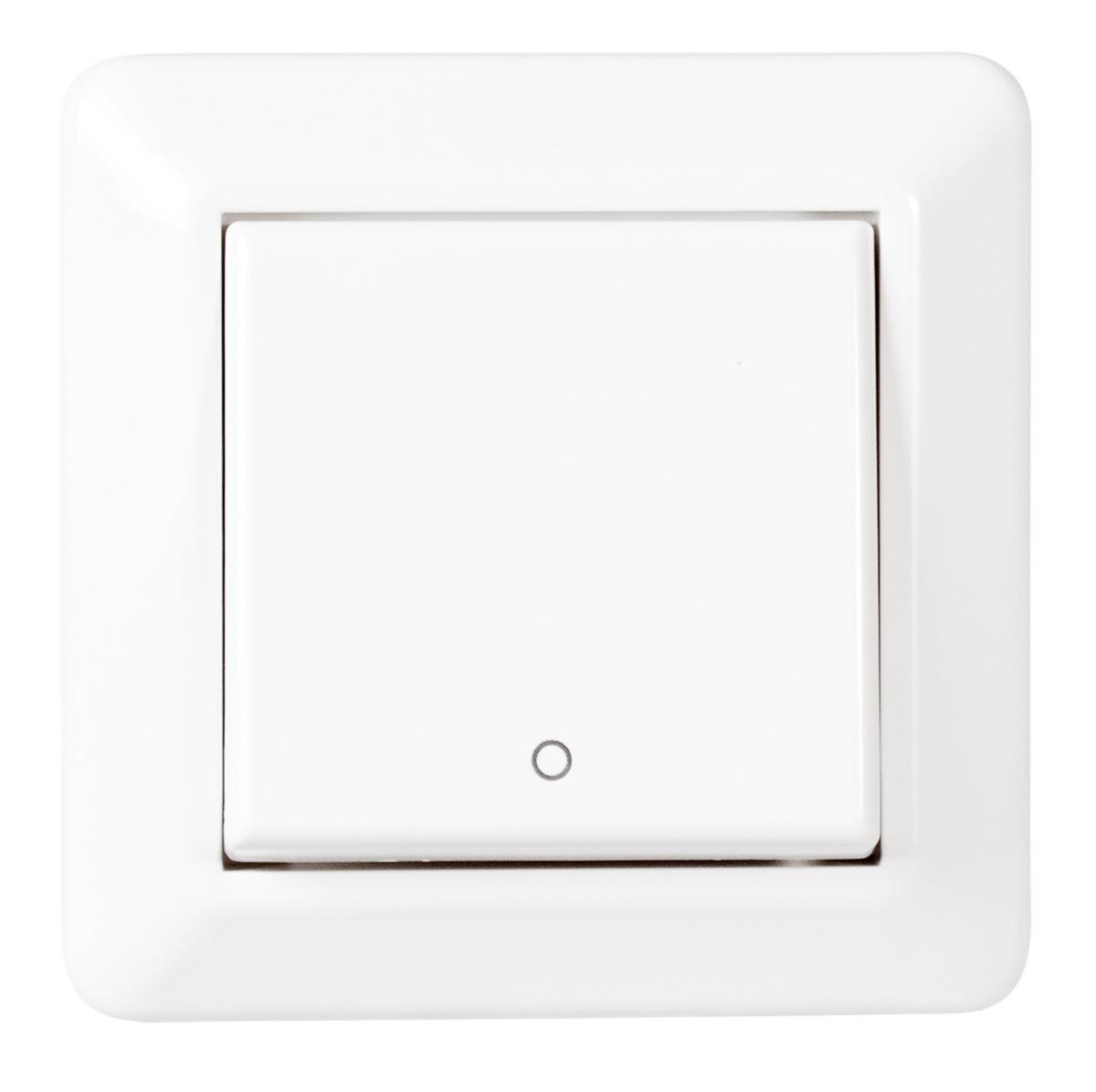

Switch, Elko RS, quick coupling without prongs
H16/2 I SWITCH FLUSH PW EKO07349
Article number: Suppl. article no:
1848706
EKO07349
to see price and stock
Quick connection. Rocker switch without chlorine with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm.
Also intended for combination mounting. IP21 when mounted in elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
Also intended for combination mounting. IP21 when mounted in elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
- Article number: 1848706
- Suppl. article no: EKO07349
- Ean no: 7020160734907
- Material class QH3301
Technical data
- Packagin Size: 1 ST/5 ST/5 ST
- Wiring system: 2-pole switch
- Method of operation: Rocker/button
- Number of rockers: 1
- Colour: White
- RAL-number (similar): 9003
- Lighting: No
- Connection type: Push-in clamp
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 38 mm
- Built-in depth: 21 mm
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Monitoring contact: No
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
