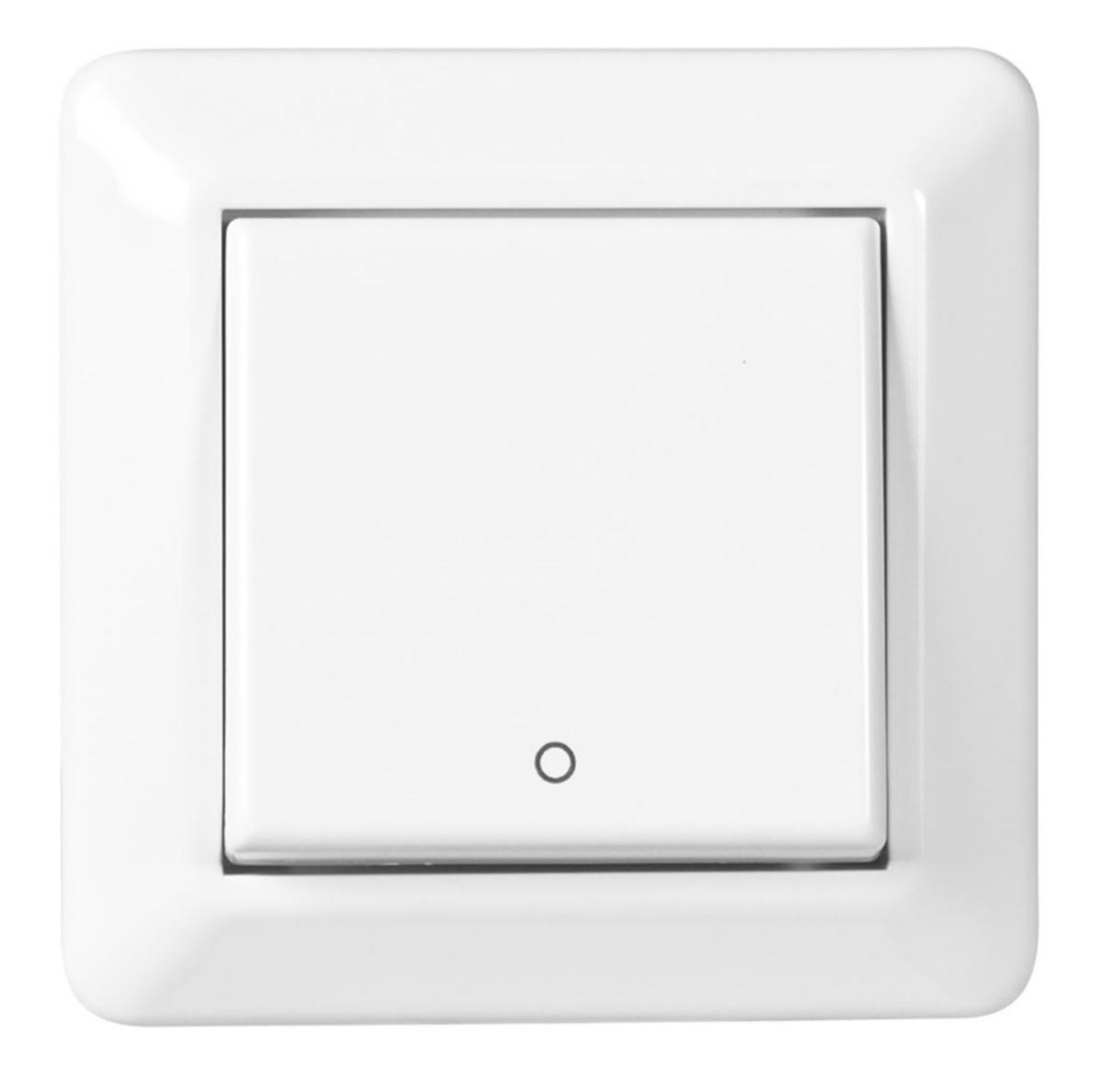

RS16/2 IS SWITCH FLUSH PW EKO30101
Article number: Suppl. article no:
1848606
EKO30101
to see price and stock
Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm.
Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination assembly. Assembly depth 11.5mm. IP21 with mounting on elevation frame.
With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44. Does not apply to 1840637
* Can also be provided with light.
** Cannot be used for IP21 or IP44
Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination assembly. Assembly depth 11.5mm. IP21 with mounting on elevation frame.
With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44. Does not apply to 1840637
* Can also be provided with light.
** Cannot be used for IP21 or IP44
- Article number: 1848606
- Suppl. article no: EKO30101
- Ean no: 7020161301016
- Material class QH3300
Technical data
- Packagin Size: 1 ST/5 ST
- Wiring system: 2-pole switch
- Method of operation: Rocker/button
- Number of rockers: 1
- Colour: White
- RAL-number (similar): 9003
- Lighting: No
- Connection type: Screwed terminal
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 22 mm
- Built-in depth: 11.5 mm
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
