Elko
Hotel circuit breaker/Cover
PLUS1/2/6 I SWITCHHOTELCARD BL
Article number: Suppl. article no:
1848459
EKO04628
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)

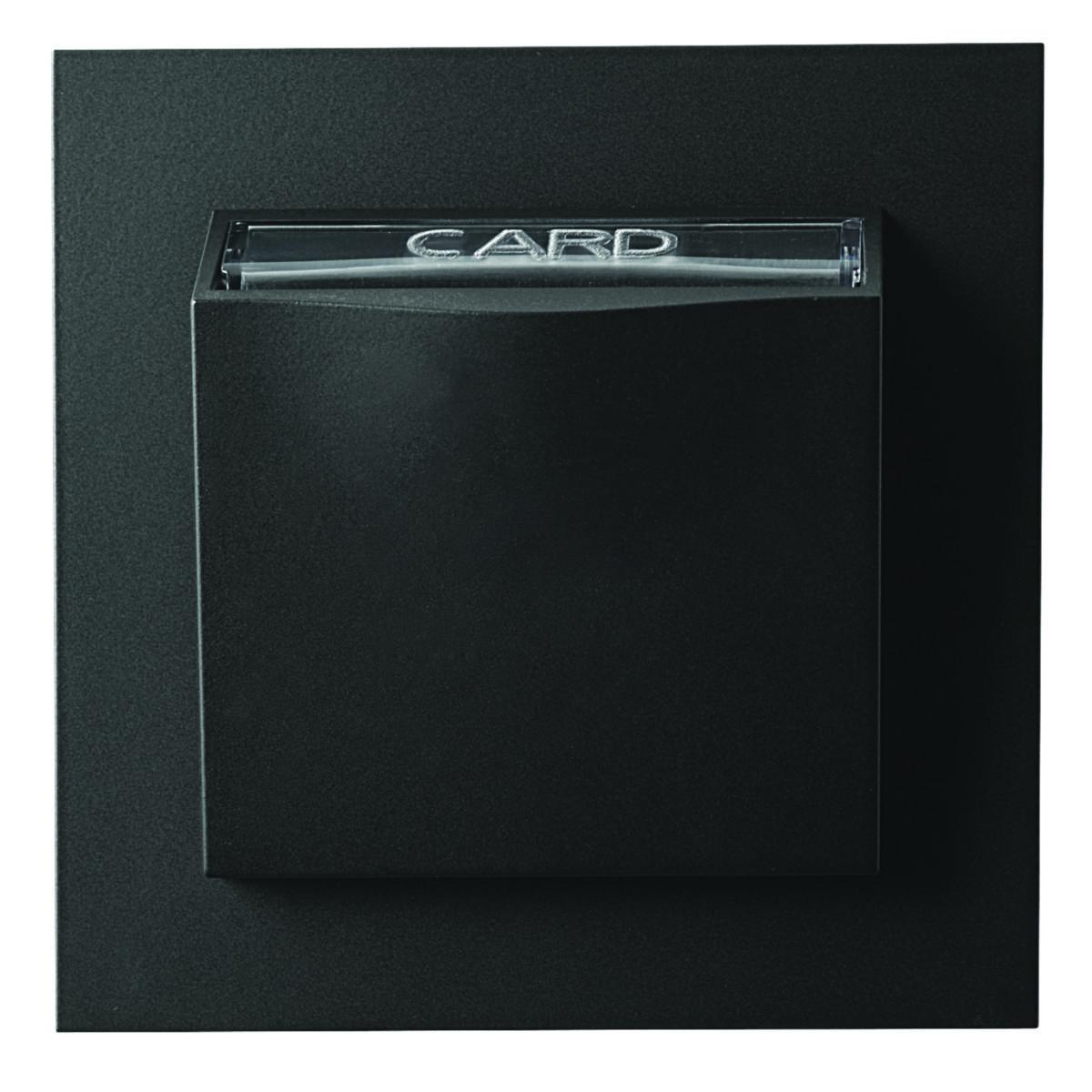

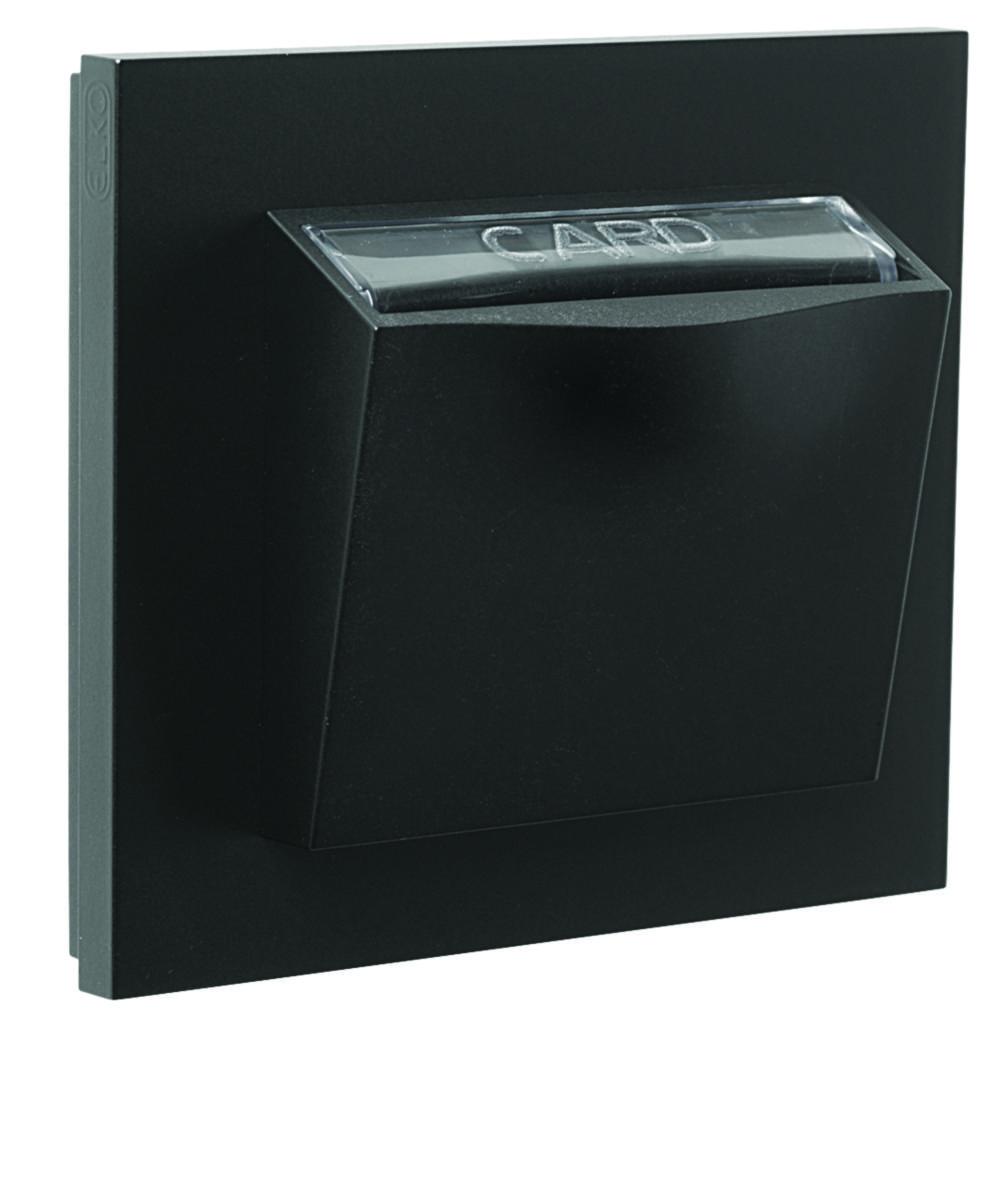

Key card switch, "ELKO Plus" for recessed mounting
Key card switch for recessed mounting. Frame and centre plate of halogen free thermoplastic. Screw connection for connectors. Designed for combined installation or an outside surface mounting with an extension frame 20 mm. 1 and 2-pin connector is possible. Alternating contact for indication. Key card with max. width 54 mm can be used. Assembly depth 11.5 mm.
Key card switch for recessed mounting. Frame and centre plate of halogen free thermoplastic. Screw connection for connectors. Designed for combined installation or an outside surface mounting with an extension frame 20 mm. 1 and 2-pin connector is possible. Alternating contact for indication. Key card with max. width 54 mm can be used. Assembly depth 11.5 mm.
- Article number: 1848459
- Suppl. article no: EKO04628
- Ean no: 7020160462800
- Material class QH380A
Technical data
- Packagin Size: 1 ST/5 ST
- Type: 4628
- Product series: Elko Plus
- Wiring system: 2-pole switch
- Method of operation: Hotel card
- Number of rockers: 0
- Lighting: Yes
- Function lighting: Orientation
- Colour: Black
- Connection type: Screwed terminal
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9005
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 30 mm
- Built-in depth: 11.5 mm
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Lacquered
- Feedback-signal contact: No
- Number of modules (module system): 0
- Type of lighting: LED exchangeable
- With mounting plate: Yes
- REACH Date: 2022-08-09
- REACH Information obligation: No
- Colour: Black
