Elko

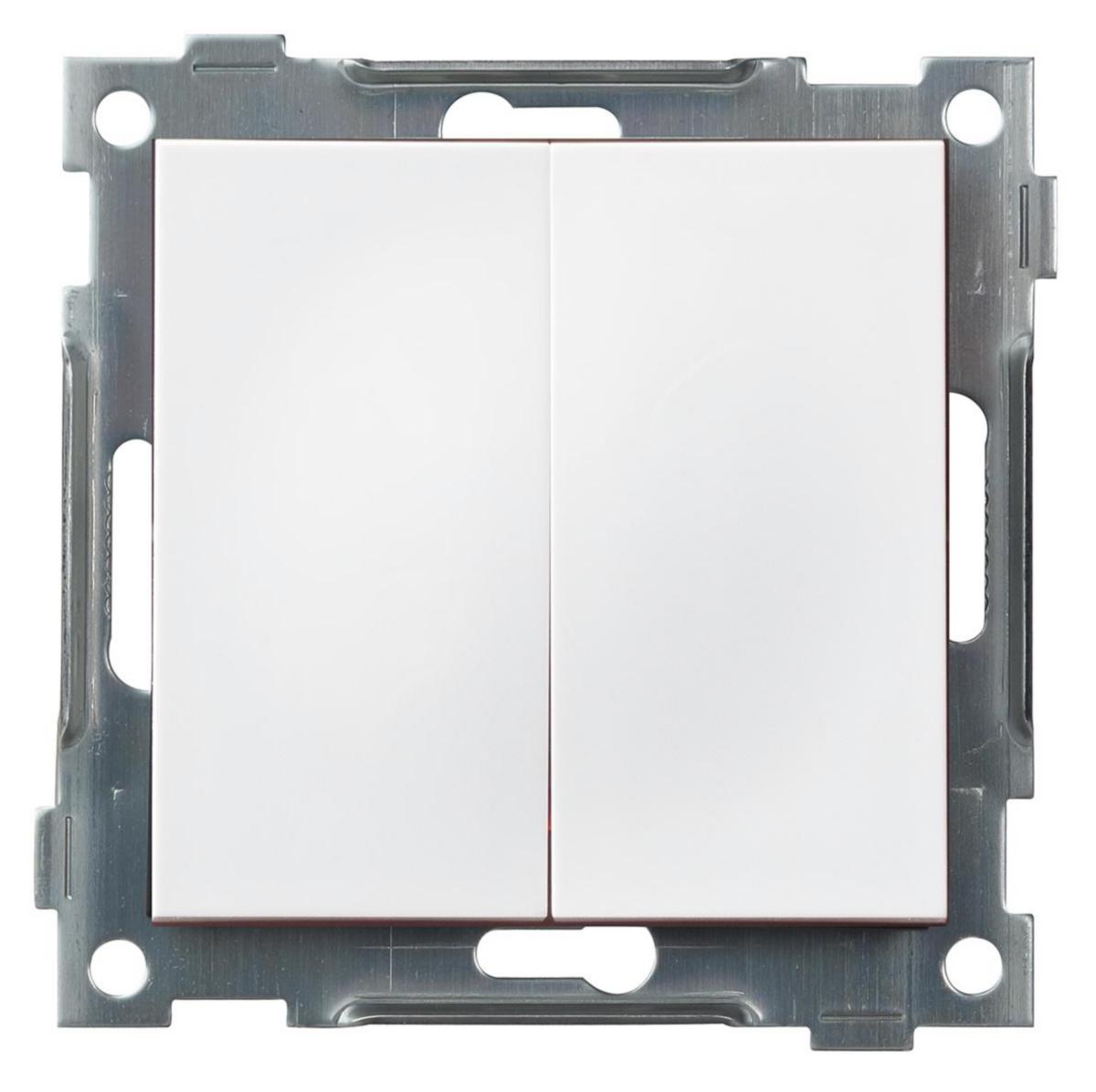

Switch, Elko plus, quick connection without frame.

PLUS SWITCH WITHOUT FRAME PW EKO03928
Article number:
1848117
Suppl. article no:
EKO03928





 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
Push-button rocker switch with base, rocker made of halogen-free thermoplastic. Press-on cover frame is ordered separately. Fixing screw distance, 60mm. Quick connection of the conductors. Also intended for combination assembly. Delivered without mounting claws.
  • Article number:
    1848117
  • Suppl. article no:
    EKO03928
  • Ean no:
    7020160392800
  • Material class
    QH3800
Technical data
  • Packagin Size: 1 ST/5 ST/50 ST
  • Product series: Elko Plus
  • Wiring system: Series switch
  • Method of operation: Rocker/button
  • Number of rockers: 2
  • Colour: White
  • RAL-number (similar): 9010
  • Lighting: No
  • Connection type: Push-in clamp
  • Rated current: 16 A
  • Suitable for degree of protection (IP): IP20
  • Material: Plastic
  • Material quality: Thermoplastic
  • Halogen free: Yes
  • Mounting method: Flush-mounted
  • Device width: 74 mm
  • Device height: 74 mm
  • Device depth: 38 mm
  • Built-in depth: 21 mm
  • Switching current for fluorescent lamps: 10 AX
  • Assembly arrangement: Basic element with central cover plate
  • Nominal voltage: 250 V
  • Washing machine switch: No
  • Push button switch: No
  • Type of fastening: Screw mounting
  • Surface finishing: Glossy
  • Surface protection: Untreated
  • Monitoring contact: No
  • Number of modules (module system): 0
  • With mounting plate: Yes
  • Label space/information surface: No
  • REACH Date: 2022-08-09
  • Design: Crown
  • Switching clamp: 2
  • REACH Information obligation: No
