Elko

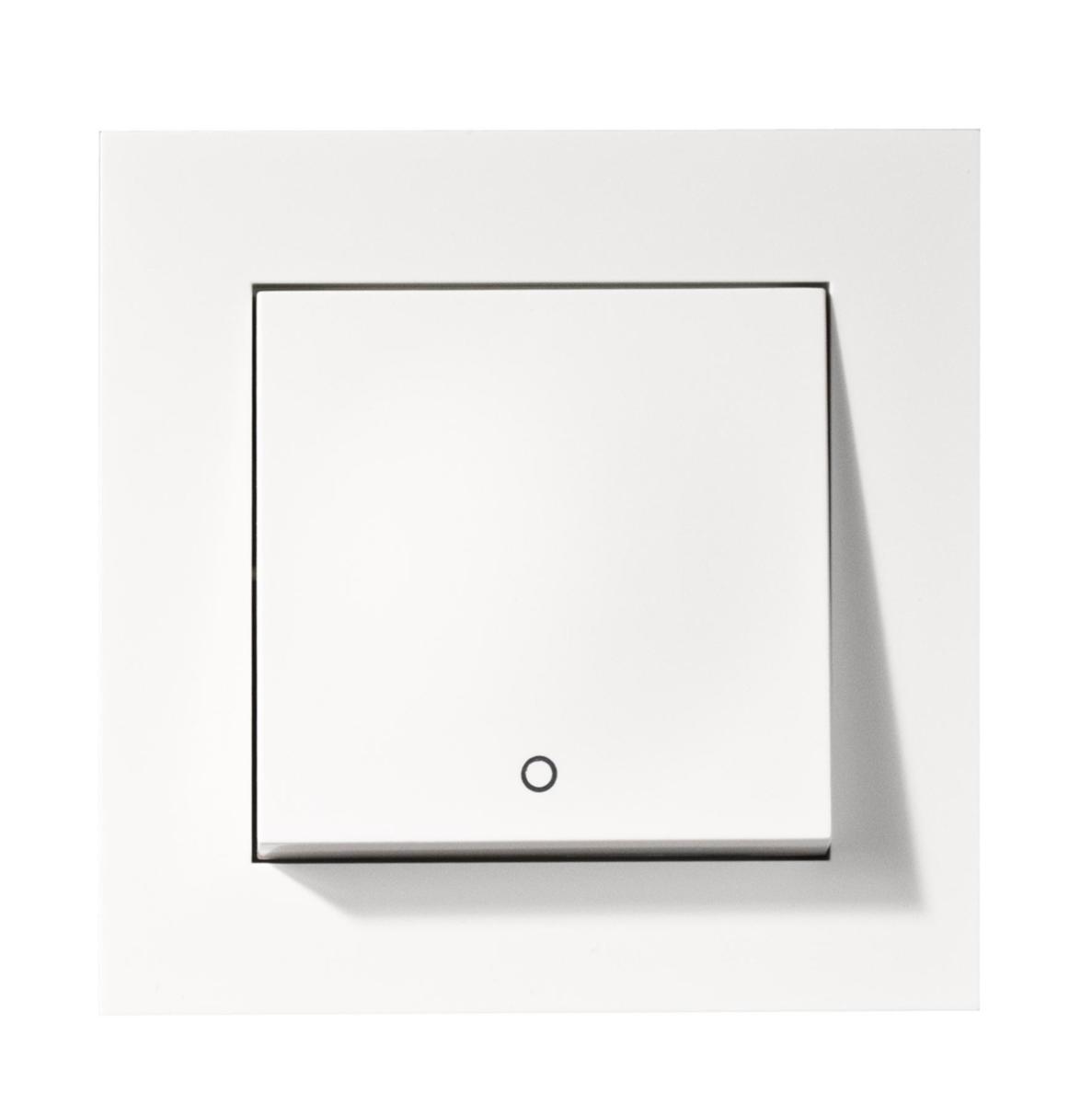

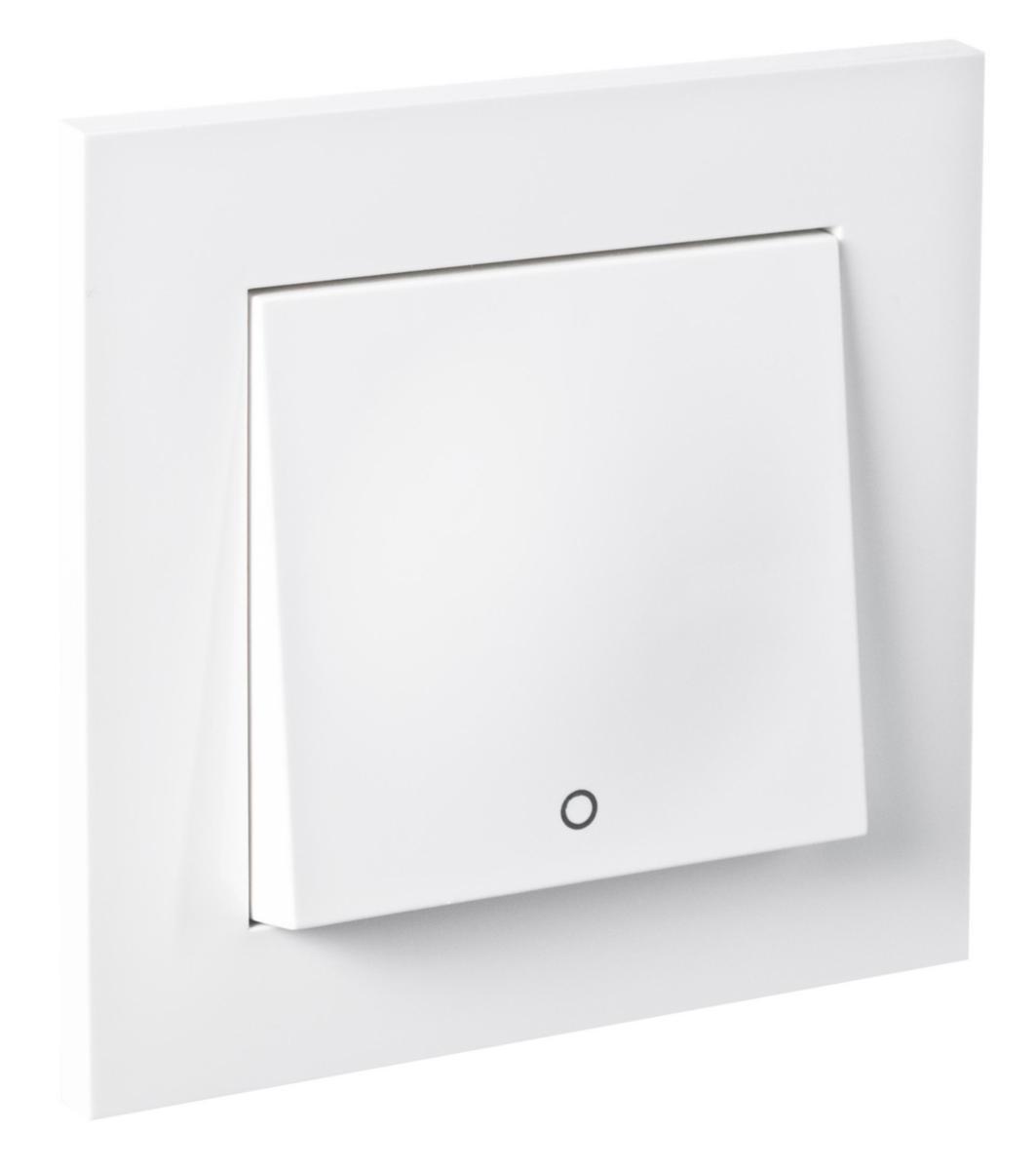

Switch, Elko plus Fjällvit, quick connection without claws
PLUS SWITCH "Q"2 PW
Article number: Suppl. article no:
1848106
EKO03883
to see price and stock
To shop with us, you need a registered company and a customer number.
Push-button rocker switch with base, rocker and frame made of halogen-free thermoplastic. Press-on cover frame and rocker are standard. The cover frame can also be attached with screws. Fixing screw distance, 60mm. Quick connection of the conductors. Also intended for combination assembly. Delivered without mounting claws.
- Article number: 1848106
- Suppl. article no: EKO03883
- Ean no: 7020160388308
- Material class QH380A
Technical data
- Packagin Size: 1 ST/5 ST/50 ST/2000 ST
- Product series: Elko Plus
- Wiring system: 2-pole switch
- Method of operation: Rocker/button
- Number of rockers: 1
- Lighting: No
- Colour: White
- Connection type: Push-in clamp
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- RAL-number (similar): 9010
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 86 mm
- Device height: 86 mm
- Device depth: 38 mm
- Built-in depth: 21 mm
- Assembly arrangement: Basic element with full cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Surface protection: Untreated
- Feedback-signal contact: No
- With mounting plate: Yes
- Label space/information surface: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
- Design: 2-pole.*
- Switching clamp: 1
