Elko

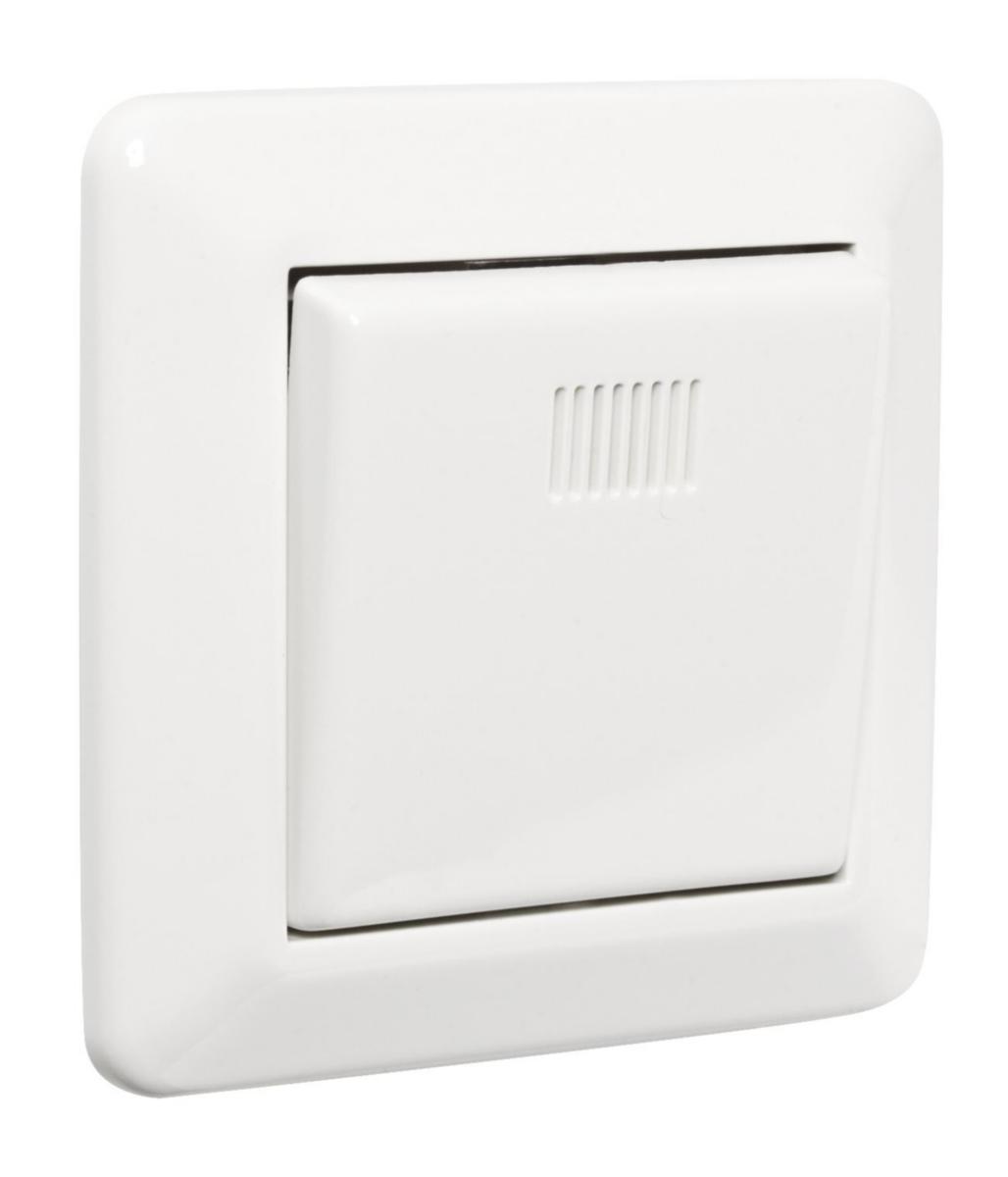

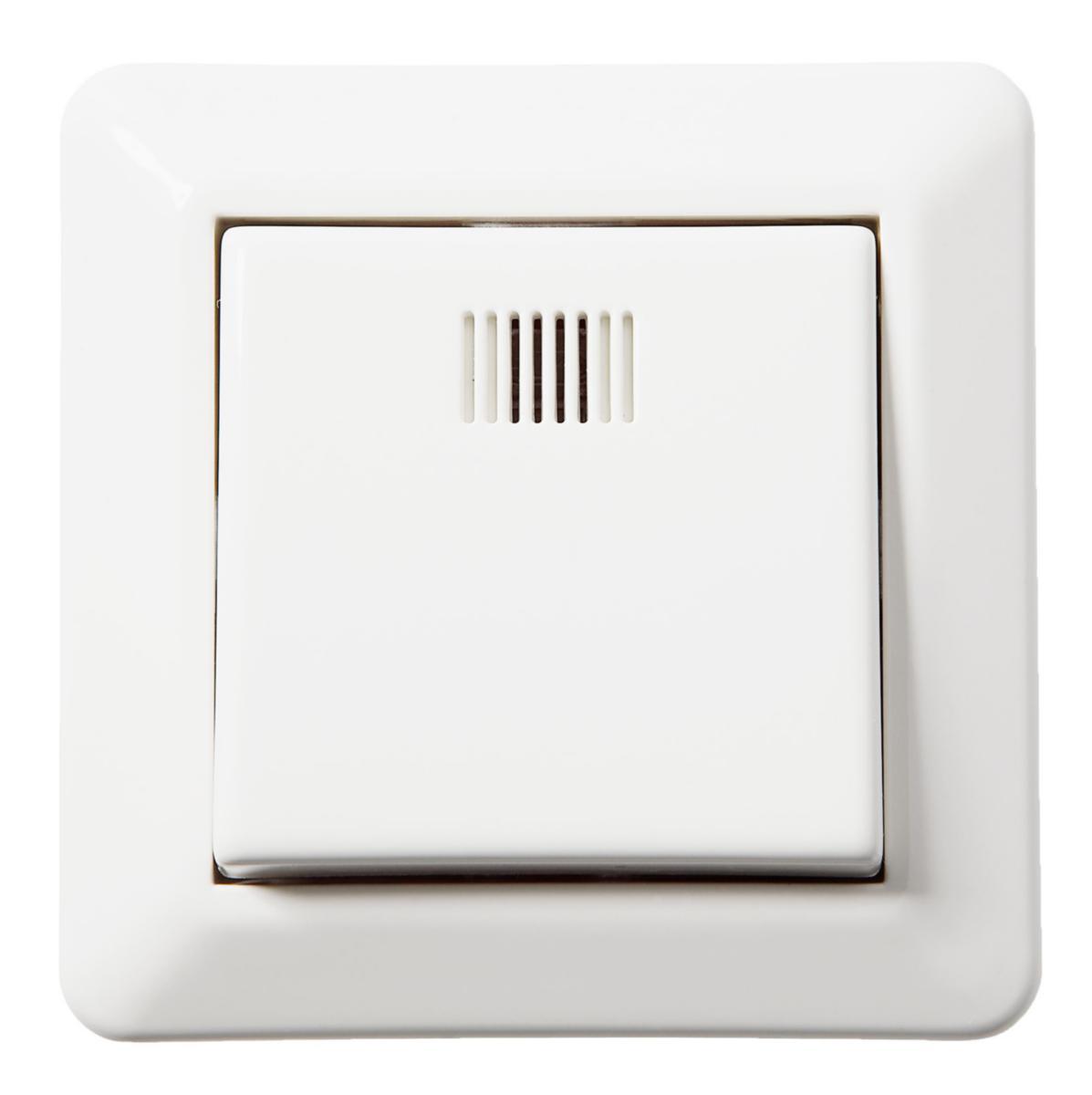

Push buttons Elko RS

RS16/1 IS IMP REL LIGHT "S" PW EKO03675
Article number:
1840668
Suppl. article no:
EKO03675





 to see price and stock
Produkten är miljöbedömd av SundaHus
Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm. Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination mounting. IP21 when mounted in elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44.
  • Article number:
    1840668
  • Suppl. article no:
    EKO03675
  • Ean no:
    7020160367501
  • Material class
    QH3200
Technical data
  • Packagin Size: 1 ST/10 ST
  • Type: EKO03675
  • Product series: RS
  • Wiring system: Other
  • Method of operation: Rocker/button
  • Number of rockers: 1
  • Colour: White
  • RAL-number (similar): 9010
  • Lighting: Yes
  • Function lighting: Orientation
  • Connection type: Screwed terminal
  • Rated current: 16 A
  • Switching current for fluorescent lamps: 10 AX
  • Suitable for degree of protection (IP): IP20
  • Material: Plastic
  • Material quality: Thermoplastic
  • Halogen free: Yes
  • Mounting method: Flush-mounted
  • Device width: 84 mm
  • Device height: 84 mm
  • Device depth: 28.5 mm
  • Built-in depth: 11.5 mm
  • Assembly arrangement: Basic element with full cover plate
  • Nominal voltage: 250 V
  • Washing machine switch: No
  • Push button switch: Yes
  • Type of fastening: Mounting with claw and screw
  • Surface finishing: Glossy
  • Surface protection: Untreated
  • Monitoring contact: No
  • Number of modules (module system): 0
  • Type of lighting: Glow lamp
  • With mounting plate: Yes
  • Label space/information surface: No
  • REACH Date: 2022-08-09
  • REACH Information obligation: No
