Elko

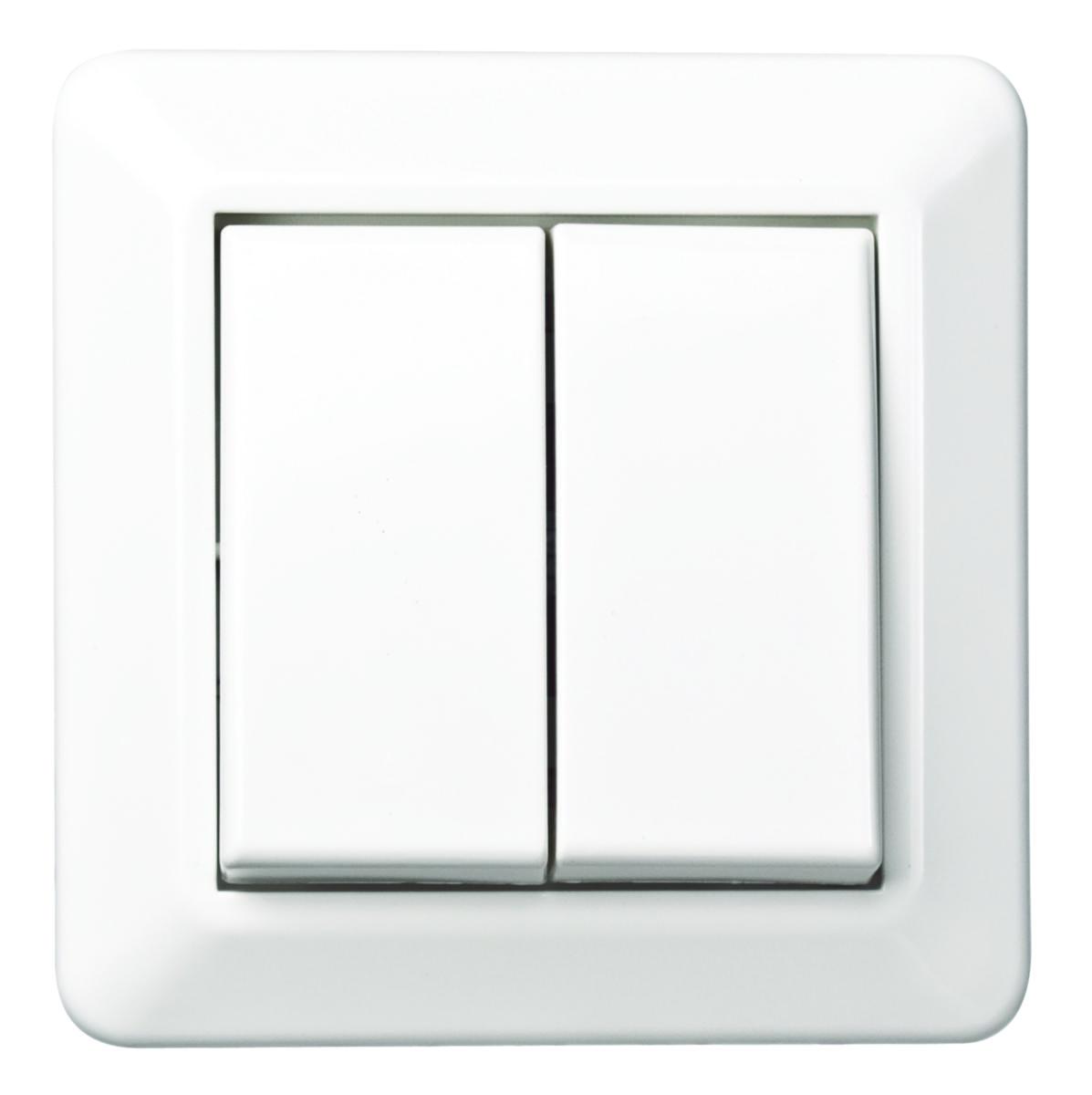

Switch, Elko RS, screw coupling
RS16/5 IS SWITCH FLUSH "S" PW
Article number: Suppl. article no:
1840616
EKO03680
to see price and stock
To shop with us, you need a registered company and a customer number.
Rocker switch with base, rocker and frame of halogen-free thermoplast. Pressure-fixed cover frame and rocker are standard. Pressure frames can also be secured with screws. Fixing screw interval 60 mm.
Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination assembly. Assembly depth 11.5mm. IP21 with mounting on elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44. Does not apply to 1840636.
Screw connection of the leads by means of a lift clamp. Cutover 400V. Also intended for combination assembly. Assembly depth 11.5mm. IP21 with mounting on elevation frame. With recessed mounting can be fitted with sealing gasket and frame, 18 405 81 or 82 to achieve Enclosure Class IP44. Does not apply to 1840636.
- Article number: 1840616
- Suppl. article no: EKO03680
- Ean no: 7020160368003
- Material class QH3201
Technical data
- Packagin Size: 1 ST/5 ST
- Type: EKO03680
- Product series: RS
- Wiring system: Series switch
- Method of operation: Rocker/button
- Number of rockers: 2
- Colour: White
- RAL-number (similar): 9010
- Rated current: 16 A
- Switching current for fluorescent lamps: 10 AX
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 84 mm
- Device height: 84 mm
- Device depth: 11.5 mm
- Assembly arrangement: Basic element with complete housing
- Nominal voltage: 250 V
- Type of fastening: Mounting with claw and screw
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- REACH Information obligation: No
