Schneider Electric
Switch inserts 16A, Robust

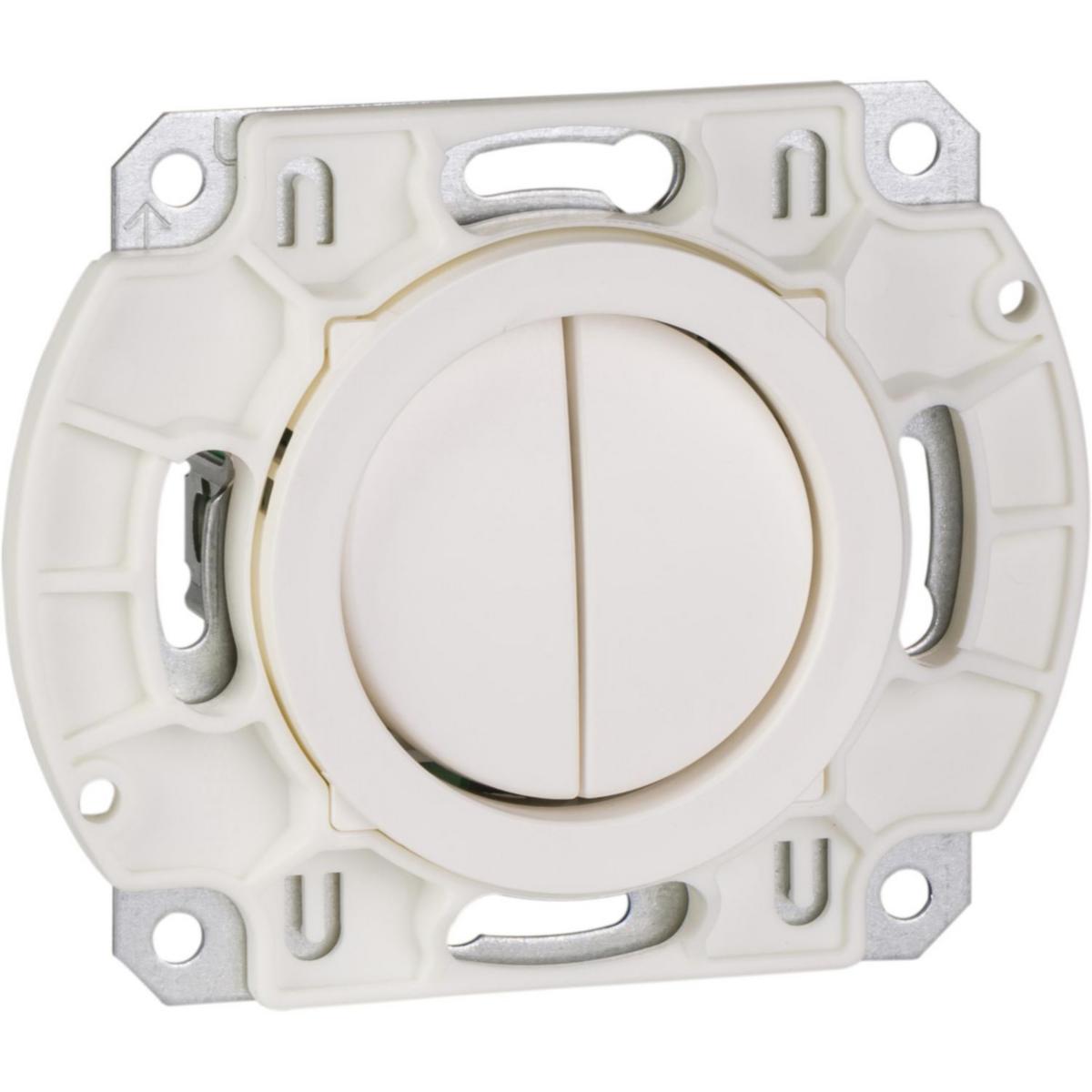

ROBUST 2-CIRCUIT SWITCH (5) 183261600
Article number: Suppl. article no:
1832616
WDE000931
to see price and stock
To shop with us, you need a registered company and a customer number.
For recessed IP20- mounting in apparatus box c/c 60 mm. The current switches are two neutral transfer clamps (not d stair). Can be supplemented with a glow lamp incl holder E18 305 26. The insert will be supplemented with an optional frame E18 326 34 or E18 326 37. Impact resistance IK09 according to standard IEC 62262.
- Article number: 1832616
- Suppl. article no: WDE000931
- Ean no: 3606480975547
- Material class QH190B
Technical data
- Packagin Size: 1 ST/5 ST/60 ST
- Product series: Robust
- Wiring system: Series switch
- Method of operation: Rocker/button
- Number of rockers: 2
- Lighting: Optional
- Function lighting: Orientation
- Colour: White
- RAL-number (similar): 9010
- Rated current: 16 A
- Switching current for fluorescent lamps: 0 AX
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 88 mm
- Device height: 71 mm
- Device depth: 31 mm
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Screw mounting
- Surface finishing: Matt
- Surface protection: Untreated
- Feedback-signal contact: No
- Type of lighting: LED exchangeable
- With mounting plate: No
- Label space/information surface: No
- Number of modules (module system): 0
- Built-in depth: 15 mm
- Connection type: Push-in clamp
