Schneider Electric

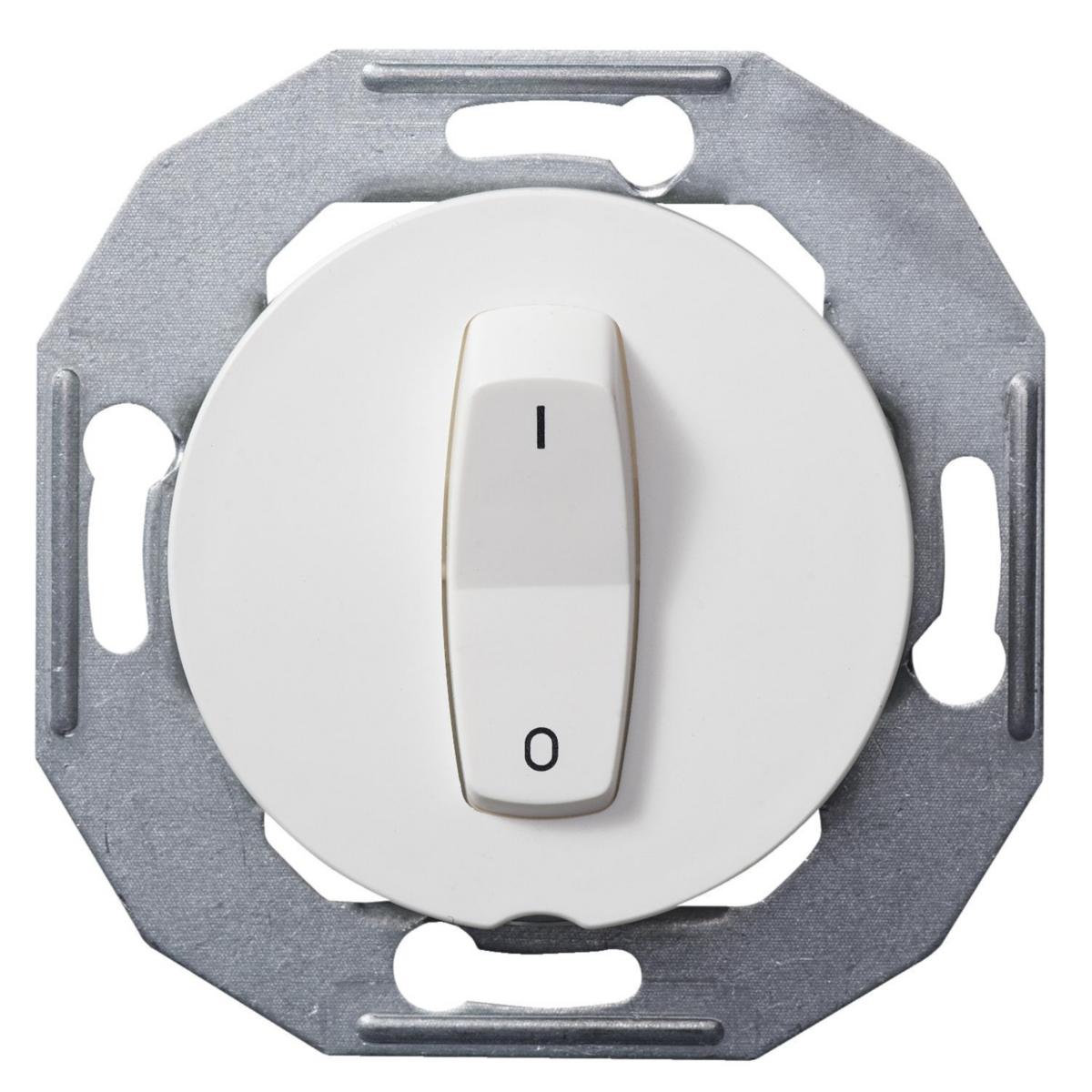

Toggle switch 16A 230V without frame, Renova
SWITCH S100 2 WHITE KOMPLETTERA MED VALFRI RAM
Article number: Suppl. article no:
1820042
WDE011006
to see price and stock
To shop with us, you need a registered company and a customer number.
Switch 16A for recessed IP20- mounting in an apparatus box c/c 60 mm or externally in surface-mounted box 22 mm. Quick-release connector
unless otherwise stated. Snap fastening of rocker switch with fixing plate. Apart from two neutral bridging clamps
the switches have double-steps (connection 6+6). Supplied with chlorine. Supplemented by optional Renova frame.
unless otherwise stated. Snap fastening of rocker switch with fixing plate. Apart from two neutral bridging clamps
the switches have double-steps (connection 6+6). Supplied with chlorine. Supplemented by optional Renova frame.
- Article number: 1820042
- Suppl. article no: WDE011006
- Ean no: 3606480697920
- Material class QH110B
Technical data
- Packagin Size: 1 ST/5 ST
- Product series: Renova
- Wiring system: 2-pole switch
- Method of operation: Rocker/button
- Number of rockers: 1
- Lighting: No
- Colour: White
- Connection type: Push-in clamp
- Rated current: 16 A
- Switching current for fluorescent lamps: 16 AX
- RAL-number (similar): 9010
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 19 mm
- Built-in depth: 15 mm
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Mounting with claw and screw
- Surface finishing: Matt
- Surface protection: Untreated
- Feedback-signal contact: No
- Number of modules (module system): 0
- With mounting plate: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
