Schneider Electric

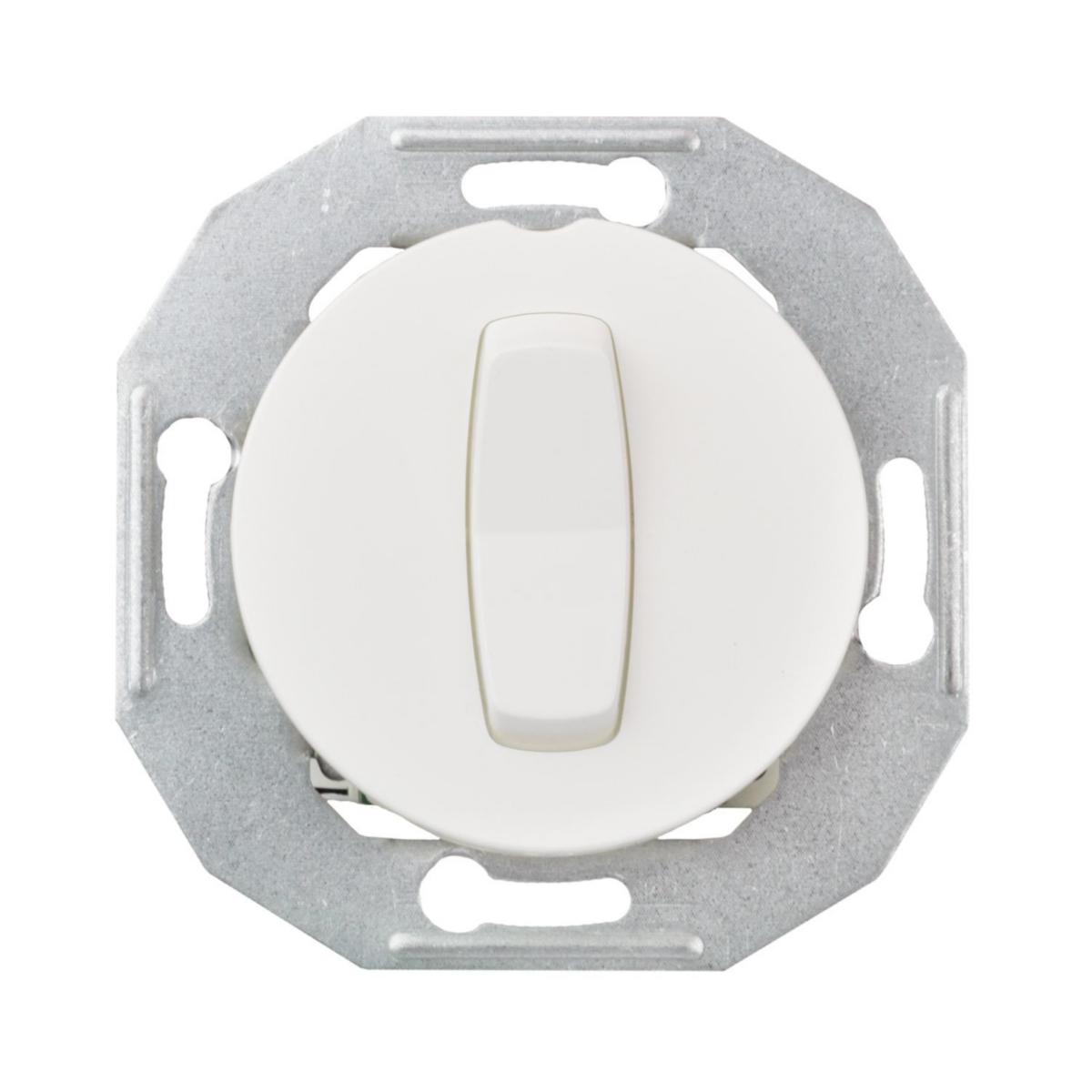

Rocker switch push button 16A 230V without frame, Renova
PUSH BUTTON 2-WAY WHITE KOMPLETTERA MED VALFRI RAM
Article number: Suppl. article no:
1820040
WDE011002
to see price and stock
To shop with us, you need a registered company and a customer number.
Toggle-switch 16A for recessed IP20- mounting in an apparatus box c/c 60 mm or externally in surface-mounted
box 22 mm. Quick-release connector unless otherwise specified. Snap fastening of rocker switch with fixing plate. The current switches have two neutral bridging clamps. Supplied with chlorine. Supplemented by optional Renova frame.
box 22 mm. Quick-release connector unless otherwise specified. Snap fastening of rocker switch with fixing plate. The current switches have two neutral bridging clamps. Supplied with chlorine. Supplemented by optional Renova frame.
- Article number: 1820040
- Suppl. article no: WDE011002
- Ean no: 3606480697906
- Material class QH110A
Technical data
- Packagin Size: 1 ST/5 ST
- Model: Single push button
- Colour: White
- Number of poles: 1
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 1
- Number of contacts as normally closed contact: 1
- Number of revolving contacts: 0
- With lighting: No
- With light source: No
- With signal lamp: No
- Number of rockers: 1
- Imprint: None
- Device width: 71 mm
- Device depth: 35 mm
- Min. depth of built-in installation box: 18 mm
- Label space/information surface: No
- RAL-number (similar): 9010
- Halogen free: Yes
- Device height: 71 mm
- Suitable for degree of protection (IP): IP20
- Method of operation: Rocker
- Material: Plastic
- Material quality: Thermoplastic
- Assembly arrangement: Basic element with central cover plate
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 16 A
- Transparent: No
- Surface finishing: Matt
- Surface protection: Untreated
- Feedback-signal contact: No
- Type of fastening: Mounting with claw and screw
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Impact strength: IK03
- Product series: Renova
- REACH Date: 2022-07-20
- REACH Information obligation: No
- Connection type: Push-in clamp
