Hager
Rotary switch series 1930

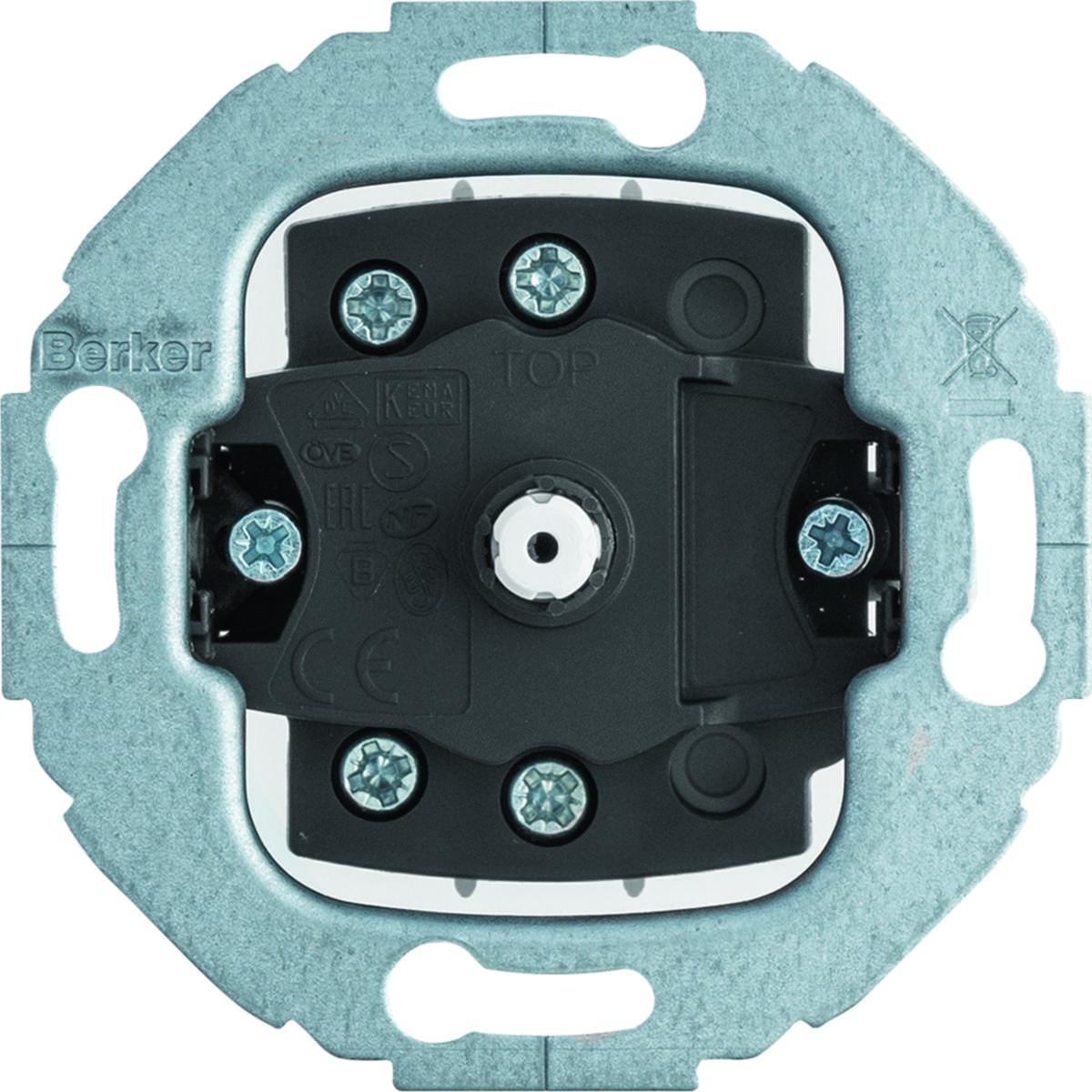

ROTARY SWITCH SERIES 1930 GLAS 387503
Article number: Suppl. article no:
1801984
387503
to see price and stock
Rotary switch Series berker 1930 / glass / R.Classic.
- Article number: 1801984
- Suppl. article no: 387503
- Ean no: 4011334489283
- Material class QH8510
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: berker 1930
- Wiring system: Series switch
- Method of operation: Turn button
- Lighting: Optional
- Function lighting: Other
- Connection type: Screwed terminal
- Rated current: 10 A
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Duroplast
- Halogen free: Yes
- Mounting method: Flush-mounted
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 42 mm
- Built-in depth: 32 mm
- Min. depth of built-in installation box: 35 mm
- Switching current for fluorescent lamps: 10 AX
- Assembly arrangement: Basic element
- Nominal voltage: 250 V
- Washing machine switch: No
- Push button switch: No
- Type of fastening: Mounting with claw
- Surface protection: Other
- Monitoring contact: No
- Type of lighting: Other
- With mounting plate: No
- Label space/information surface: No
- REACH Date: 2021-06-16
- REACH Information obligation: No
