Hager

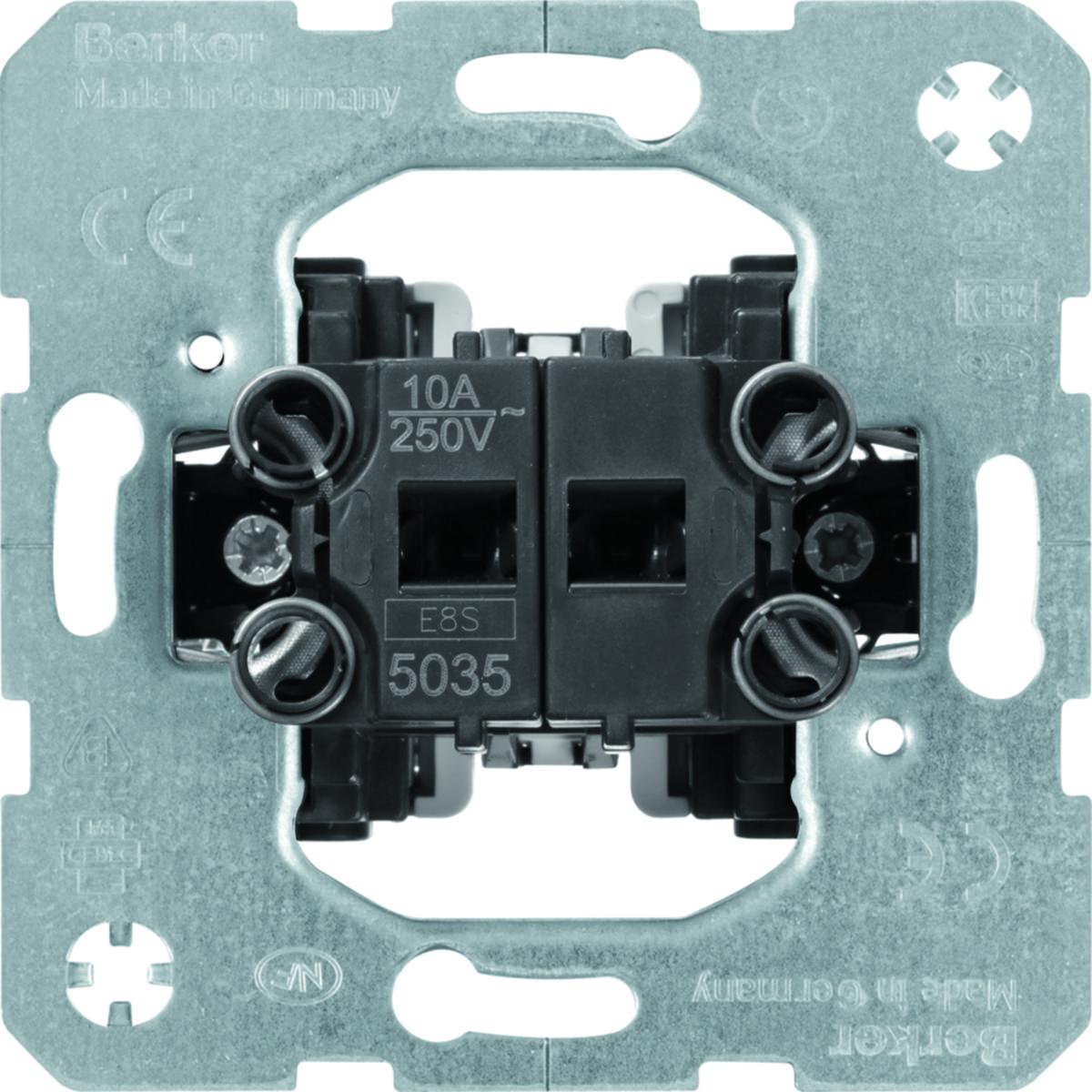

Push button insert, Hager
ROCKERS PUSH-BUTTON MODULE INS 10A RESILIENT
Article number: Suppl. article no:
1801012
5035
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shc.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
Button insert, non-locking 10A with quick connection and clws unless otherwise specified. For recessed IP20 mounting in apparatus box C/C 60 or external mounting in raising frame. Supplemented with frames rockers from all of the Berker series apart from 1930.
- Article number: 1801012
- Suppl. article no: 5035
- Ean no: 4011334030447
- Material class QH8500
Technical data
- Packagin Size: 1 ST/10 ST
- Model: Series push button
- Colour: Other
- Number of contacts as normally open contact: 2
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Number of revolving contacts: 0
- With lighting: No
- With light source: No
- With signal lamp: No
- Number of rockers: 2
- Imprint: None
- Device width: 71 mm
- Device depth: 41.6 mm
- Min. depth of built-in installation box: 34 mm
- Label space/information surface: No
- Halogen free: Yes
- Device height: 71 mm
- Suitable for degree of protection (IP): IP20
- Method of operation: Rocker
- Material: Other
- Material quality: Other
- Assembly arrangement: Basic element
- Mounting method: Flush-mounted
- Nominal voltage: 250 V
- Rated current: 10 A
- Transparent: No
- Surface protection: Untreated
- Feedback-signal contact: No
- Number of modules (module system): 0
- Type of fastening: Mounting with claw
- Anti-bacterial treatment: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Contactless type: No
- IFTTT support available: No
- Product series: berker S1
- REACH Date: 2021-06-16
- REACH Information obligation: No
- Connection type: Push-in clamp
