Earth fault breaker recessed, Exxact
RCD CP 30MA WH EXXACT
Article number: Suppl. article no:
1821160
WDE002389
to see price and stock

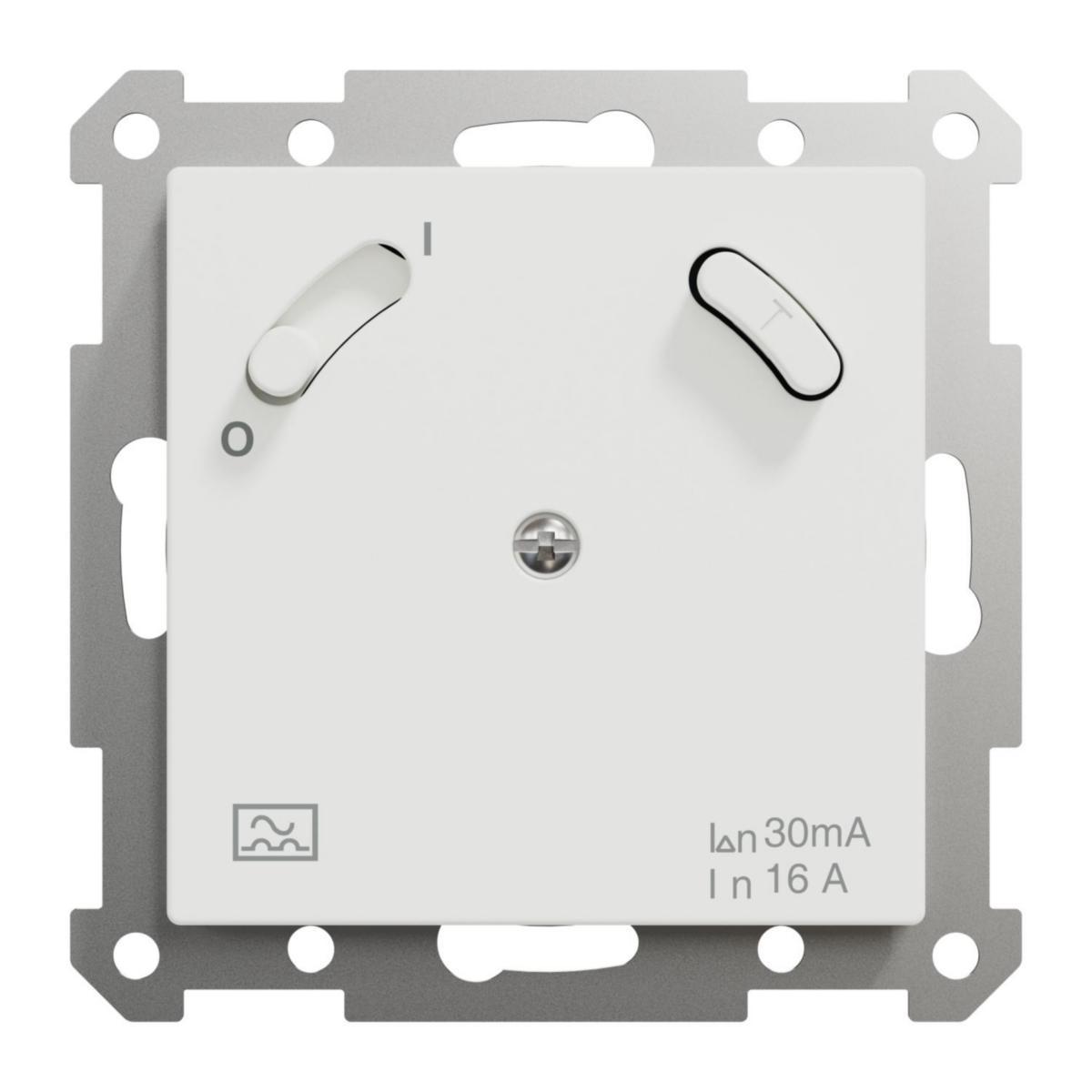

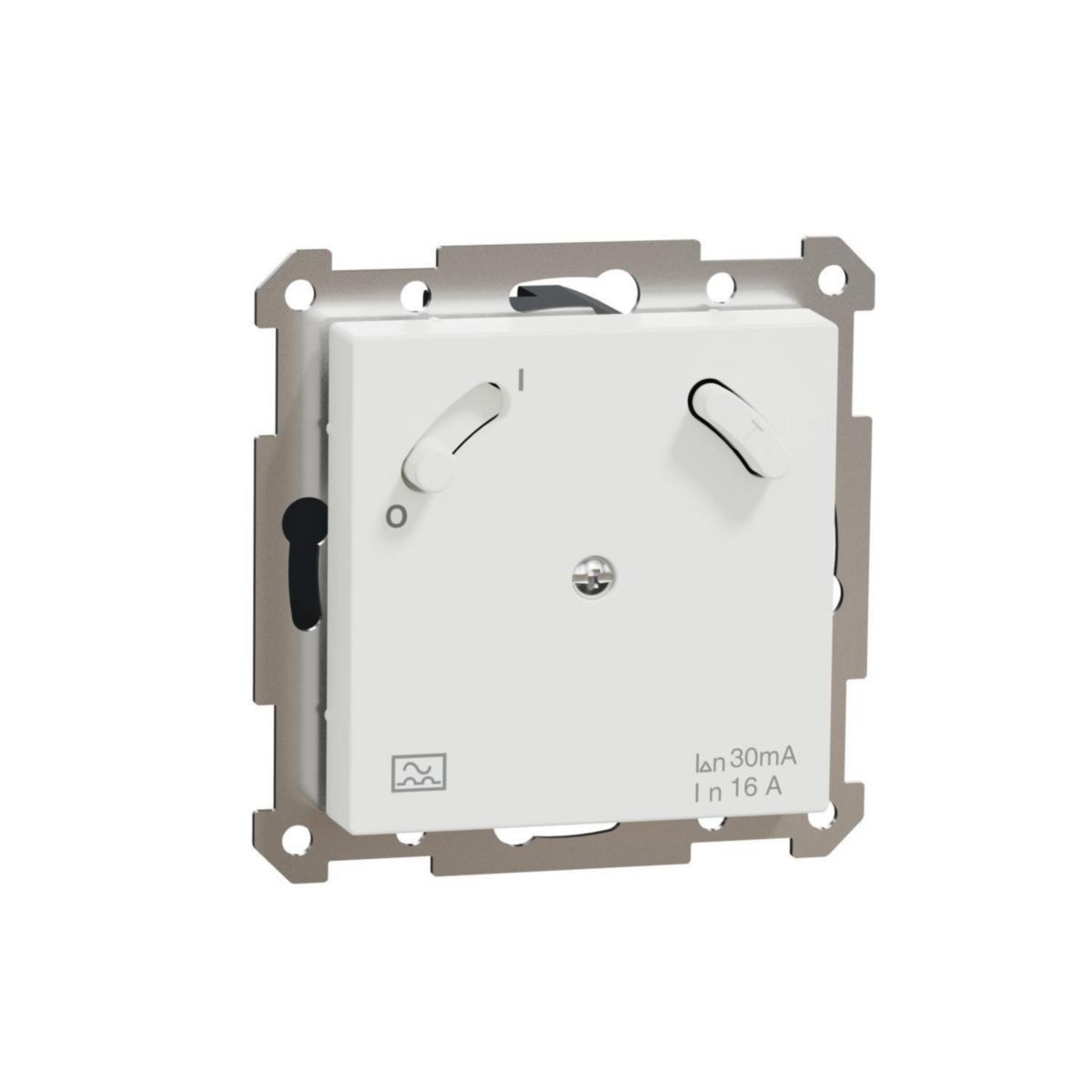

Exxact Earth fault breaker, incl. OFF/ON and test buttons, quick-release connector. For recessed mounting on the apparatus box c/c, 60 mm. For surface mounting box 35mm is used. Supplemented by optional Exxact frame.
- Article number: 1821160
- Suppl. article no: WDE002389
- Ean no: 3606480207860
- Material class QH9290
Technical data
- Packagin Size: 1 ST/10 ST/10 ST/1200 ST
- Type: WDE002389
- Product series: Exxact
- Rated voltage: 230 V
- Rated current: 16 A
- Rated fault current: 0.03 A
- Number of poles: 2
- RAL-number (similar): 9003
- Frequency: 50 Hz
- Degree of protection (IP): IP20
- Built-in depth: 32 mm
- Mounting method: Built-in
- Short-time delayed tripping: No
- Leakage current type: A
- Selective protection: No
- Voltage type: AC
- Additional equipment possible: No
- Connectable conductor cross section solid-core: 1.5-2.5 mm²
- With interlocking device: No
- Device width: 71 mm
- Explosion-proof: No
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- Colour: White
- REACH Information obligation: Yes
