AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsLight signalsLight signal
Schneider Electric
Light signal

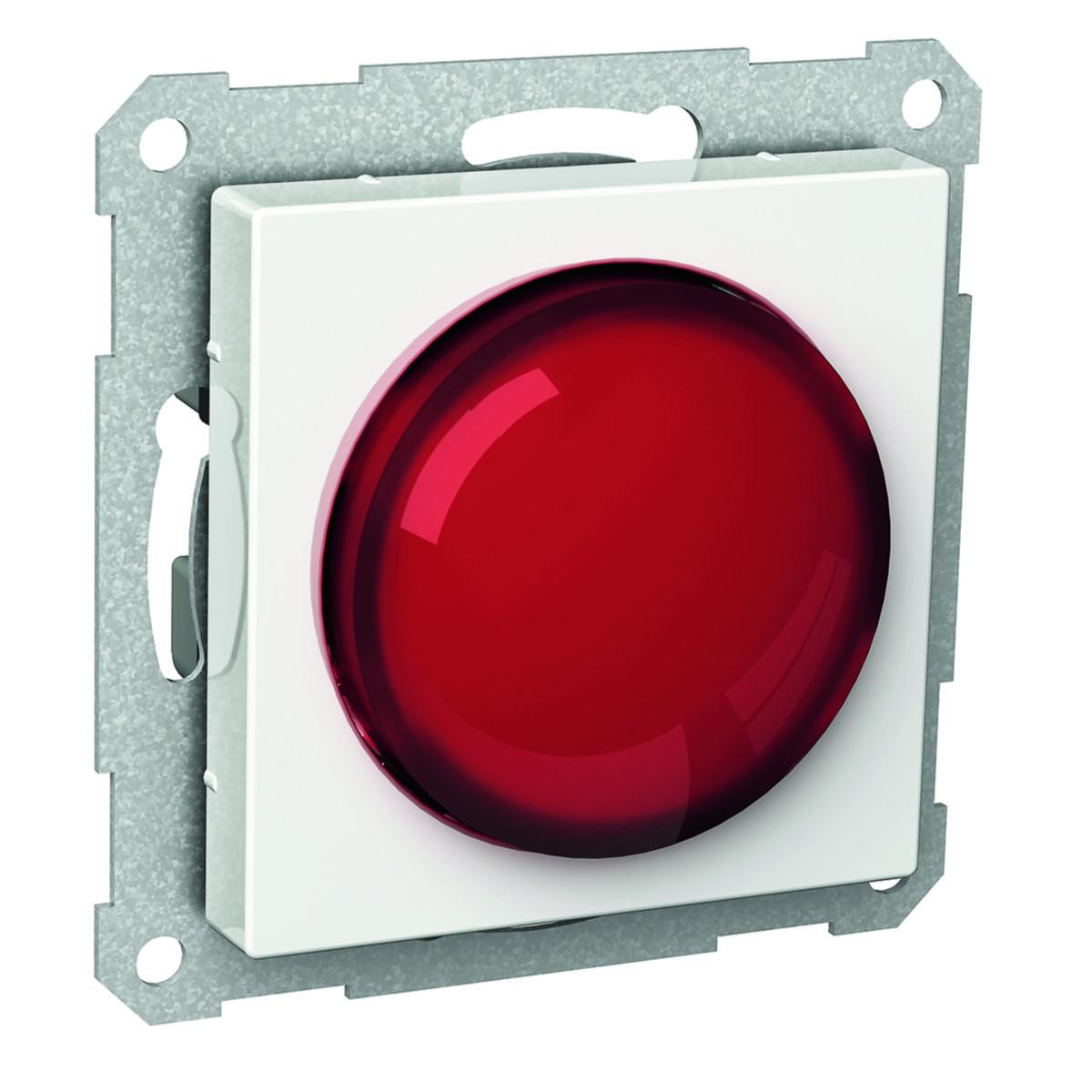

LIGHTSIGN RED E10 WH EXXACT
Article number: Suppl. article no:
1820760
WDE002165
to see price and stock
Light signals, 1A with coloured lens incl. LED lamp E10, quick-release connector, hidden screw fastening of the centre plate. No switch or impulse function.
- Article number: 1820760
- Suppl. article no: WDE002165
- Ean no: 3606480202940
- Material class QH1700
Technical data
- Packagin Size: 1 ST/5 ST
- Application as button: No
- Colour: White
- RAL-number (similar): 9003
- Colour light source: Red
- Lamp holder: E10
- Mounting method: Flush-mounted
- Assembly arrangement: Basic element with central cover plate
- With light source: Yes
- Suitable for degree of protection (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Max. lamp power: 1.3 W
- With flashlight: No
- With fixed symbol/imprint: No
- With exchangeable symbol: No
- Nominal voltage: 250 V
- Transparent: No
- Lamp type: LED exchangeable
- Surface finishing: Glossy
- Surface protection: Untreated
- Min. depth of built-in installation box: 23 mm
- Type of fastening: Screw mounting
- Product series: Exxact
- REACH Date: 2022-07-20
- REACH Information obligation: No
