AhlsellProductsElectricInstallation equipment 11-1818 Switches and wall socketsLamp sockets and lamp plugsWall mounted
Schneider Electric

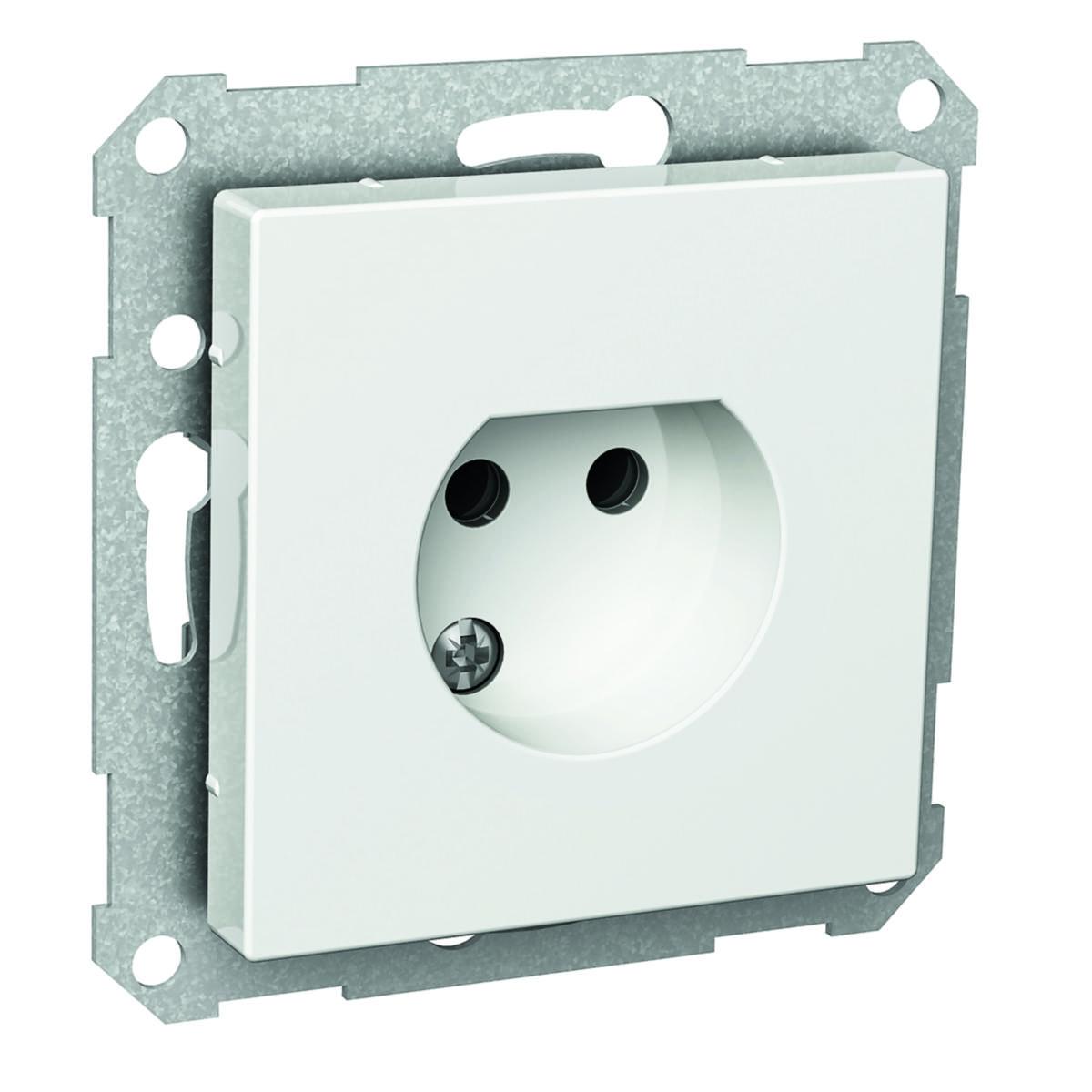

Lamp socket Exxact
LUMINAIRE OUTLET 2P UE WH EXXACT
Article number: Suppl. article no:
1895067
WDE002108
to see price and stock
To shop with us, you need a registered company and a customer number.
Light socket 6A for wall mounting. For recessed mounting in apparatus box c/c 60 mm, junction box c/c 67 mm, or externally in surface-mounted box 21 mm. Quick-release connector. Supplemented with any Exxact frame.
- Article number: 1895067
- Suppl. article no: WDE002108
- Ean no: 3606480204593
- Material class QH280A
Technical data
- Packagin Size: 1 ST/5 ST
- Number of poles: 2
- Model: Without protective contact
- Colour: White
- Number of units: 1
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 11.8 mm
- Nominal current: 6 A
- Nominal voltage: 250 V
- RAL-number (similar): 9003
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Mounting method: Flush-mounted
- Transparent: No
- Surface protection: Untreated
- Suitable for degree of protection (IP): IP21
- Type of fastening: Mounting with claw and screw
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- Fault current protection: No
- Frequency: 50-60 Hz
- Eject-mechanism: No
- Lockable: No
- With miniature fuse: No
- With function lighting: No
- With enhanced contact protection: No
- With hinged lid: No
- With orientation lighting: No
- Label space/information surface: No
- Rated fault current: 0 mA
- Rotated central insert: No
- Special power supply: No special power supply
- For heavy conditions according to VDE: No
- Product series: Exxact
