Elko

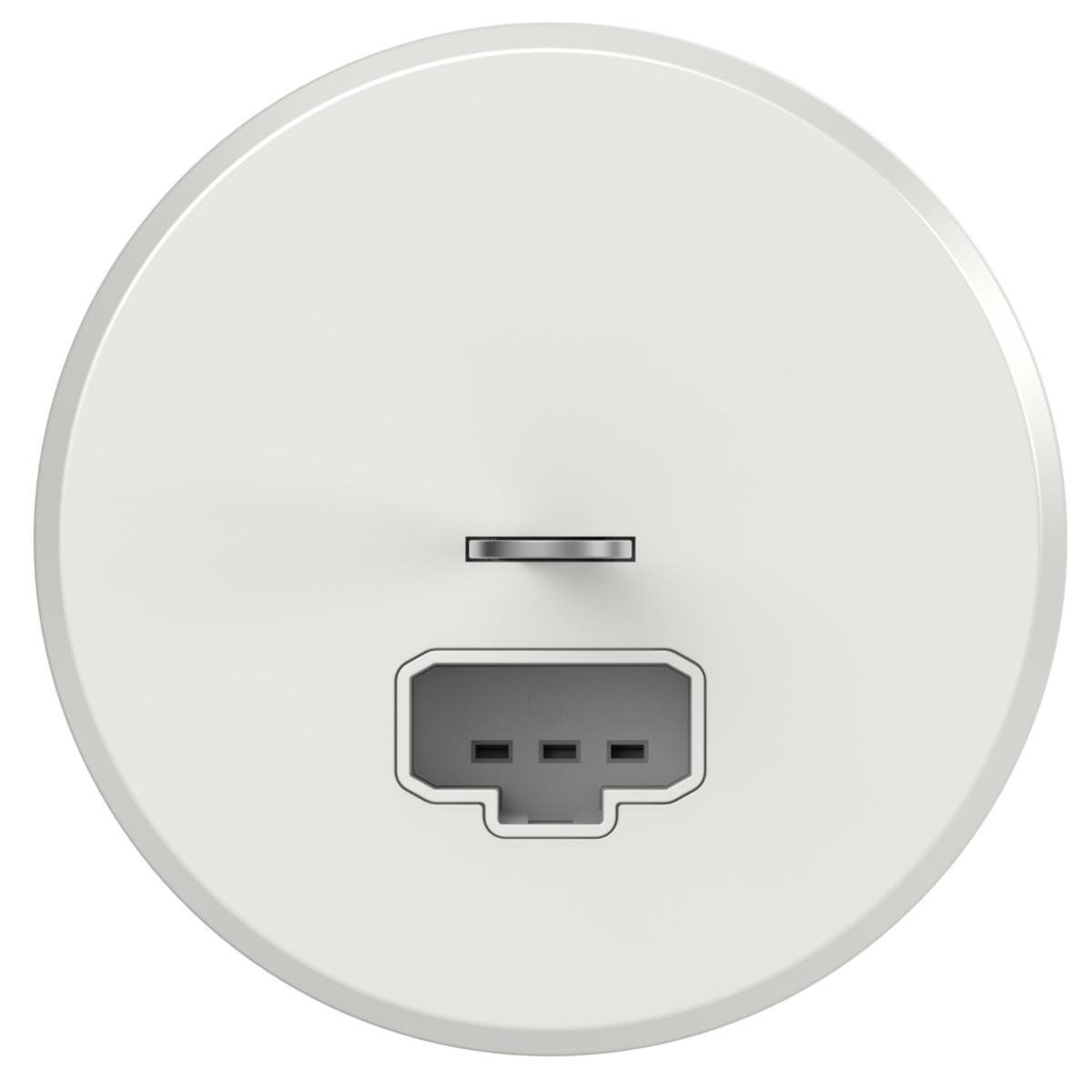

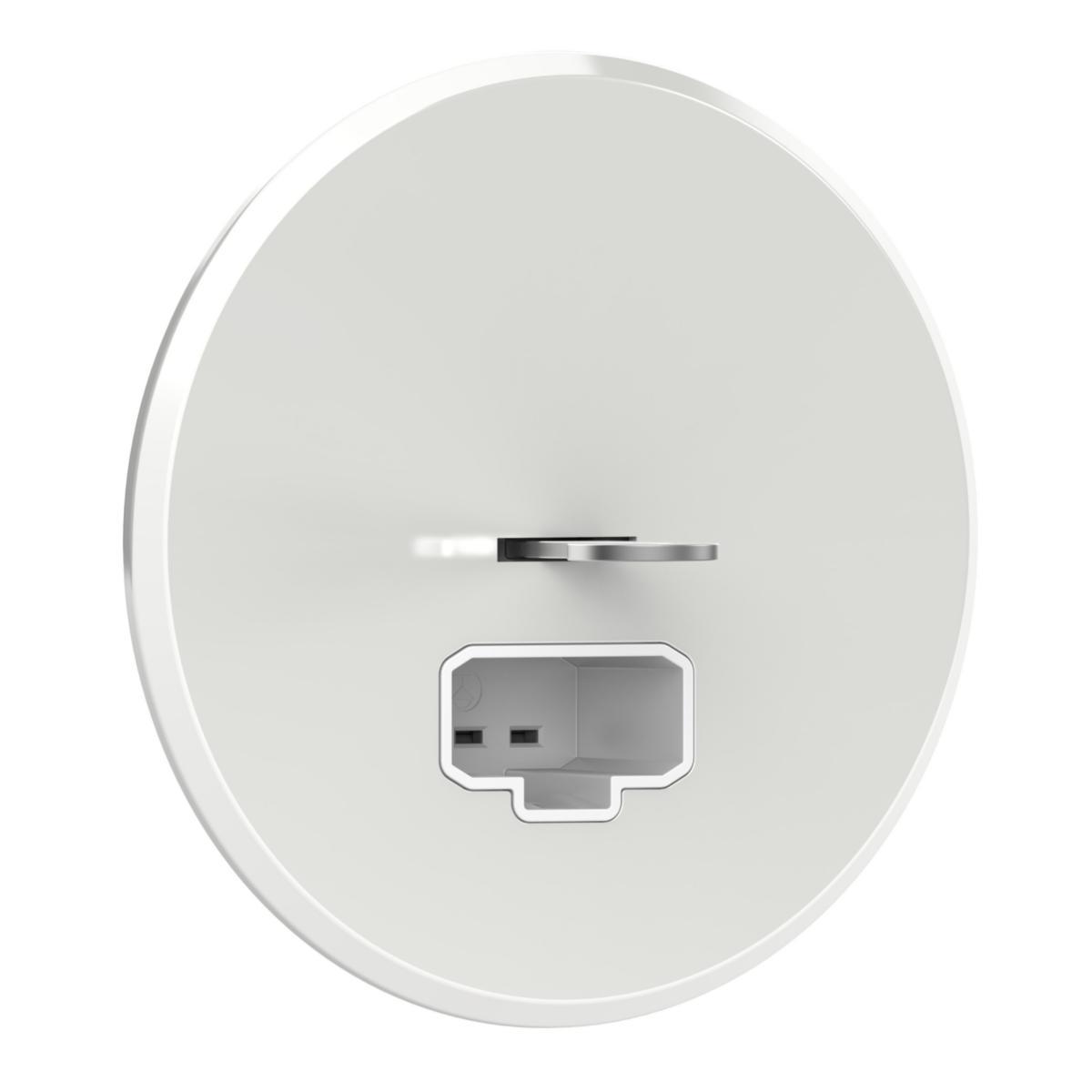

Lamp socket ceiling DCL RS, Elko
CEILING OUTLET DCL EKO06951
Article number: Suppl. article no:
1885140
EKO06951
to see price and stock
DCL means Device for Connection of Luminaires, and is a plug and socket system for connecting the fixed lighting equipment. DCL roof sockets fit all ELKO roof boxes and mounting hooks for loads up to 15 kg. If the roof box is shallower than 40 mm, separate elevation frame E18 952 43 are used.
Quick Connect. Mounting depth 31 mm, Max load on roof hook 15 kg.
Quick Connect. Mounting depth 31 mm, Max load on roof hook 15 kg.
- Article number: 1885140
- Suppl. article no: EKO06951
- Ean no: 7020160695109
- Material class QH5200
Technical data
- Packagin Size: 1 PCS/5 PCS
- Type: EKO06951
- Colour: White
- Number of units: 1
- Number of socket outlets switchable: 1
- Device width: 115 mm
- Device height: 115 mm
- Device depth: 40 mm
- Nominal current: 6 A
- Nominal voltage: 230 V
- RAL-number (similar): 9010
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Mounting method: Flush-mounted
- Transparent: No
- Surface protection: Untreated
- Suitable for degree of protection (IP): IP20
- Type of fastening: Mounting with screw
- Material: Plastic
- Material quality: Thermoplastic
- Halogen free: Yes
- With on/off switch: No
- Insulated mounting: No
- With loop through function: Yes
- Fault current protection: No
- Frequency: 50 Hz
- Eject-mechanism: No
- Lockable: No
- With miniature fuse: No
- With function lighting: No
- With enhanced contact protection: No
- With hinged lid: No
- With orientation lighting: No
- Label space/information surface: No
- Rotated central insert: No
- Special power supply: No special power supply
- For heavy conditions according to VDE: No
- Product series: RS
- REACH Date: 2022-08-09
- REACH Information obligation: No
