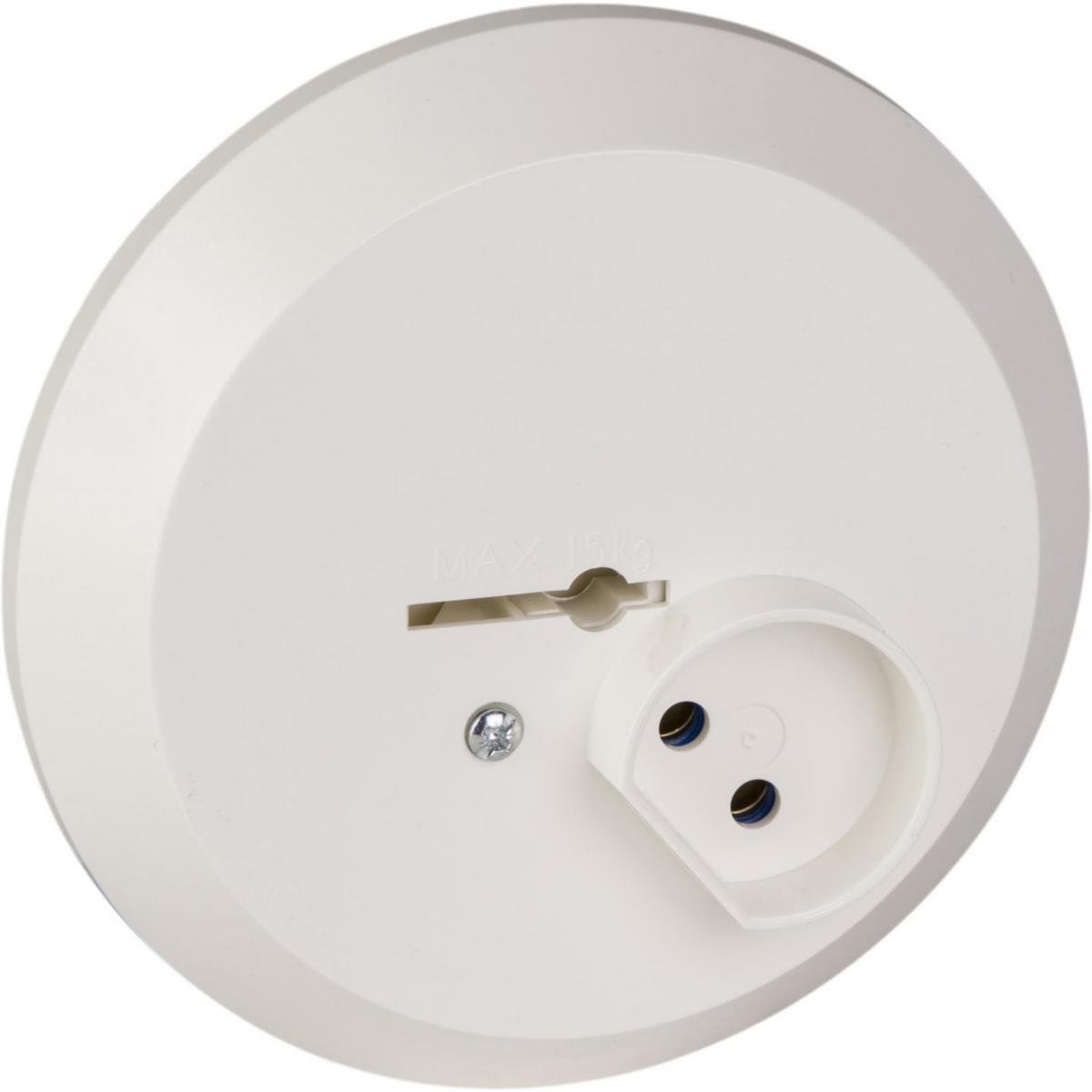

Lamp socket 1-way round for surface-mounting in ceiling

LUMINAIRE OUTLET SURFACE 2P E189507400

Article number:

1820367

Suppl. article no:

E189507400

‌
‌
‌

‌
‌

to see price and stock

For mounting over ceiling box c-c 70 mm or directly on ceiling. Incl. detachable hook and screw for mounting in ceiling box. Two neutral transfer clamps. Quick connect of the conductors. Made of polar white thermoplastic.

Article number:
1820367
Copy to clipboard
Suppl. article no:
E189507400
Copy to clipboard
Ean no:
6410011506820
Copy to clipboard
Material class
QH2800
Copy to clipboard

Technical data

Packagin Size: 1 PCS/10 PCS/10 PCS
Number of poles: 2
Colour: White
Number of units: 1
Number of socket outlets switchable: 0
Number of phases: 1
Device height: 18 mm
Device diameter: 110 mm
Nominal current: 6 A
Nominal voltage: 250 V
RAL-number (similar): 9010
With built-in USB power supply: No
Connection type: Push-in clamp
Surface finishing: Glossy
Mounting method: Surface mounted
Transparent: No
Surface protection: Untreated
Suitable for degree of protection (IP): IP20
Type of fastening: Mounting with screw
Material: Plastic
Material quality: Thermoplastic
Halogen free: Yes
With on/off switch: No
Insulated mounting: Yes
With loop through function: No
Fault current protection: No
Frequency: 50-60 Hz
Eject-mechanism: No
Lockable: No
With miniature fuse: No
With function lighting: No
With enhanced contact protection: No
With hinged lid: No
With orientation lighting: No
Label space/information surface: No
Rated fault current: 0 mA
Rotated central insert: No
Special power supply: No special power supply
Number of modules (module system): 0
For heavy conditions according to VDE: No
With signal lamp: No
Overvoltage protection: No
REACH Date: 2022-07-20
REACH contains candidate substances: Bly
Protective earth pin round: No
Protective contact: No
REACH Information obligation: Yes
