Elko

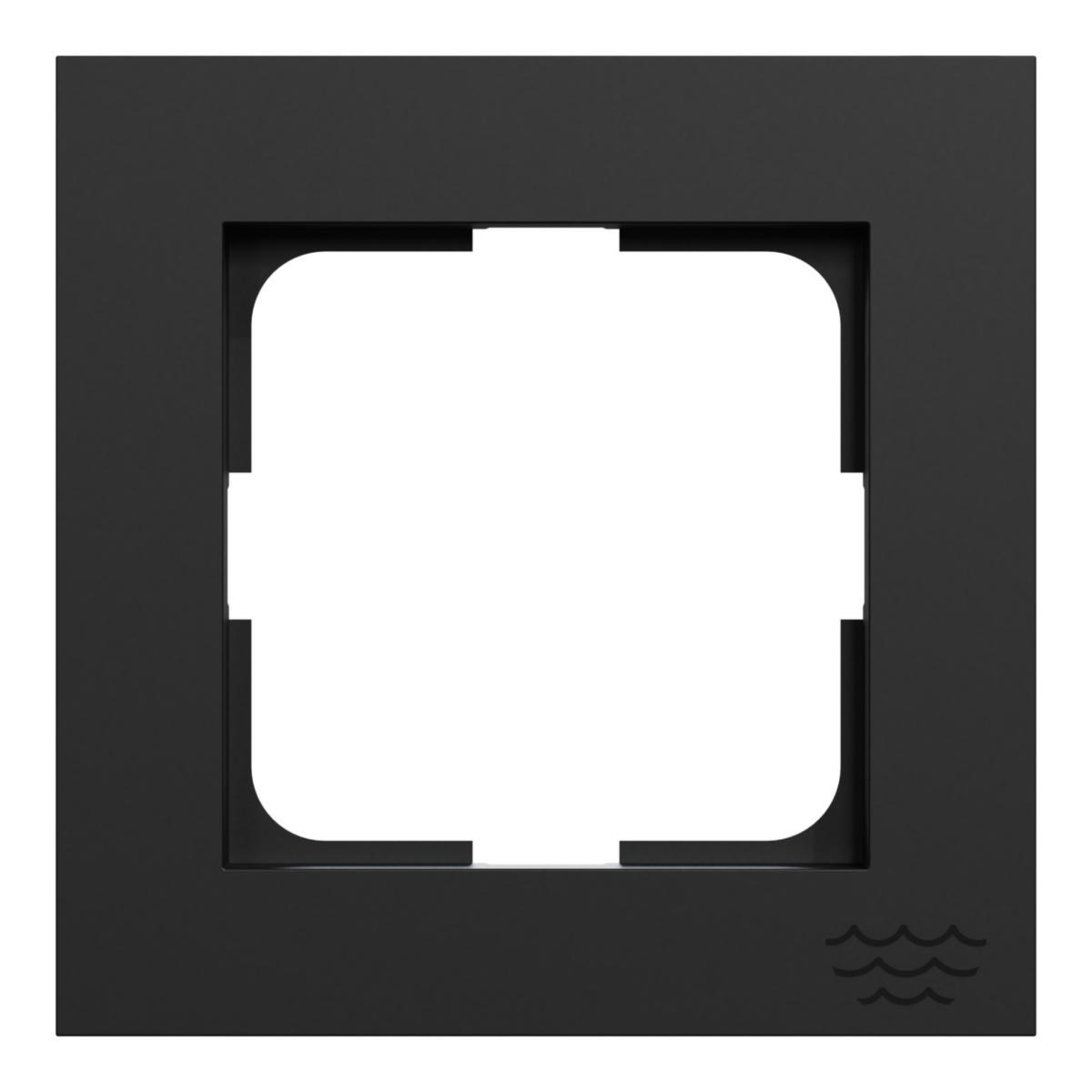

Combination frame, OceanPlastic
Plus frame 1 H blk EKO30001 OCEAN PLASTIC
Article number: Suppl. article no:
1849501
EKO30001
to see price and stock
ELKO is the first in the industry to produce switches, sockets and frames in marine plastic. Initially, there are 19 products in the design series ELKO Plus in the color black that are available in marine plastic. Combination frames for recessed switches, wall sockets, etc. The material is halogen-free thermoplastic. When mounting switches, the mounting frame included in the switch is used. When mounting within the same frame, the c / c dimension is 71mm, when mounting between two frames, the c / c dimension is 85mm.
- Article number: 1849501
- Suppl. article no: EKO30001
- Ean no: 7020161300019
- Material class QH3800
- This is an alternative to item 1848821
Technical data
- Packagin Size: 1 PCS/10 PCS/100 PCS
- Product series: Elko Plus, OceanPlastic
- Number of units: 1
- Colour: Black
- Number of units horizontal: 1
- Material: Plastic
- Surface finishing: Matt
- Width: 86 mm
- Depth: 10.5 mm
- Height: 86 mm
- With mounting grid: No
- Mounting direction: Horizontal and vertical
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: Yes
- Suitable for subfloor installation duct box: No
- Suitable for built-in installation: Yes
- Suitable for wall duct: No
- With hinged lid: No
- RAL-number (similar): 9005
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- Anti-bacterial treatment: No
- REACH Date: 2021-10-20
- REACH Information obligation: No
