Schneider Electric
Multi line frames Basic

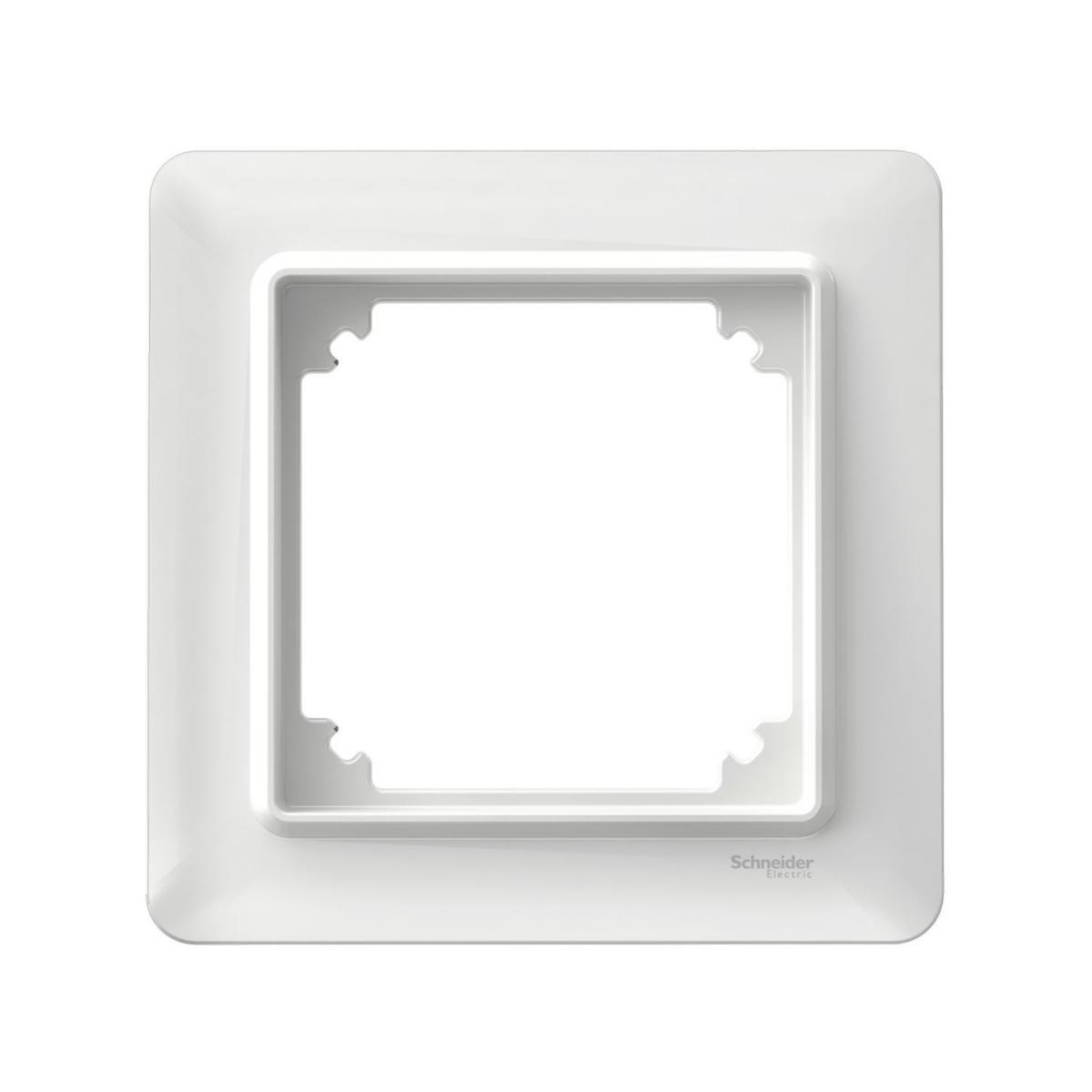

FRAME 1G G-DESIGN WH EXXACT BASIC
Article number: Suppl. article no:
1822441
WDE002401
to see price and stock
Basic frames 1-5 bays. For recessed or surface mounting IP20.. 2-5 bay frames have removable intermediate pieces, making it possible to mount e.g. a 3-way socket in a 2-bay frame. 1-3 bay frames can be upgraded to IP44, a sealing set is used for recessed mounting, and a surface-mounted box is used for external mounting in IP44- box. For vertical or horizontal mounting.
- Article number: 1822441
- Suppl. article no: WDE002401
- Ean no: 3606480207884
- Material class QH1700
Technical data
- Packagin Size: 1 ST/10 ST/240 ST/7680 ST
- Type: WDE002401
- Product series: Exxact
- Number of units: 1
- Colour: White
- Number of units horizontal: 1
- Number of units vertical: 1
- Material: Plastic
- Surface finishing: Glossy
- Width: 85 mm
- Depth: 11.6 mm
- Height: 85 mm
- Flush-mounted installation: Yes
- Mounting direction: Horizontal and vertical
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for wall duct: Yes
- With hinged lid: No
- RAL-number (similar): 9003
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- REACH Date: 2022-07-20
- REACH Information obligation: No
