Schneider Electric

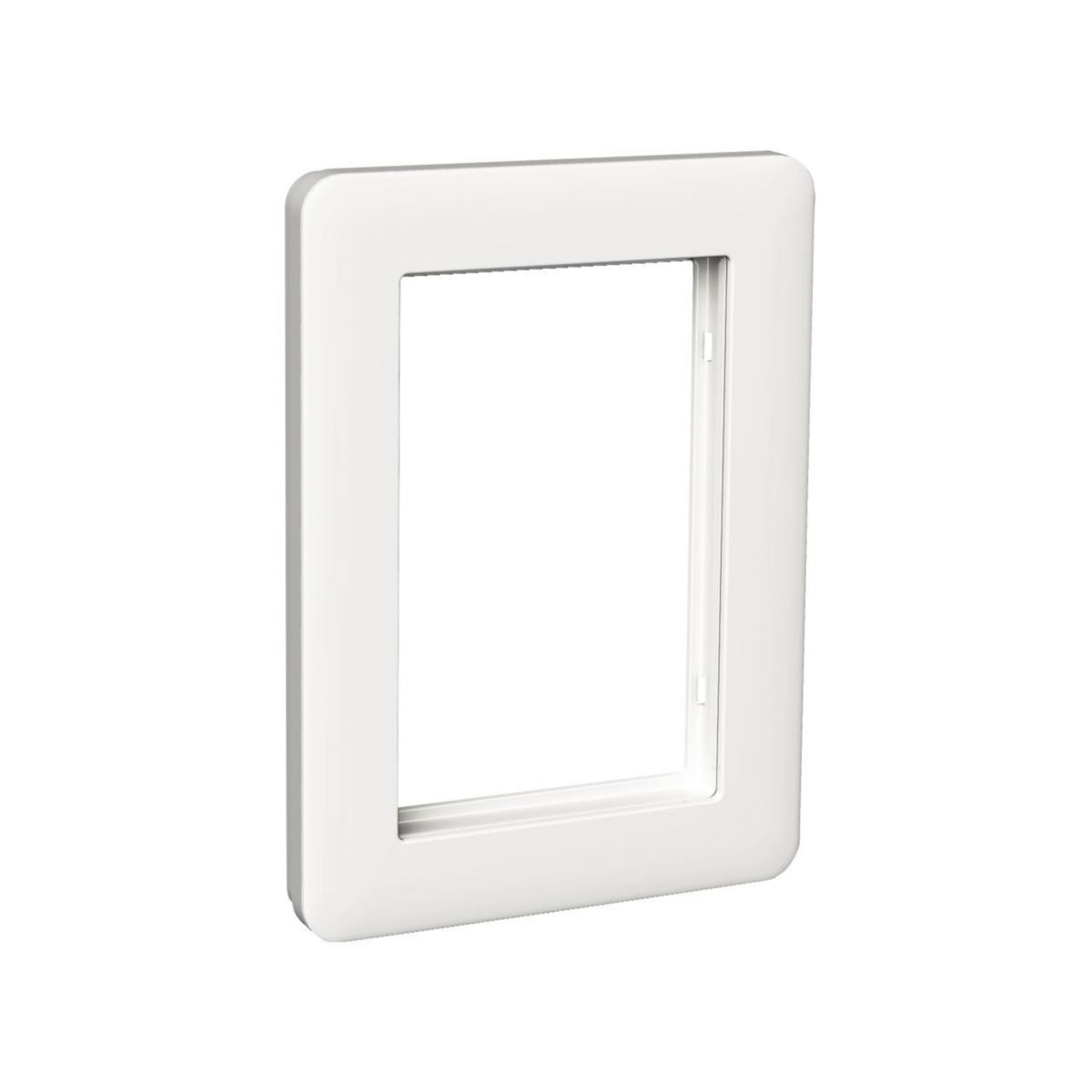

Frame for 2-way wall socket Primo
FRAME DSO FRO PRIMO WH EXXACT PRIMO
Article number: Suppl. article no:
1822147
WDE002100
to see price and stock
Exxact Frame for 2-way outlet Primo for recessed mounting IP20. With replaceable front. For vertical or horizontal mounting.
- Article number: 1822147
- Suppl. article no: WDE002100
- Ean no: 3606480208157
- Material class QH1700
Technical data
- Packagin Size: 1 ST/5 ST
- Type: WDE002100
- Product series: Exxact
- Number of units: 1
- Colour: White
- Number of units horizontal: 1
- Number of units vertical: 1
- Material: Plastic
- Surface finishing: Glossy
- Width: 87 mm
- Depth: 11.6 mm
- Height: 119 mm
- Flush-mounted installation: Yes
- Mounting direction: Horizontal and vertical
- Material quality: Thermoplastic
- Label space/information surface: No
- Halogen free: Yes
- Built-in width: 0 mm
- Built-in height: 0 mm
- Suitable for subfloor installation duct box: No
- Suitable for wall duct: Yes
- With hinged lid: No
- RAL-number (similar): 9003
- Degree of protection (IP): IP20
- Transparent: No
- Type of fastening: Clamp mounting
- Surface protection: Untreated
- REACH Date: 2022-07-20
- REACH Information obligation: No
