ABB

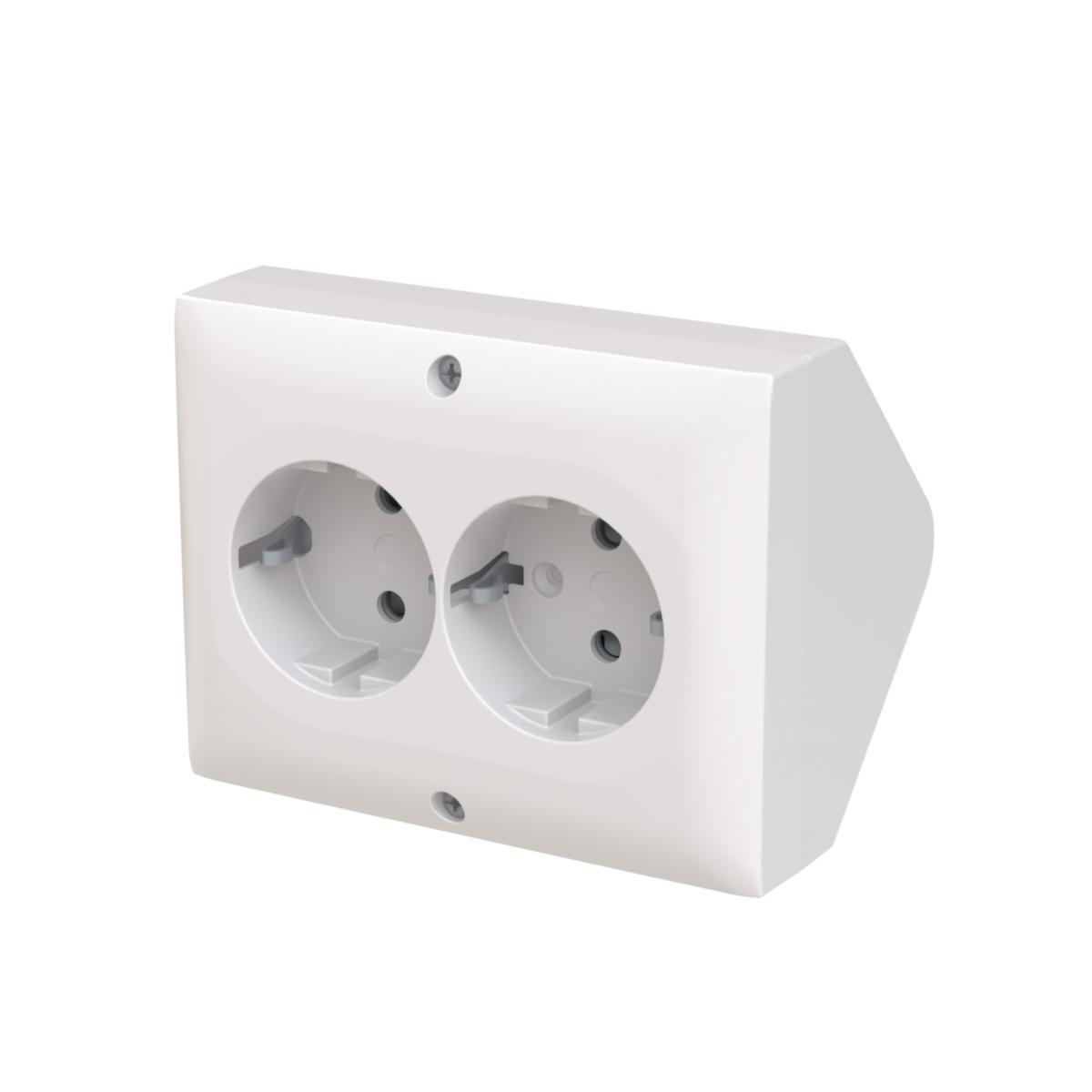

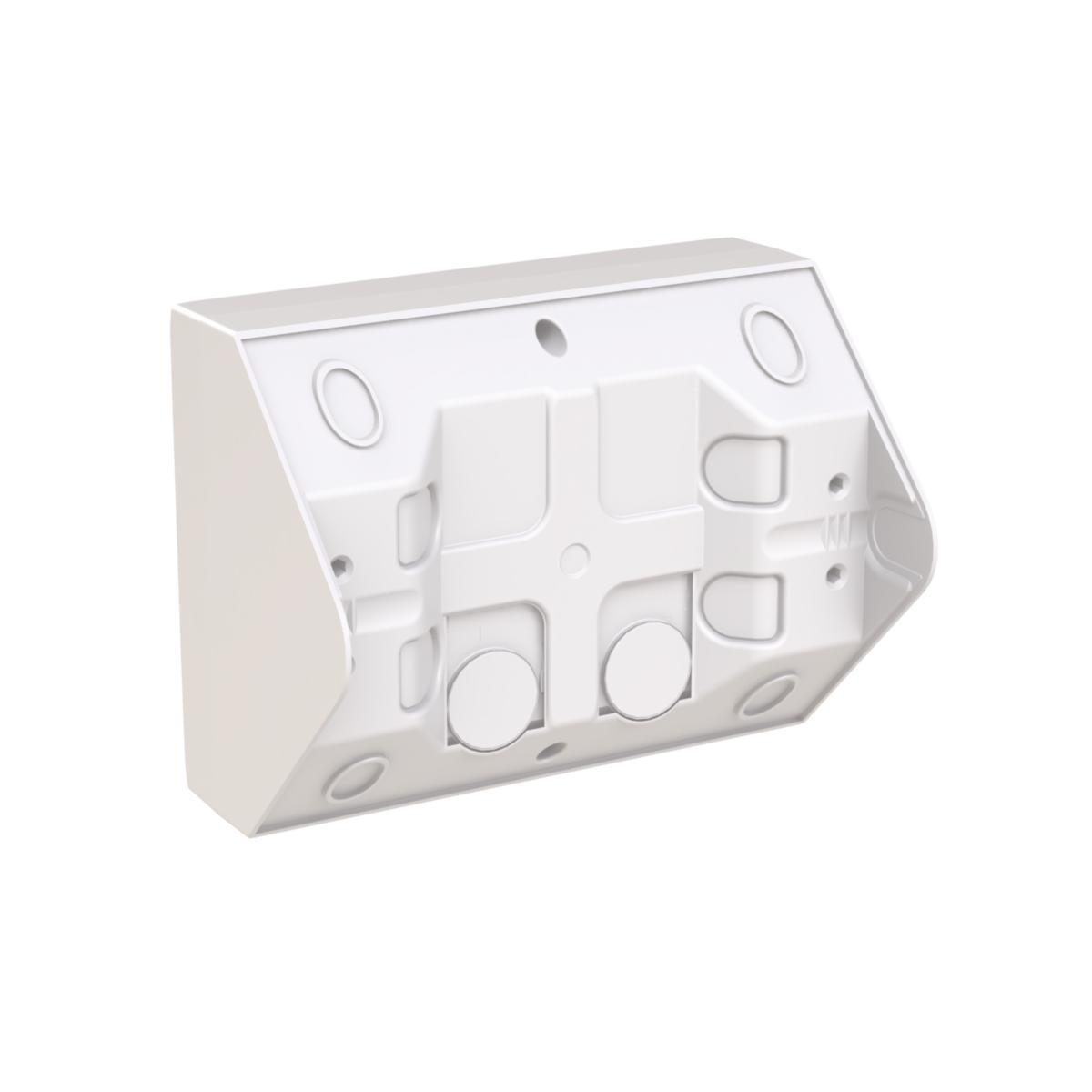

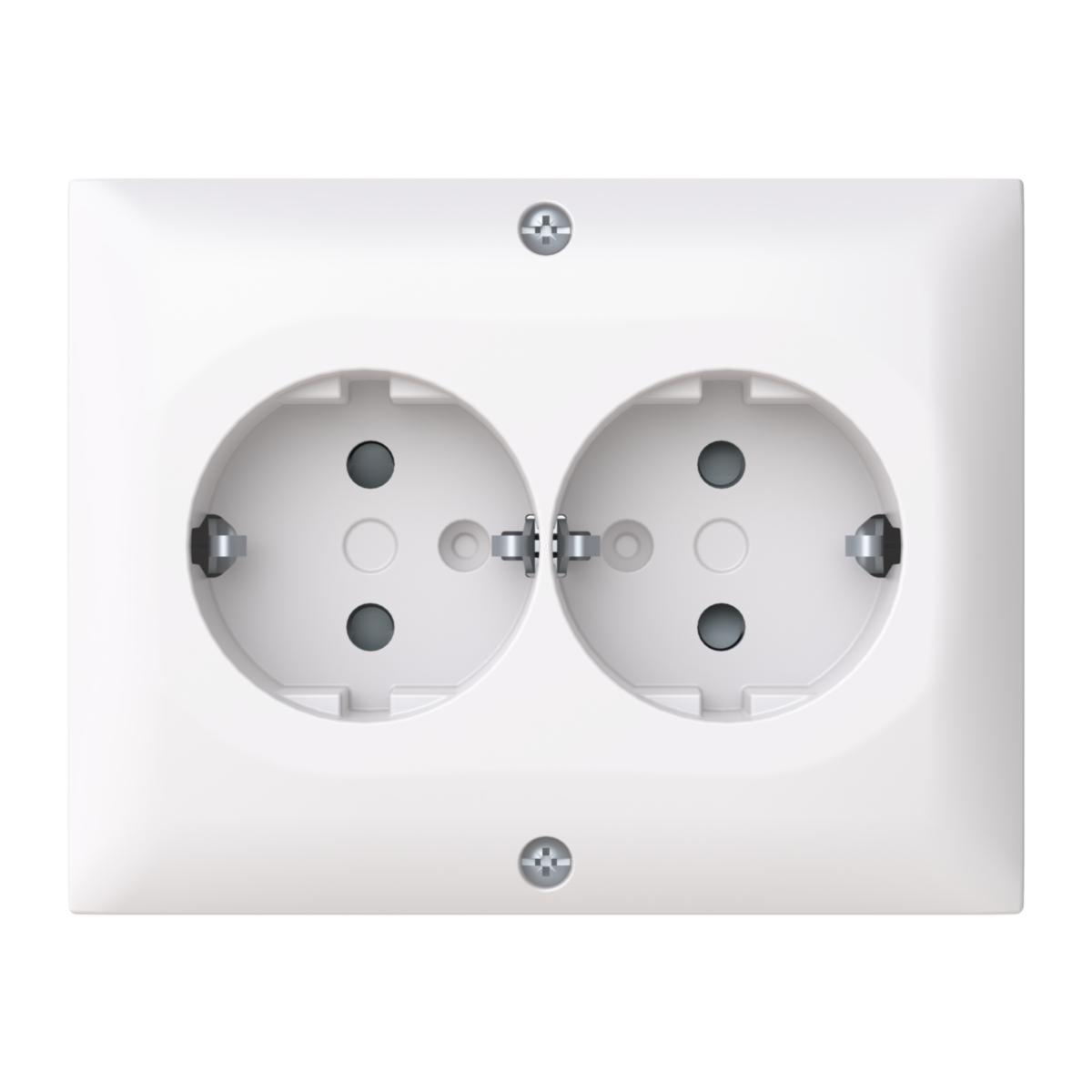

Corner box, 2-way Saga
Corner DSO
Article number: Suppl. article no:
1815836
2TKA00005214
to see price and stock
2-way wall outlet SAGA™ in corner box. SAGA™. Sustainable biocircular material is used. No X terminals. The socket insert without cover plate is protected from contact.
- Article number: 1815836
- Suppl. article no: 2TKA00005214
- Ean no: 6438199012186
- Material class QH5620
Technical data
- Packagin Size: 1 PCS/20 PCS/900 PCS
- Type: 402EE-916
- Product series: Saga
- Colour: White
- RAL-number (similar): 9003
- Model: Socket outlet with protective contact CEE 7/3 (type F)
- Protective contact: Earthing clips
- Number of phases: 1
- Connection type: Push-in clamp
- Surface finishing: Glossy
- Lockable: No
- Device height: 85 mm
- Device width: 110 mm
- Device depth: 69.3 mm
- Type of fastening: Mounting with screw
- Imprint/indication: None
- With hinged lid: No
- With function lighting: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP21
- Fault current protection: No
- Frequency: 50-60 Hz
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Anti-bacterial treatment: No
- With signal lamp: No
- Concurrently switching neutral conductor: No
- Number of active contacts (round): 4
- Metallic colour: No
- Transparent: No
- REACH Date: 2023-05-23
- REACH Information obligation: No
