Elko
Base socket 16A
LOW SOCKETBOX FOR RS1091 PT EKO07566
Article number: Suppl. article no:
1849272
EKO07566
to see price and stock

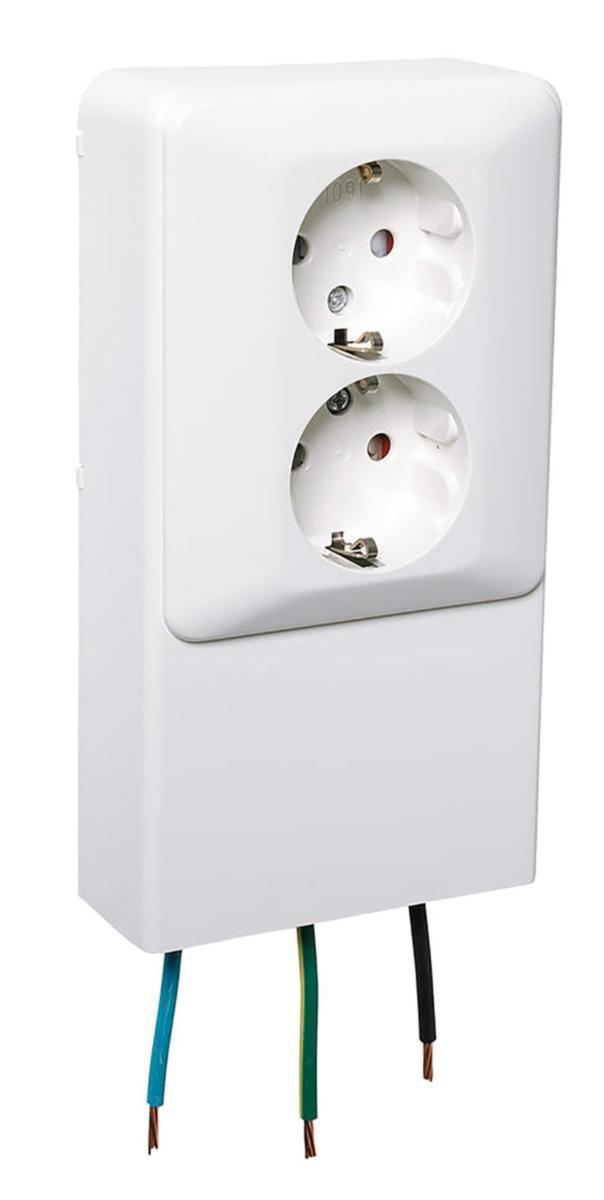

Surface mounted socket outlets with snap fastening of the cover. Pipe connection can be performed from underneath or from the back. Complete with 2-way outlet with earthing, low version. Connected cables for phase, zero and earthing that can easily be connected with a top clamp or the like. Halogen-free thermoplastic.
- Article number: 1849272
- Suppl. article no: EKO07566
- Ean no: 7020160756602
- Material class QH4290
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: RS
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Number of socket outlets: 2
- Number of socket outlets switchable: 0
- Colour: White
- RAL-number (similar): 9003
- Connection type: Screwed terminal
- Type of fastening: Mounting with screw
- Imprint/indication: None
- Device height: 169 mm
- Device width: 89 mm
- Device depth: 44 mm
- Lockable: No
- Surface finishing: Matt
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- With built-in USB power supply: No
- Mounting method: Surface mounted
- Overvoltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: No
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 230 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: No
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- With loop through function: Yes
- Insulated mounting: No
- Transparent: No
- REACH Date: 2022-08-09
- REACH Information obligation: No
