Schneider Electric

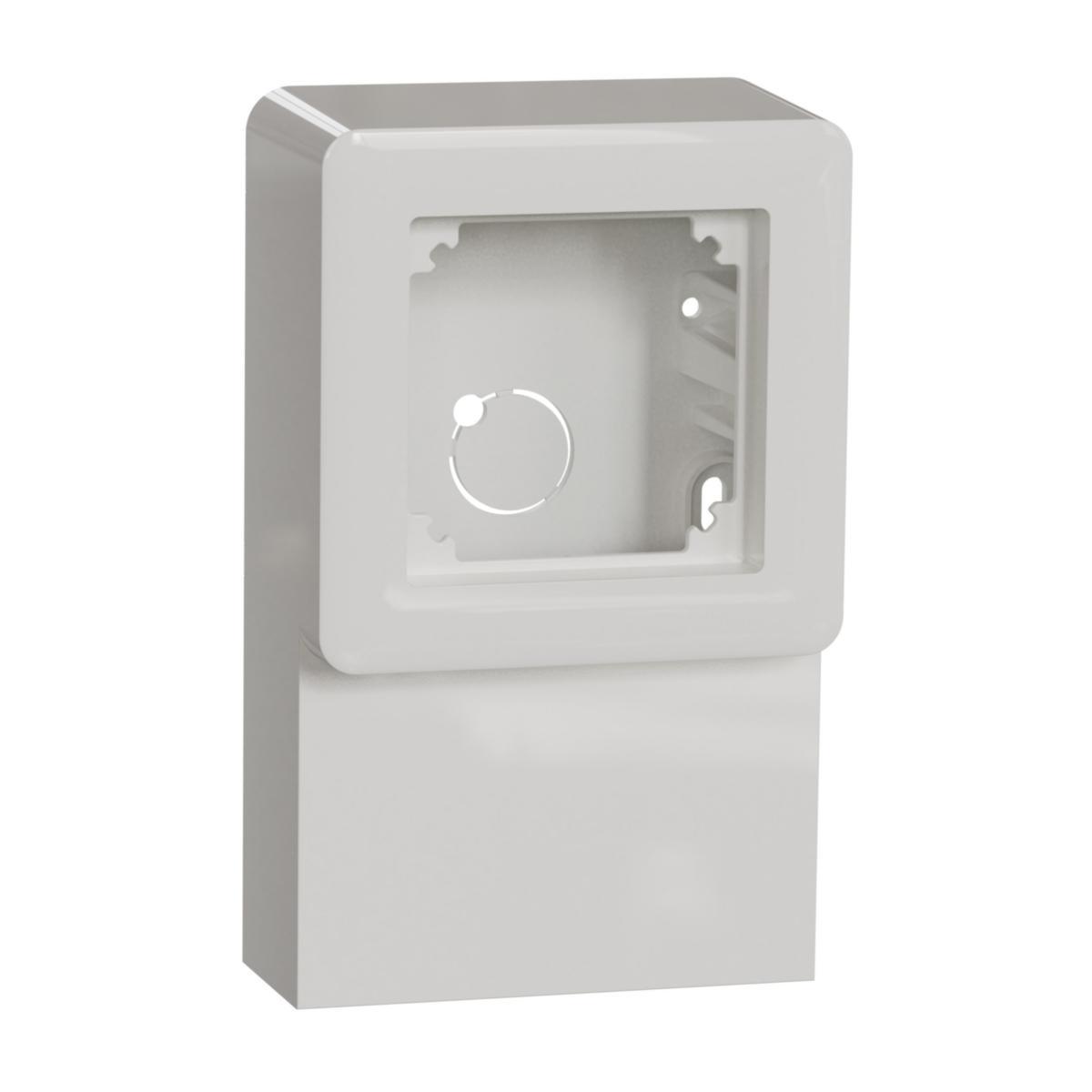

Base box with integrated frame, Exxact
SKIRTING BOX FOR 1M INSERTS WDE015741
Article number: Suppl. article no:
1820334
WDE015741
to see price and stock
Base box empty for surface mounting. Fits all Exxact 1 compartment products. The socket box is mounted over pipe outlets, on connection or device boxes. There are four attachment points in the bottom part. The frame is integrated so that no separate Exxact frame is needed. Fixation points for strain relief are located in the base plate for attaching cables and pipes / hoses with cable ties.
- Article number: 1820334
- Suppl. article no: WDE015741
- Ean no: 3606489504595
- Material class QH1600
Technical data
- Packagin Size: 1 ST/5 ST/5 ST/20 ST
- Product series: Exxact
- Number of units: 1
- Colour: White
- Device depth: 47 mm
- Device width: 85 mm
- Device height: 140 mm
- Material: Plastic
- Surface finishing: Glossy
- Halogen free: Yes
- Degree of protection (IP): IP20
- With cover frame: Yes
- RAL-number (similar): 9003
- Material quality: Thermoplastic
- With screw gland entry: Yes
- With cable entry: Yes
- With duct entry: Yes
- Assembly arrangement: Surface mounted box
- Mounting direction: Horizontal and vertical
- Transparent: No
- Surface protection: Untreated
- Suitable for modular domestic switching devices: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
