Schneider Electric
Wall socket 1-way Wiser Zigbee
SSO WISER CONECTED W WDE002172
Article number: Suppl. article no:
1820445
WDE002172
to see price and stock
To shop with us, you need a registered company and a customer number.

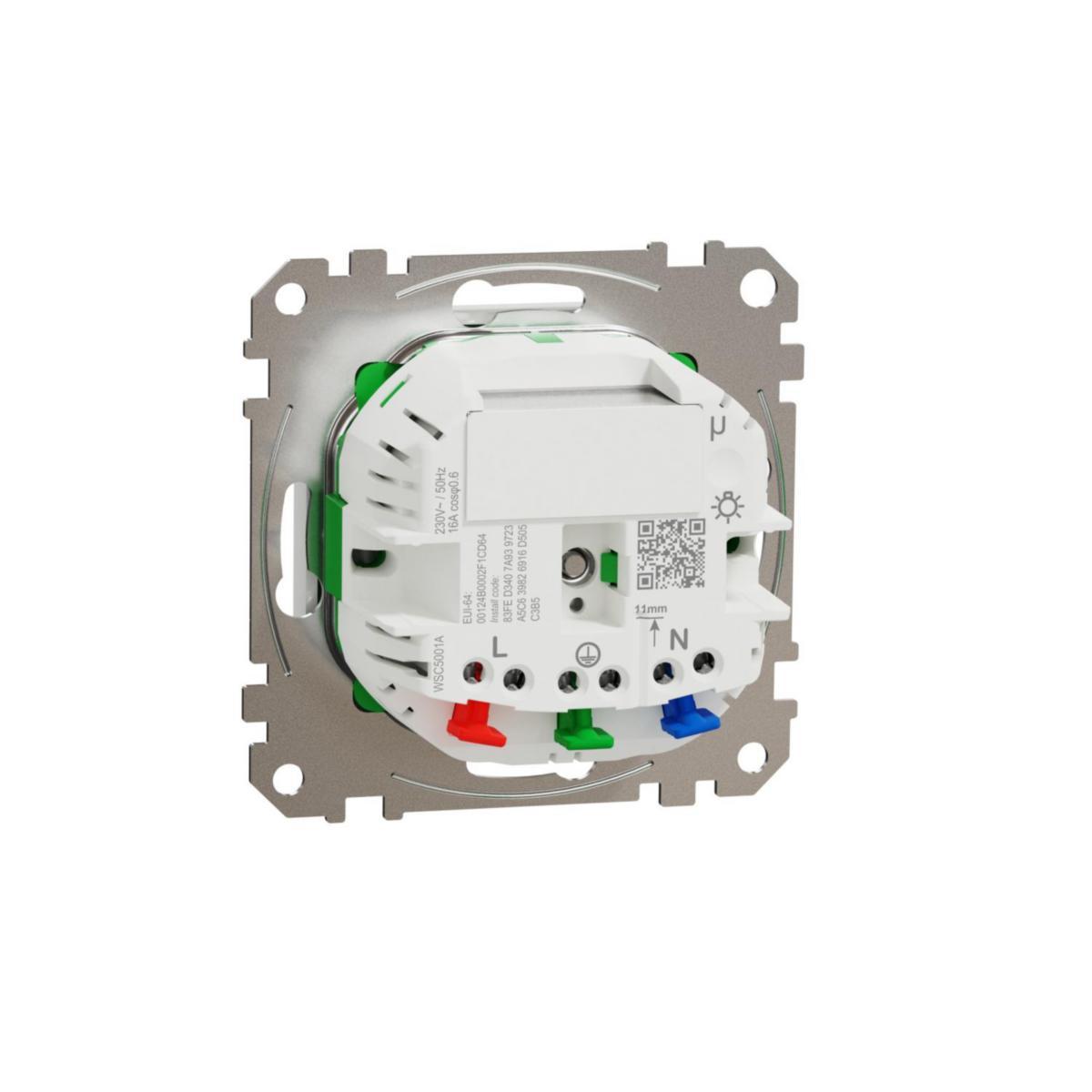

Exxact connected 1-way wall socket 16 A for recessed mounting including energy monitoring function with Class 1 accuracy (IEC 62053-21). Switching on and off via the socket's integrated push button or via the Wiser app. You must also have a Wiser gateway, e-no. 17 240 04, to be able to control and monitor the outlet via the app. With the Wiser app, various time management options can be selected, such as weekly based control, scheduling and astro control. The app also shows energy consumption for the connected device. Examples of areas of use are all types of electrical appliances that you want to control and monitor energy consumption on. Communicates via Zigbee 3.0. Intended for use in new or existing installations. IP20 / IP40. 230 VAC 50 Hz.
- Article number: 1820445
- Suppl. article no: WDE002172
- Ean no: 3606481038296
- Material class QH8811
Technical data
- Packagin Size: 1 ST/36 ST/288 ST
- Model: Protective contact CEE 7/3 / CEE 7/4 (type F)
- Compatible with Amazon Alexa: No
- IFTTT support available: No
- Number of units: 1
- Number of socket outlets switchable: 1
- Colour: White
- RAL-number (similar): 9003
- Type of fastening: Mounting with screw
- Device height: 72.7 mm
- Device width: 72.7 mm
- Device depth: 43.4 mm
- Lockable: No
- Surface finishing: Glossy
- With hinged lid: No
- Rotated central insert: No
- With function lighting: No
- Mounting method: Flush-mounted
- Over voltage protection: No
- Material: Plastic
- Material quality: Thermoplastic
- With on/off switch: Yes
- With orientation lighting: No
- Halogen free: Yes
- Nominal current: 16 A
- Nominal voltage: 250 V
- Suitable for degree of protection (IP): IP20
- Special power supply: No special power supply
- Number of phases: 1
- Fault current protection: No
- Frequency: 50 Hz
- For heavy conditions according to VDE: No
- With miniature fuse: No
- With enhanced contact protection: Yes
- Eject-mechanism: No
- Surface protection: Untreated
- Label space/information surface: No
- Impact strength: IK03
- With loop through function: Yes
- Insulated mounting: Yes
- Anti-bacterial treatment: No
- With signal lamp: Yes
- Min. depth of built-in installation box: 40 mm
- Number of active contacts (flat): 0
- Number of active contacts (round): 2
- Number of modules (module system): 2
- Transparent: No
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
- Product series: Wiser by SE, Exxact
- Protective earth pin round: No
- With built-in USB power supply: No
- Protective contact: Yes
- Connection type: Push-in clamp
