Schneider Electric

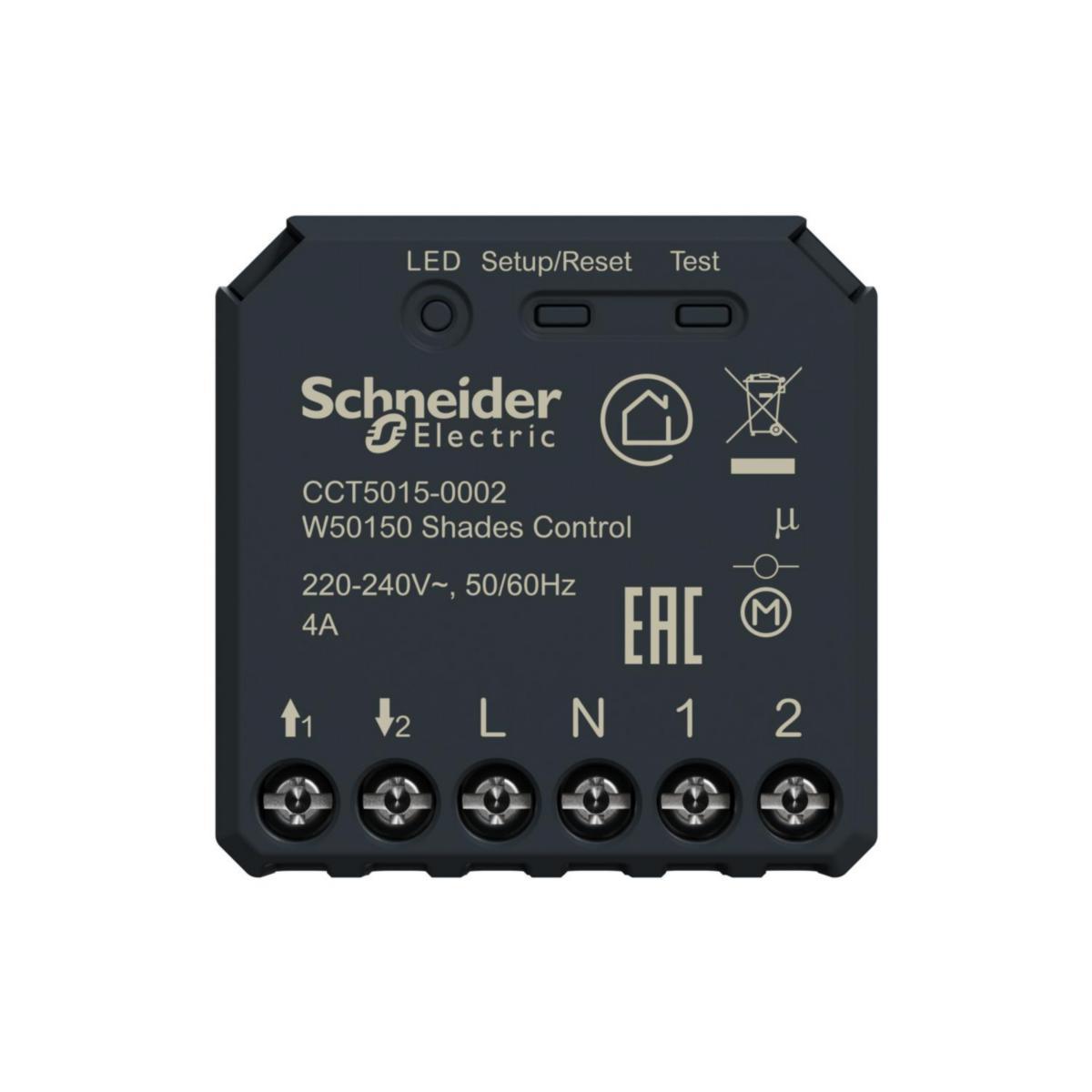

Jalousie switch Puck Zigbee

PUCK BILD CONTROL WITH ZIGBEE CCT5015-0002
Article number:
1820433
Suppl. article no:
CCT5015-0002





 to see price and stock
Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Wiser shutter switch puck with Bluetooth control. The connections of the shutter switch puck are completely mechanically and electronically insulating from each other. Max 4A, screw connection. Maximum number of pushbuttons per unit 10 pcs. The puck is easily installed in a recessed or surface-mounted box (35 mm), for example behind resilient shutter switches or in an existing connection or ceiling box (dimensions 43x43x22 mm). You must also have a Wiser gateway, e-no. 14 240 04, to be able to handle the puck via the Wiser app. Via the app, you have the opportunity to control the puck via mobile or tablet. The settings are made via the app. Communicates via ZigBee 3.0.
  • Article number:
    1820433
  • Suppl. article no:
    CCT5015-0002
  • Ean no:
    3606481909770
  • Material class
    QH8811
Technical data
  • Packagin Size: 1 PCS/40 PCS/640 PCS
  • Number of inputs: 2
  • Max. switching power: 0 W
  • Max. number of venetian-blind outputs: 1
  • Switching current (resistive): 4 A
  • Width in number of modular spacings: 0
  • Radio frequency bidirectional: Yes
  • Type of current: AC
  • Bus module detachable: No
  • With bus connection: Yes
  • Bus system KNX: No
  • Bus system KNX-RF (Radio Frequency): No
  • Bus system LON: No
  • Bus system Powernet: No
  • Bus system radio frequency: No
  • Local operation/hand operation: No
  • With LED indication: Yes
  • With switch function: No
  • Mounting method: Flush-mounted
  • Degree of protection (IP): IP20
  • Other bus systems: Other
  • Min. depth of built-in installation box: 23 mm
  • REACH Date: 2022-07-20
  • REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
  • REACH Information obligation: Yes
