Schneider Electric

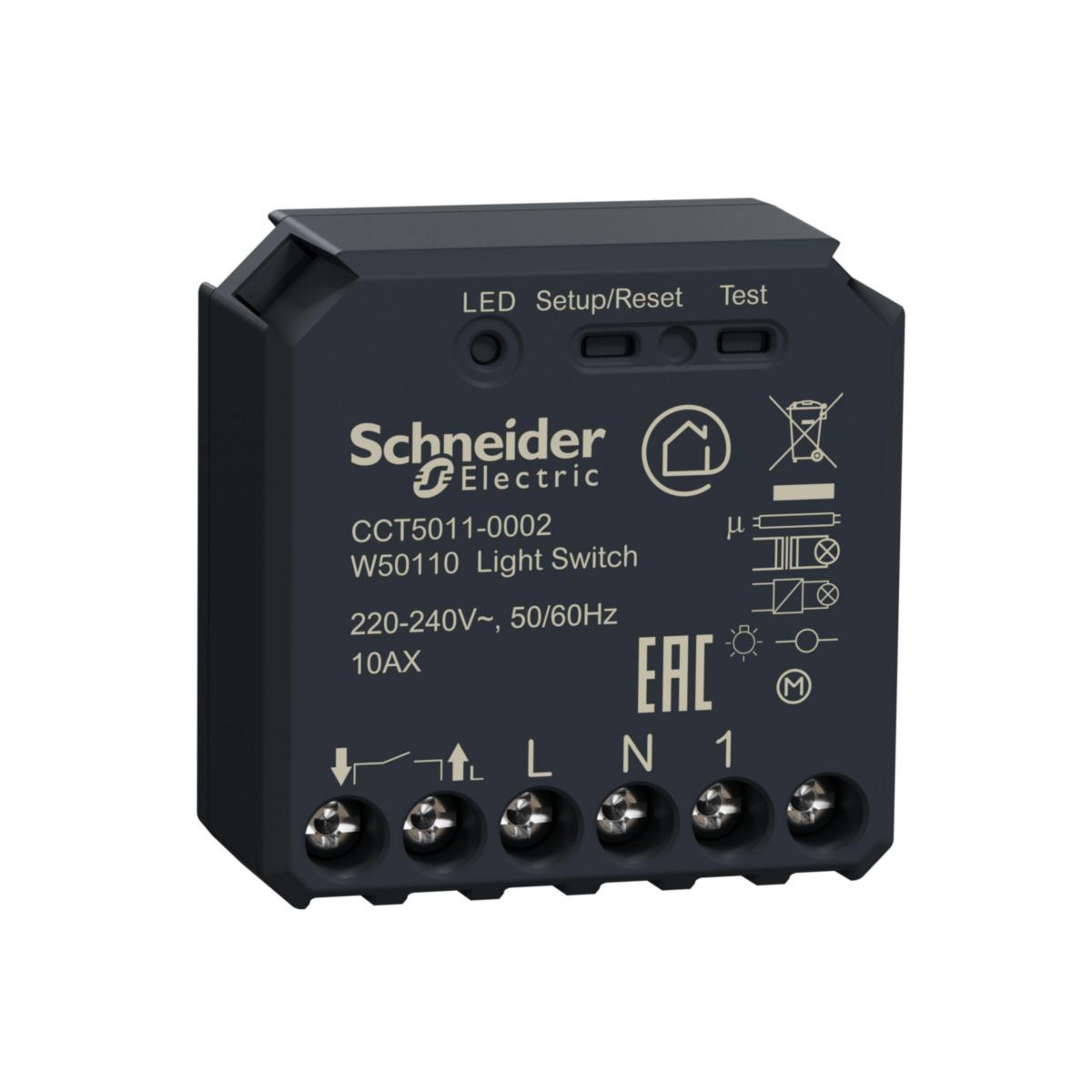

Switch puck Wiser Zigbee
PUCKSWITCH WITH ZIGBEE CCT5011-0002
Article number: Suppl. article no:
1820432
CCT5011-0002
to see price and stock



Wiser switch puck with Zigbee control. When regulating LED lamp (RC) 5-100VA, LED lamp (RL) 5-20VA. Incandescent, 230V halogen (R) 14-200W / VA, electronic transformers (C) 14-200VA, conventional transformers (L) 14-150VA, screw connection. Maximum number of pushbuttons per unit 10 pcs. The puck is easily installed in a recessed or surface-mounted box (35 mm), for example behind resilient switches or in an existing connection or ceiling box (dimensions 43x43x22 mm). You must also have a Wiser gateway, e-no. 17 240 04, to be able to handle the puck via the Wiser app. Via the app, you have the opportunity to control the puck via mobile or tablet. The settings are made via the app. Communicates via Zigbee 3.0.
- Article number: 1820432
- Suppl. article no: CCT5011-0002
- Ean no: 3606481909763
- Material class QH8810
Technical data
- Packagin Size: 1 ST/40 ST/40 ST/640 ST
- Colour: Grey
- Assembly arrangement: Basic element
- Model: Other
- Type of load: Other
- Switch capacity: 100-2200 W
- Frequency: 50-60 Hz
- Nominal voltage: 230 V
- Rated current: 10 A
- Applicable with infrared button: No
- Applicable with button: Yes
- Applicable with presence indicator: No
- Applicable with movement sensor: No
- Applicable with time switch/timer: No
- Applicable with transmission button: Yes
- Light value memory: No
- Material: Plastic
- Material quality: Other
- Mounting method: Flush-mounted
- Substation input: Yes
- Switch capacity HVAC: 0 W
- RAL-number (similar): 7016
- Transparent: No
- Type of fastening: Mounting with screw
- Surface finishing: Matt
- Surface protection: Untreated
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Min. depth of built-in installation box: 22 mm
- Product series: Wiser by SE
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | Lead oxide, Blyoxid, Blymonoxid, C.I. Pigment Yellow 46 , C.I. 77577, Litharge, Lead(II) oxide
- REACH Information obligation: Yes
