Schneider Electric

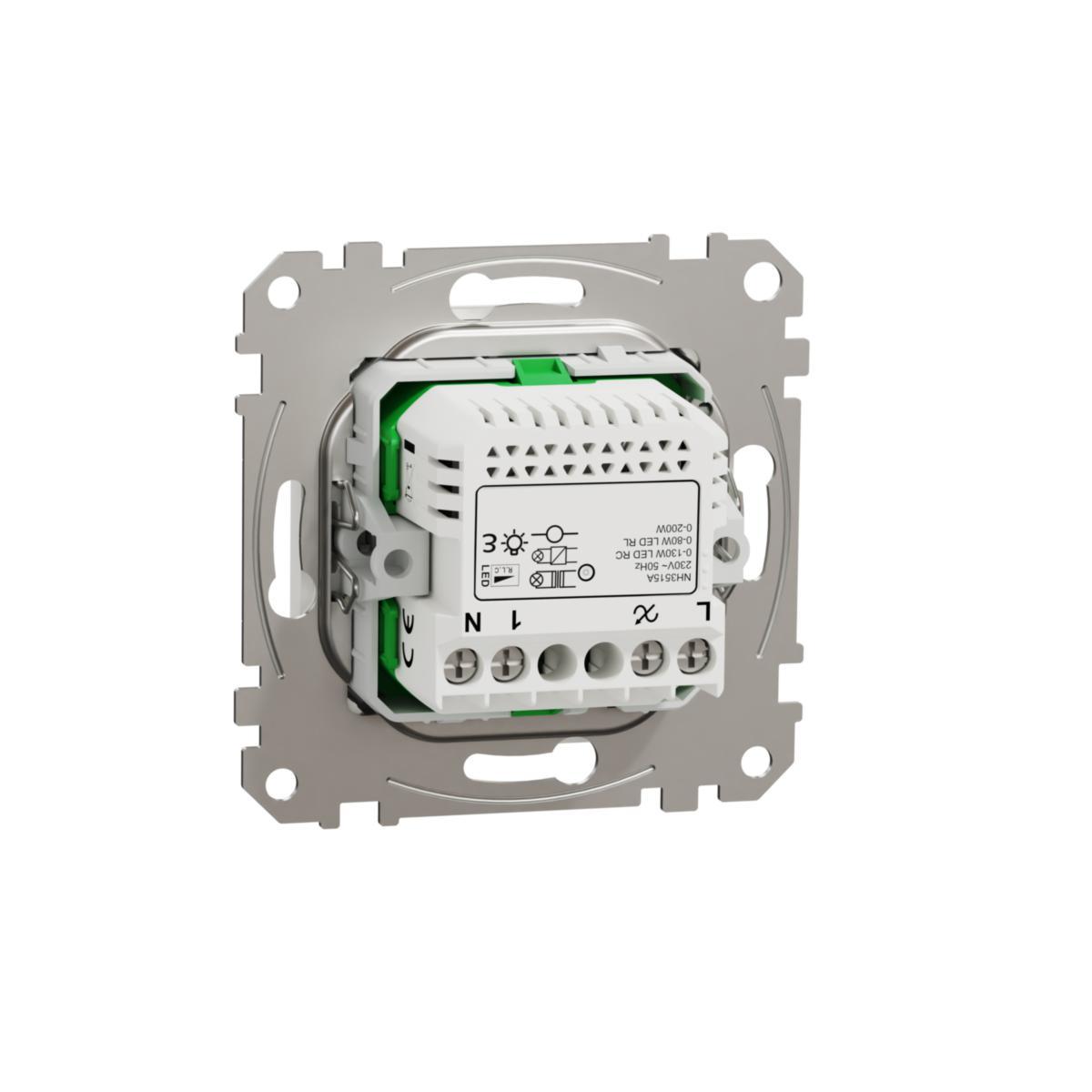

Pressure dimmer 370 with zero LED Wiser Zigbee

Con uni LED PB MW dimmer Wh
Article number:
1360782
Suppl. article no:
WDE002960





to see price and stock
To shop with us, you need a registered company and a customer number.
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
Exxact connected pressure dimmer LED with the option of connecting a neutral conductor. Zigbee 3.0. The following specification applies when the neutral conductor is connected: when regulating LED lamp (RC) 0-130 W, (RL) 0-80 W. Incandescent light 0-200W. Halogen 0-150W and most types of electronic (C)/conventional transformers (L) 0-150VA. Without connected neutral conductor, the following specification applies: LED lamp (RC) 7-130 W, (RL) 7-80W. Incandescent light 14-200W. Halogen 14-150W. For recessed mounting in a device box c/c 60mm, for surface mounting a 35mm box is used. Requires Wiser gateway, e-no. 17 240 04, to be able to manage the dimmer via the Wiser by SE app. Via the app, you can manage the dimmer via mobile or tablet. The settings are made via the app. Communicates via Zigbee 3.0. IP20. Complete with optional Exxact frame.
  • Article number:
    1360782
  • Suppl. article no:
    WDE002960
  • Ean no:
    3606482232563
  • Material class
    QH8811
Technical data
  • Packagin Size: 1 PCS/36 PCS/288 PCS
  • Product series: Wiser by SE, Exxact
  • Colour: White
  • Type of load: Universal and LED Retrofit
  • Nominal power inductive load: 0-150 VA
  • Nominal power capacitive load: 0-150 VA
  • Nominal power resistive load: 0-200 W
  • RAL-number (similar): 9003
  • Assembly arrangement: Basic element
  • Nominal voltage: 230 V
  • App control via Bluetooth: No
  • Serial dimmer: No
  • Device width: 71 mm
  • Device height: 71 mm
  • Device depth: 40 mm
  • Dimming phase cut-off (trailing edge): Yes
  • Dimming phase cut-on (leading edge): Yes
  • Core cross section: 1.5-2.5 mm²
  • Type of fastening: Mounting with screw
  • Mounting method: Flush-mounted
  • Method of operation: Push button
  • Frequency: 50 Hz
  • Min. depth of built-in installation box: 46 mm
  • Material quality: Other
  • Material: Other
  • Halogen free: No
  • Light value memory: Yes
  • Suitable for degree of protection (IP): IP21
  • Applicable with button: Yes
  • Applicable with movement sensor: No
  • Applicable with presence indicator: No
  • Applicable with time switch/timer: Yes
  • Applicable with transmission button: Yes
  • Applicable with infrared button: No
  • Transparent: No
  • Surface finishing: Glossy
  • Surface protection: Untreated
  • Substation input: Yes
  • Impact strength: IK02
  • Compatible with Amazon Alexa: Yes
  • Compatible with Apple HomeKit: Yes
  • Compatible with Google Assistant: Yes
  • Max. switching power LED: 130 W
  • IFTTT support available: No
  • Connection type: Screwed terminal
  • REACH contains candidate substances: Bly | Blytitanzirkoniumoxide
  • REACH Date: 2022-07-20
  • REACH Information obligation: Yes
