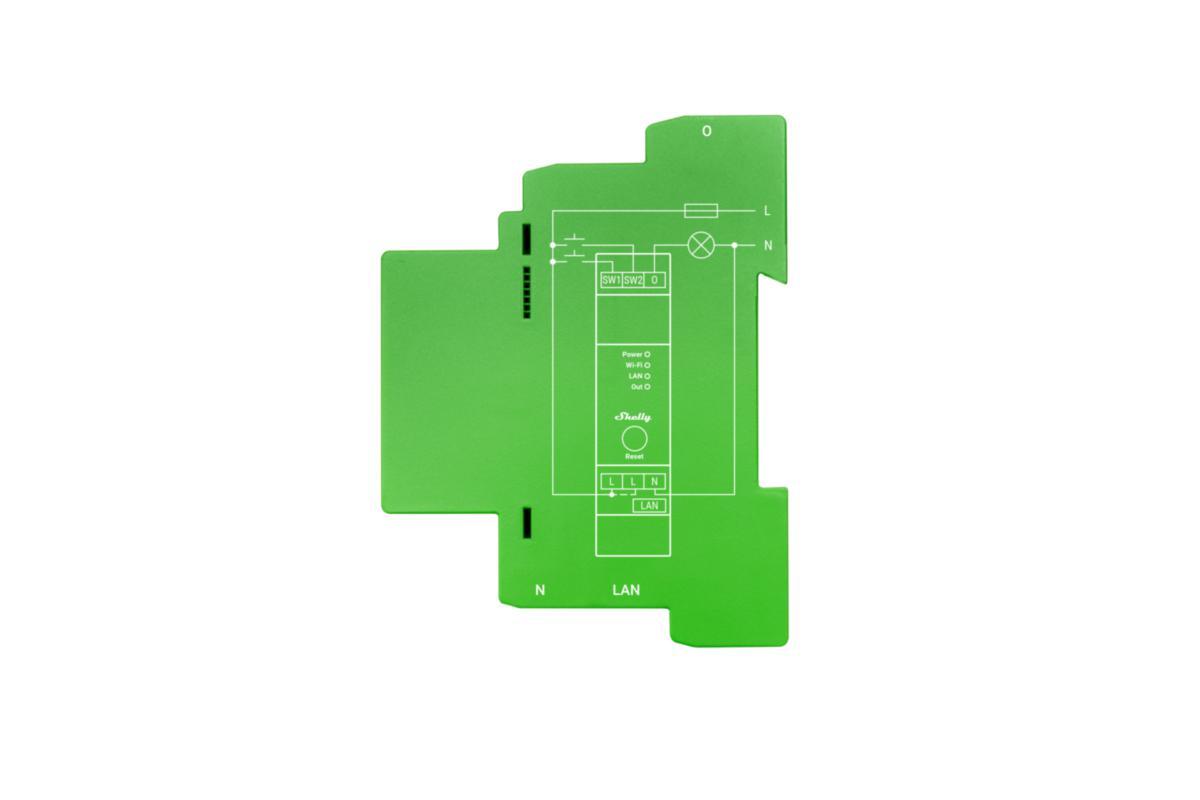

Dimmer Shelly DIN Pro

Shelly Pro Dimmer 1PM and Shelly Pro Dimmer 2PM are WiFi-controlled 1-channel and 2-channel light dimmers for mounting on a DIN rail in the electrical center. Both variants can be loaded with up to 200W LEDs per output and simultaneously have power measurement on each channel, which provides a simple overview of consumption.

Shelly's Pro Dimmer 1PM and 2PM can be easily set up and controlled through the Shelly Smart Control app or your preferred smart home system. Shelly devices work 100% locally and only need a local network to work. Shelly can be used alone in the Shelly Smart Control app or with more than 200 partner systems such as Google Home, Amazon Alexa, Home Assistant, Samsung SmartThings, Athom Homey and many more.

Load schedule per output
•LED lamps (Dimbara): 200 W
•Dimmable electronic transformers: 180 W
•LED lights (Non-dimmable): 110 W (On/Off mode)
•Light bulbs: 200 W
•Halogen lamps: 200 W
•Variable transformer: 200 VA
•Low energy lamps: 50 W

The dimmers can be supplied with 110-240 VAC. They both have two inputs per light dimmer output, which enables 2-press operation. By default, they are set to be controlled by a single spring-loaded button. Both inputs are fully programmable which means that the extra input can also be used to control another Shelly device.

Shelly Pro Dimmers can be connected to the Internet or the local network via 2.4 GHz WiFi and/or via RJ45 LAN cable. In addition, the device has built-in Bluetooth, like the rest of the Pro and Plus devices, which means it can also be used as a gateway for Shelly's battery-powered Bluetooth devices.

All Shelly devices work locally without connecting to the Shelly Cloud, but it is recommended to enable this for easy data storage and increased functionality. Devices can also communicate via MQTT, HTTP and WebSocket. All support TLS.
