Schneider Electric
Push buttons Exxact, KNX, Schneider
P-BUTT 2G WH EXXACT KNX
Article number: Suppl. article no:
1758921
WDE002933
to see price and stock
To shop with us, you need a registered company and a customer number.

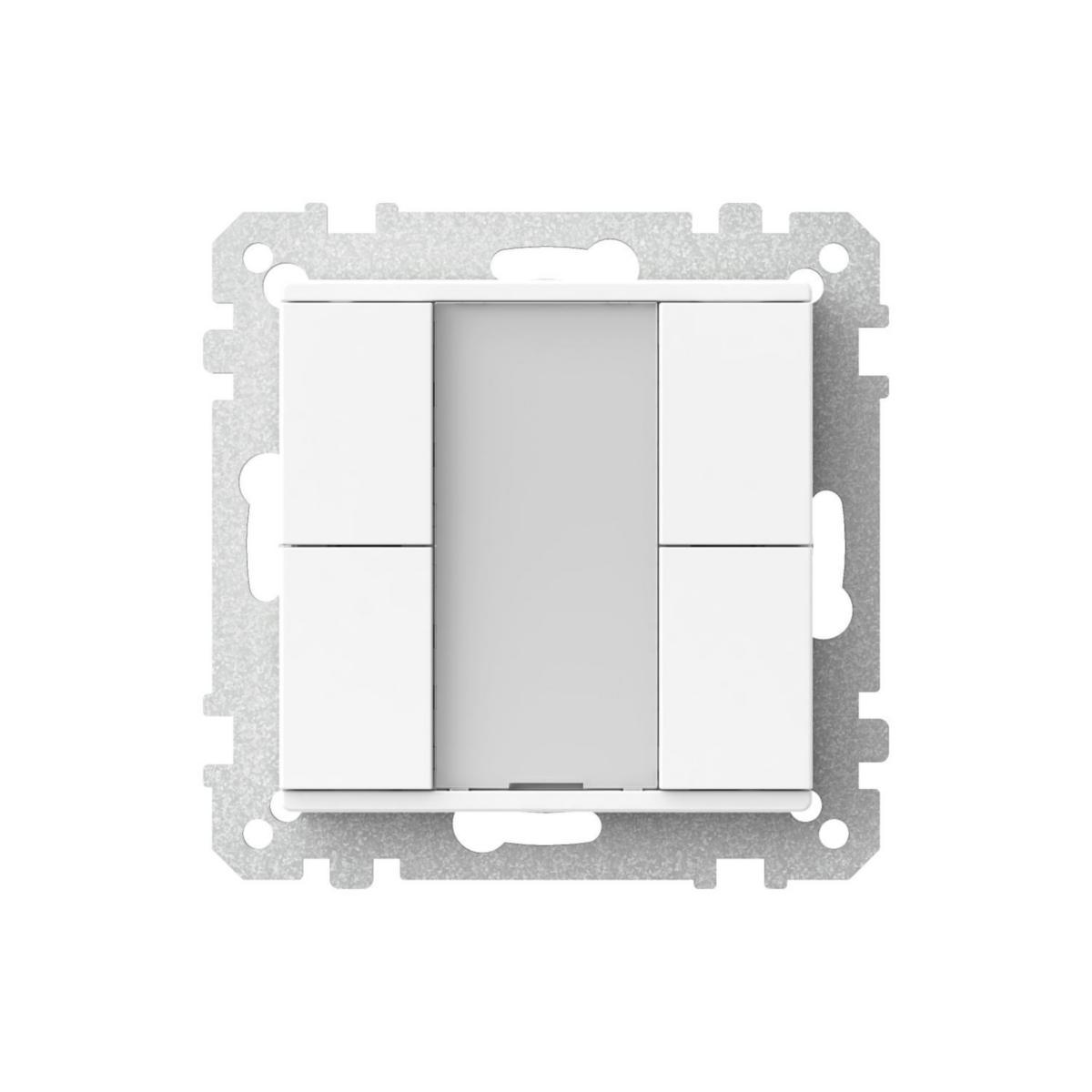

KNX push button with 2, 4 or 8 control buttons, operation, status indication and rating field. The model with 8 buttons is also available with a built-in IR-receiver. Push button supplied with bus connection clamp. For recessed mounting on the apparatus box c/c, 60 mm. For surface mounting box 21mm is used. Supplemented by optional Exxact frame.
- Article number: 1758921
- Suppl. article no: WDE002933
- Ean no: 3606480206429
- Material class QG100B
Technical data
- Packagin Size: 1 ST/10 ST
- Type: WDE002933
- Product series: Exxact
- Number of buttons: 4
- Number of actuation points: 4
- Colour: White
- With IR sensor: No
- With room temperature controller: No
- With display: No
- Material: Plastic
- Material quality: Thermoplastic
- With bus connection: Yes
- Bus system KNX: Yes
- Bus system KNX-RF (Radio Frequency): No
- Other bus systems: None
- Bus system LON: No
- Bus system Powernet: No
- Bus system radio frequency: No
- RAL-number (similar): 9003
- With LED indication: Yes
- With anti-theft/dismantling protection: No
- With label area: No
- Mounting method: Flush-mounted
- Degree of protection (IP): IP20
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- REACH contains candidate substances: Bly | Boroxid, Diboron trioxide | 2-methylimidazole
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
- Colour: White
- Dimension other: 70x70x20
