Schneider Electric

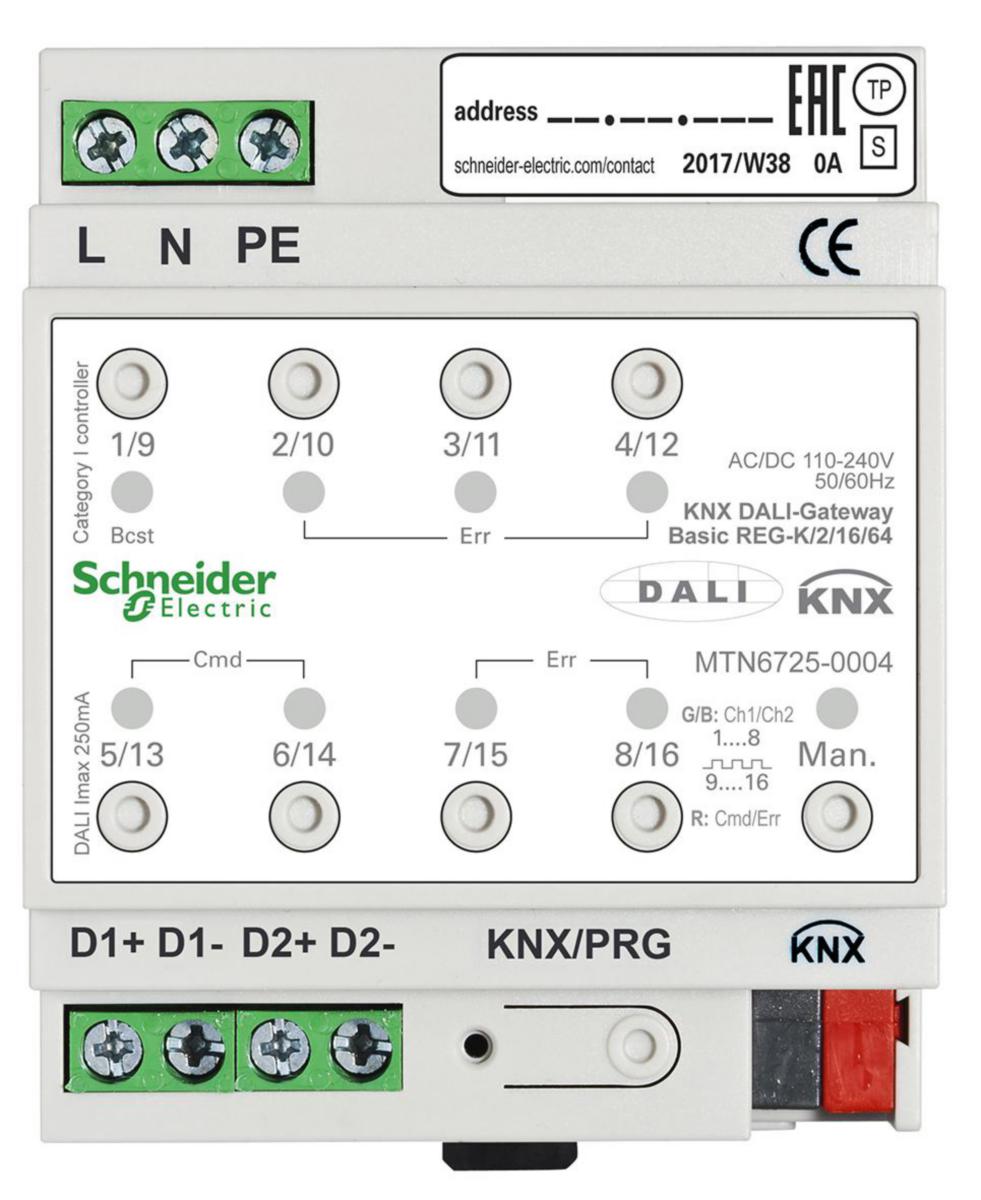

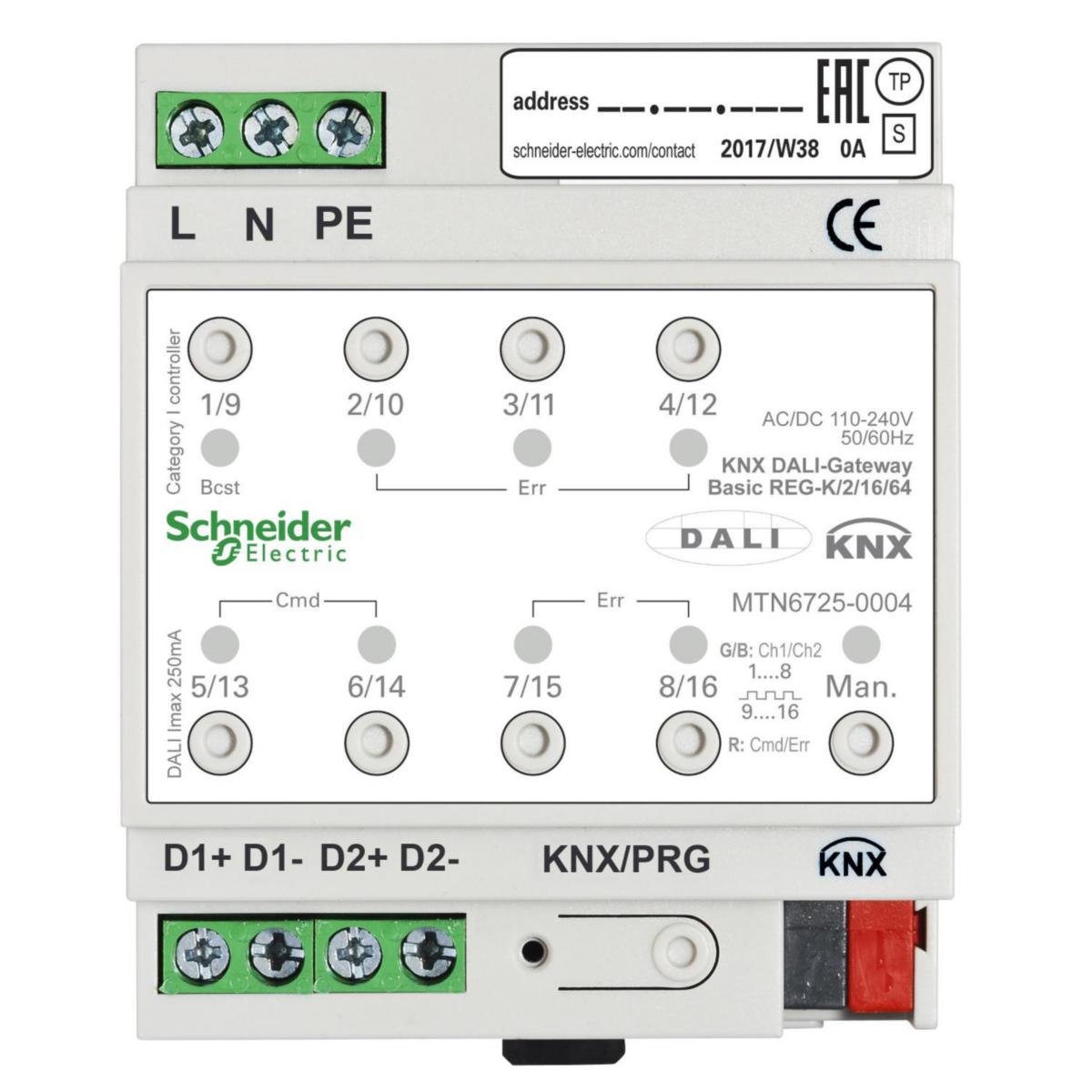

KNX / DALI-Gateway, Schneider
KNX DALI GW BASIC/2/16/64 MTN6725-0004
Article number: Suppl. article no:
1739262
MTN6725-0004
to see price and stock
To shop with us, you need a registered company and a customer number.
KNX / DALI-Gateway basic 2/16 / 64- which connects KNX with digital ballasts that have DALI interface. The gateway has two channels, each of which can connect up to 64 devices. These can then be connected and dimmed in 16 groups. For simpler installations where many luminaires are to be controlled in groups.
- Article number: 1739262
- Suppl. article no: MTN6725-0004
- Ean no: 3606489484057
- Material class QG100B
Technical data
- Packagin Size: 1 ST/10 ST
- Number of channels: 2
- Provider dependent: No
- Width in number of modular spacings: 4
- Bus system KNX: Yes
- Bus system KNX-RF (Radio Frequency): No
- Bus system LON: No
- Bus system Powernet: No
- Bus system radio frequency: No
- Demounting protection: No
- Operating voltage: 230 V
- IR interface: No
- Updateable: Yes
- With LED indication: Yes
- Model: Light system interface/DALI
- Mounting method: DRA (DIN-rail adapter)
- Protocol: Other
- Radio interface: No
- Degree of protection (IP): IP20
- Visualization: No
- Web-Server: No
- Other bus systems: Other
- Radio frequency bidirectional: No
- REACH Date: 2022-07-20
- REACH Information obligation: No
