HellermannTyton

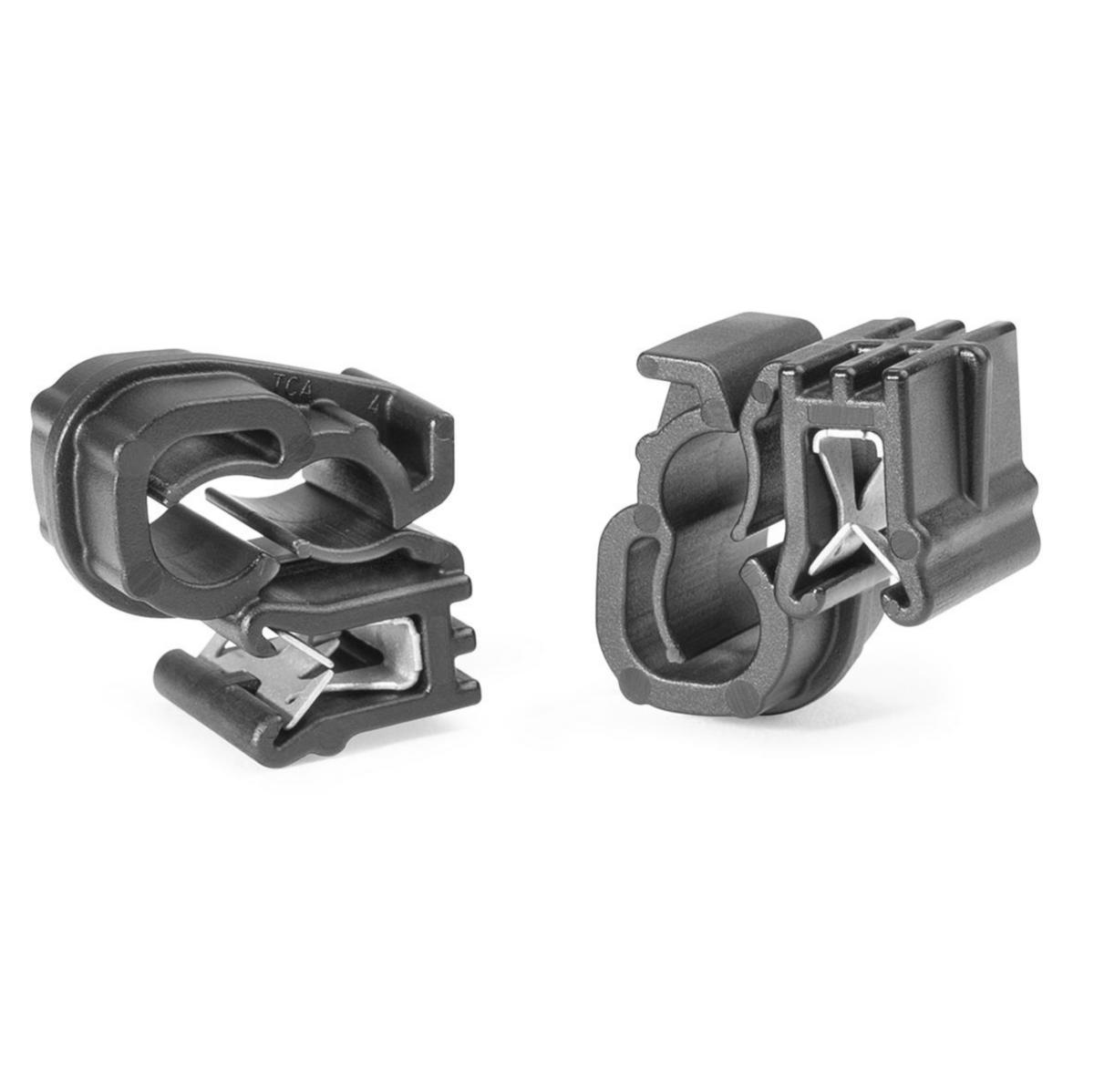

Edge clips for solar panel cables
Cabel clips for edges
Article number: Suppl. article no:
1518161
151-04010
to see price and stock
To shop with us, you need a registered company and a customer number.
Fixing 1 or 2 parallel solar panel cables along the edge of a solar panel. The bracket is simply pressed onto the aluminum frame of the panel. The cables are then pushed into the bracket and fixed. Fits 1-3 mm edges.
- Article number: 1518161
- Suppl. article no: 151-04010
- Ean no: 4031026729701
- Material class QE8200
Technical data
- Packagin Size: 1 Pack/42 Pack
- Type: EC1-3SPDHC6-7
- Diameter: 5.8-6.8 mm
- Nominal diameter: 6.8 mm
- Number of cables/conduits: 2
- Type of fastening: Edge clip
- Material: Plastic
- Halogen free: Yes
- Material quality: Polyamide flame retardant
- UV resistant: Yes
- Suitable in fire resistance areas: No
- Colour: Black
- REACH Date: 2022-04-10
- REACH Information obligation: No
