Thomas & Betts

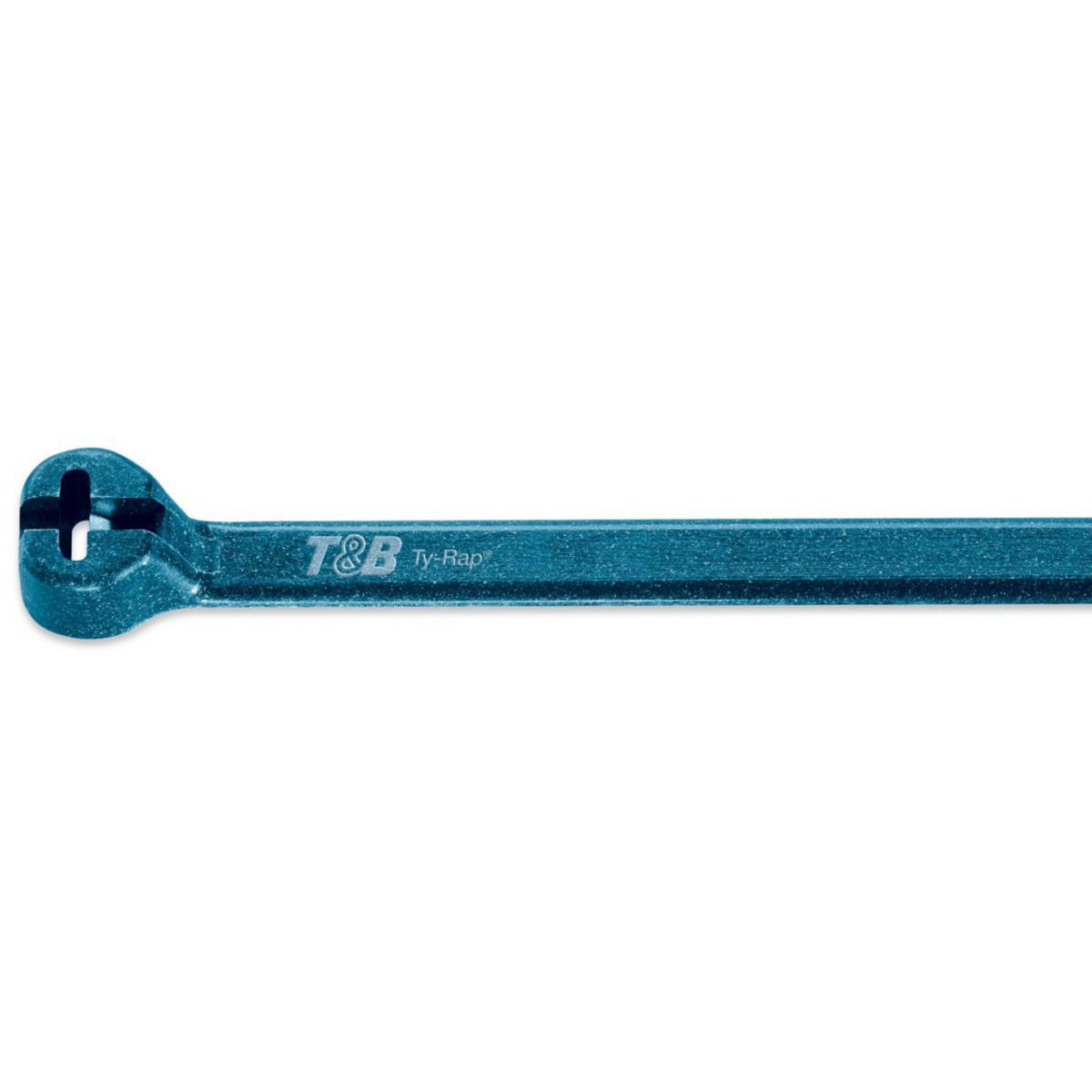

Cable tie TY-NDT detectable blue, Thomas & Betts
C TIE 18LB 4IN BLUE NYL DETECT TY 523 M-NDT
Article number: Suppl. article no:
1516739
TY 523 M-NDT
to see price and stock
Cable ties with admixture of metallic pigments make it possible for even small pieces of the band to be detected by a metal detector or x-ray equipment. The metal-containing cable tie is specially developed for use in the food and pharmaceutical industry.
- Article number: 1516739
- Suppl. article no: TY 523 M-NDT
- Ean no: 5414363176077
- Material class QE873A
Technical data
- Packagin Size: 1 FRP/100 FRP
- Type: TY523M-NDT
- Length belt/tape/tie: 92 mm
- Band width: 2.4 mm
- Min. tensile strength: 80 N
- Colour: Blue
- Bundle diameter: 2-16 mm
- Material quality: Polyamide (PA)
- Material: Plastic with metal pigments
- UV-stable according to ASTM D6779: No
- MIL approval: No
- Detectable: Yes
- Halogen free: Yes
- Model: Without toothing
- Surface protection: Untreated
- Tie thickness: 0.91 mm
- Fluorescent: No
- Text strip: None
- Band closure: Steel nose
- Inflammability class of insulation material according to UL94: V2
- VG approval: No
- Operating temperature: -40-85 °C
- UL approval: Yes
- Releasable closure: No
- Type of fastening: None
- Transparent: No
- REACH Date: 2022-01-17
- Max. bundle diameter: 16 mm
- REACH Information obligation: No
