Pmflex

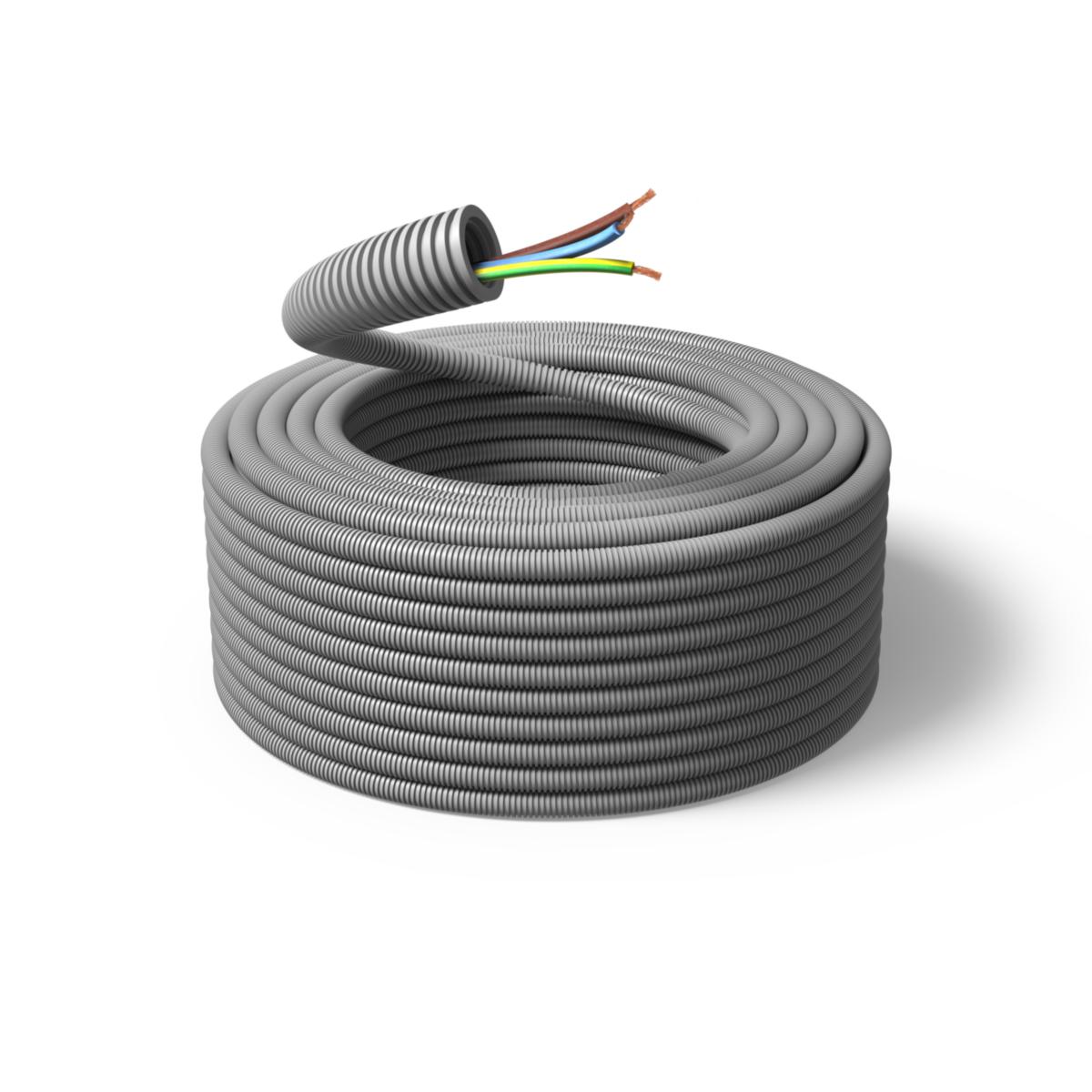

Flex hose FK pre-wired Eca, PM Flex
CONDUIT 16/K 33G1.5 NEXT R100
Article number: Suppl. article no:
1418180
1418180
to see price and stock
PM FLEX offers a complete range within the contract, both high current and low current. Using the contract is a simple and cost-effective way to carry out installations. All our cables and conductors are routed in halogen-free flex pipes. Area of application is for all types of electrical installations, new constructions, renovations and placement on arches 750N is cast-in and meter-marked.
FK has round low-wire copper conductors with colored PVC insulation without sheath.
FK has round low-wire copper conductors with colored PVC insulation without sheath.
- Article number: 1418180
- Suppl. article no: 1418180
- Ean no: 7332367700884
- Replaces art.nbr: 1416520
- Material class QE3501
Technical data
- Packagin Size: 100 M/2400 M
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 3
- Nominal cross section conductor: 1.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Conductor category: Class 2 = stranded
- Material: Polypropylene (PP)
- Halogen free: No
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Eca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Heavy (class 4)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s3
- Reaction-to-fire according to EN 13501-6: Acidity: a3
- REACH Date: 2022-09-02
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
