Pmflex

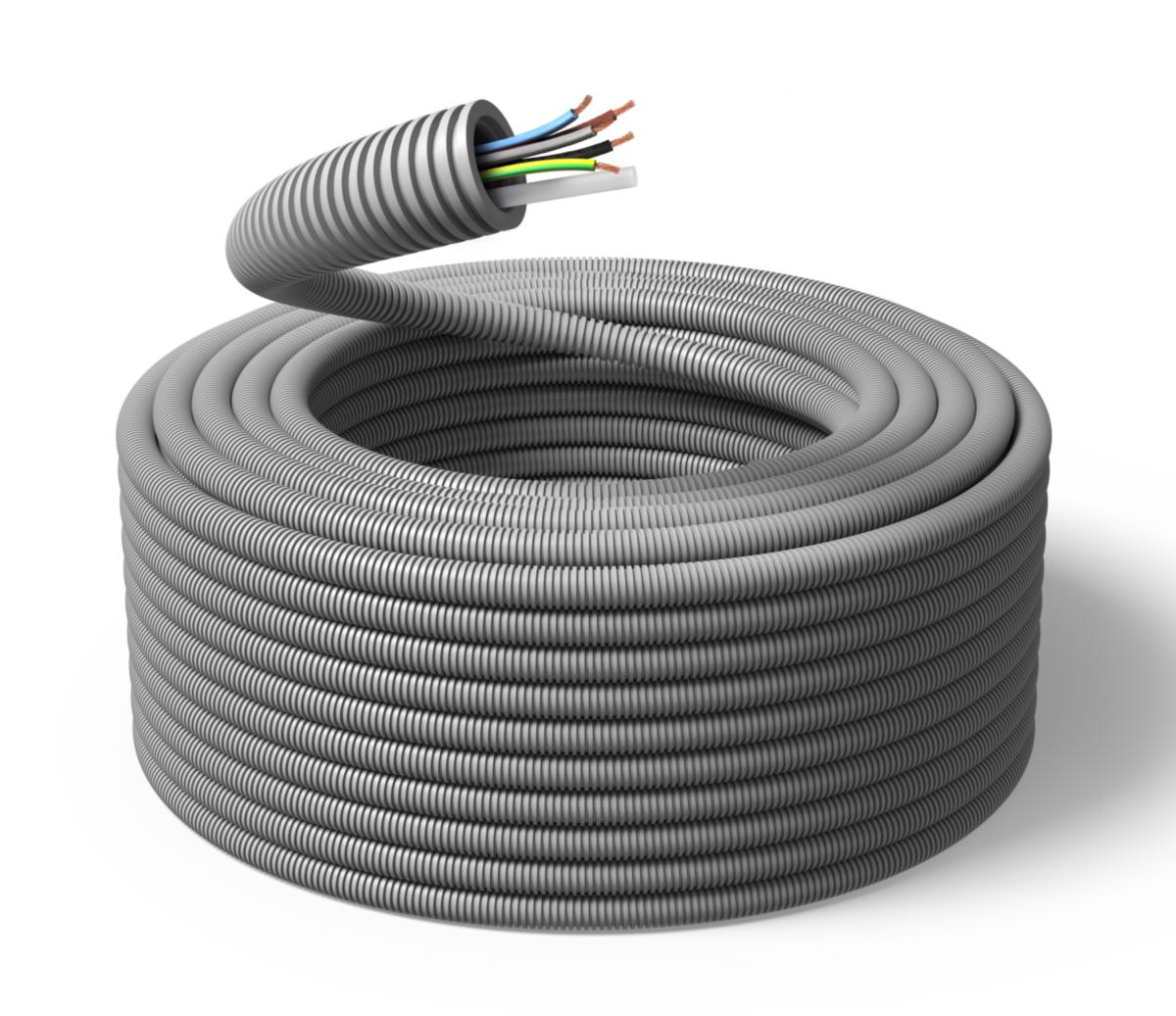

Flex hose pre-wired RQ5G6 + Duct 3 / 2.1, PM Flex
CONDUIT 25/RQ 5G6 + DUCT R50
Article number: Suppl. article no:
1418109
1418109
to see price and stock

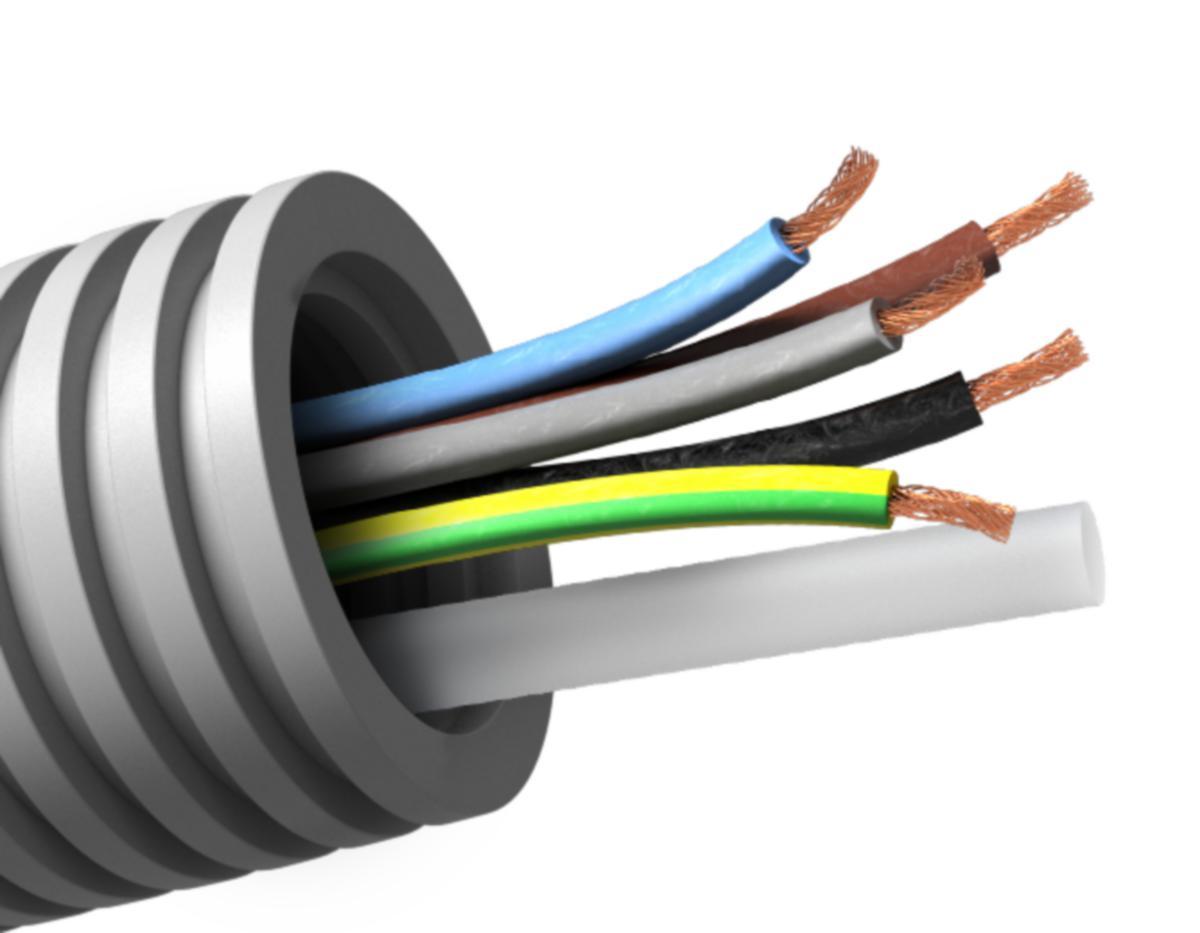

Halogen-free meter-labeled flex pipes, approved for installation within -25 ° C to + 90 ° C and potting up to 750N. Trailed cable and pipe should be protected from direct UV light. The Treatments RQ has round multi-threaded copper conductors with halogen-free colored insulation without sheath and is used primarily for drawing in pipes and conduit ducts, as well as in appliance cabinets and control panels. The halogen-free micro-product is 3 / 2.1 mm and intended for indoor installations.
- Article number: 1418109
- Suppl. article no: 1418109
- Ean no: 7350098730901
- Material class QE3520
Technical data
- Packagin Size: 50 M
- Dimension conductor x area: 5G6 mm² + Dukt 3/2.1
- Number of cores single core cable: 5
- Nominal cross section conductor: 6 mm²
- Colour: Grey
- Outer diameter: 25 mm
- Material: Polypropylene (PP)
- Halogen free: Yes
- Inner diameter: 18.2 mm
- REACH Date: 2022-09-02
- REACH Information obligation: No
