Pipelife

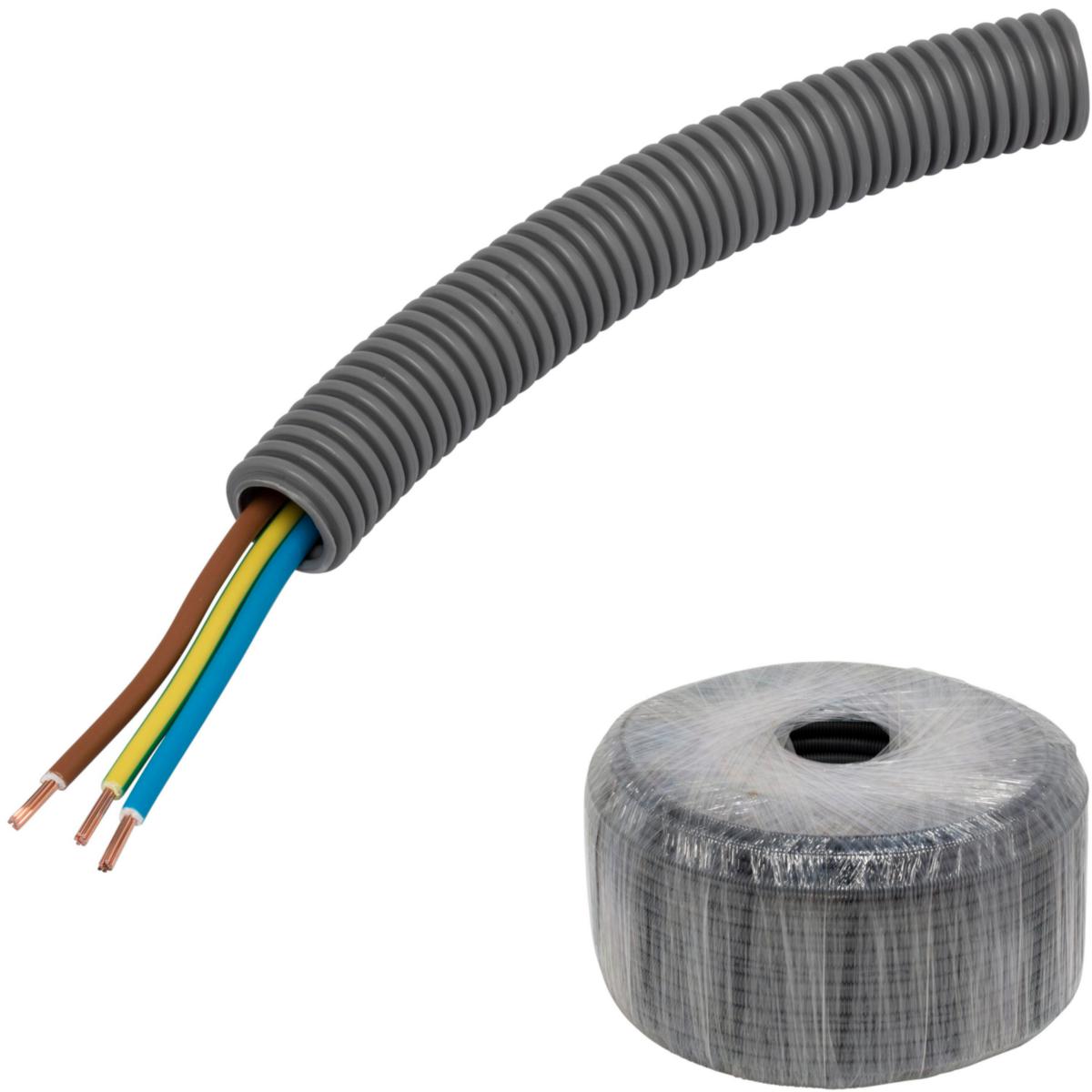

Flex hose FQ twisted PowerFlex Dca, Pipelife
CONDUIT 16MM FQ3G2.5 TVIN
Article number: Suppl. article no:
1414448
1234002987
to see price and stock
Corrugated installation pipe in PP with contracted twisted FQ, CPR class Dca, castable, stiffness class 750 N, Temperature range -25 to + 90 ° C, meter marked, the pipes comply with EN 61386-22, halogen-free
- Article number: 1414448
- Suppl. article no: 1234002987
- Ean no: 9010459173645
- Material class QE4120
Technical data
- Packagin Size: 100 M/2400 M
- Dimension conductor x area: 3G2,5 mm²
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 3
- Nominal cross section conductor: 2.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Number of stranding elements: 3
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Conductor category: Class 2 = stranded
- Material: Polyolefin
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.4 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Medium (class 3)
- Suitable for underground installation: No
- Surface mounting: No
- Suitable for outdoor installation: No
- REACH Date: 2021-06-15
- Compressive strength class: Medium (class 3)
- REACH Information obligation: No
