Astronomical timer switch, a-collection
TIME SWTICH ASTRO 2CH
Article number: Suppl. article no:
1339895
KOPPLINGSUR
to see price and stock

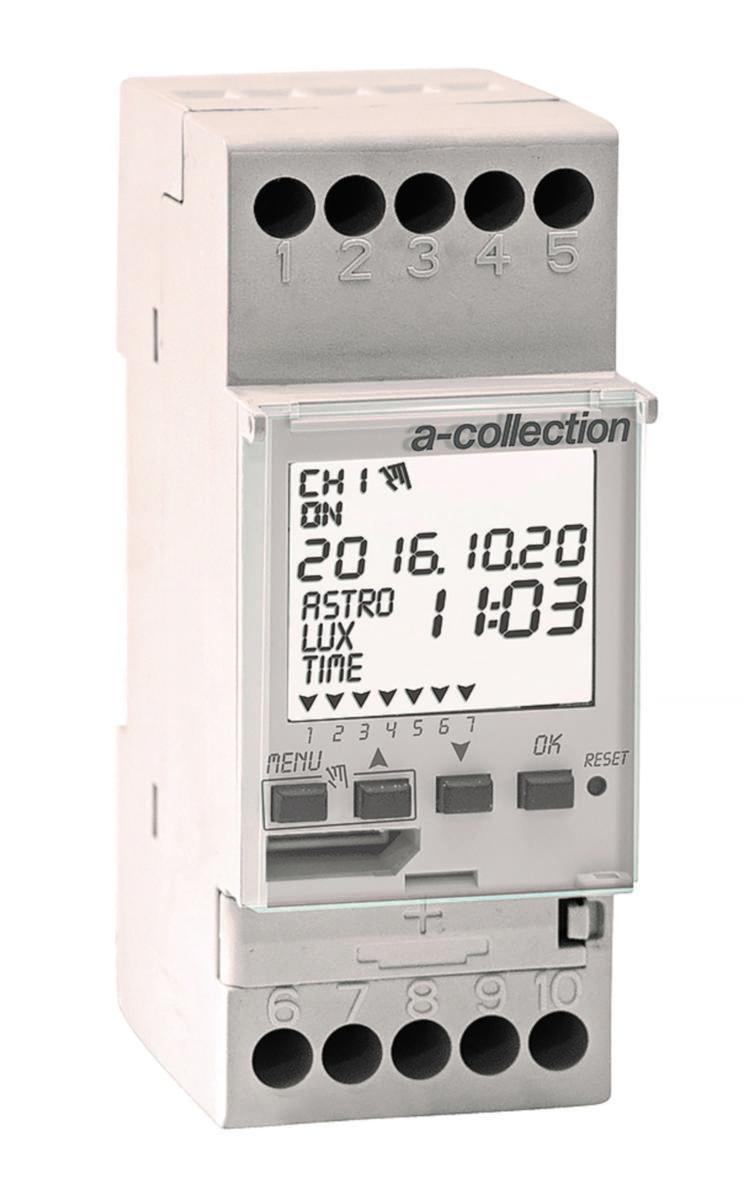

Digital, astronomical timer from the a-collection, for control of, e.g., lighting and heating systems at dusk and dawn. The sunrise and sunset are calculated from the programmed town or coordinates. Create programs with daily/weekly schedules, and holiday programs. Built-in battery backup retains the programs during a power outage. Programming interface and manual in Swedish. Back-lit display with hour meter, service function, and PIN code.
- Article number: 1339895
- Suppl. article no: KOPPLINGSUR
- Ean no: 7333123017246
- Material class QI5300
- This is an alternative to item 1330514 1330613 1330614 1330615 1330617
Technical data
- Number of channels: 2
- Contact type: Change-over contact (NO/NC)
- Shortest switching time channel 1: 1 min
- Shortest switching time channel 2: 1 min
- Width in number of modular spacings: 2
- Supply voltage: 207-253 V
- Potential free switch contact: Yes
- 24 h program: Yes
- 60 min program: Yes
- Weekly program: Yes
- Annual program: No
- Number of memory locations: 45
- Astro program: Yes
- Radio-controlled: No
- Radio-controlled (DCF77): No
- Degree of protection (IP): IP20
- Voltage type (supply voltage): AC
- Nominal switching current at 250 V AC: 16 A
- Mounting method: DIN rail
- Automatic switching summer/winter time: Yes
- Text guidance in display: Yes
- External programming: Yes
- External push button input: No
- Frequency supply voltage: 50 Hz
- GPS (global positioning system): No
- Accuracy per day: 1 s
- Autonomy in years: 6
- Width: 35 mm
- Depth: 60 mm
- Hour meter: No
- Impulse program: No
- Quartz controlled: Yes
- Suitable for manual operation: Yes
- With memory card: No
- Mains synchronous: Yes
- Holiday program: Yes
- Random program: No
