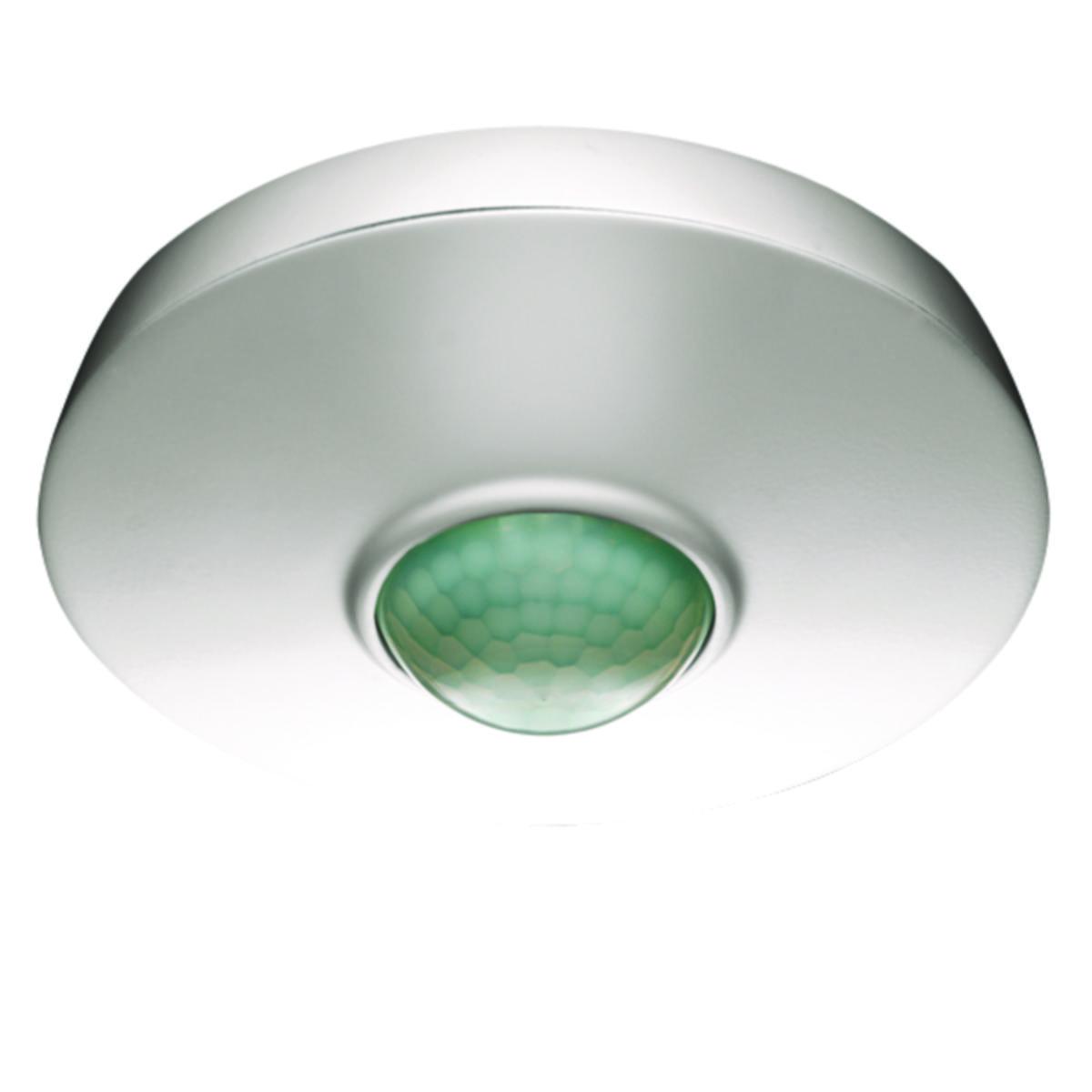

Presence detector PD-360i , Esylux

Presence detector with 360° surveillance area for mounting on ceiling.
With a wide range of 8 to 24m in diameter for use in offices, classrooms, conference rooms etc. as well as in passageways that let in daylight
Especially suitable for installations at heights up to 10m, as in sport halls, warehouse halls, etc. Refers to the 24m model.
Suitable in conjunction with 16 A high power relay (wolfram contact) especially suitable for switching on/off capacitive loads such as EL-FDs, parallel-compensated fluorescent lamps, compact fluorescent lamps, low energy lamps
Automatic lighting control based on presence and daylight
Additional break contact "VVK" for heating-ventilation-climate control based on presence
Programmable with remote control, i.e. permanent light ON/OFF and automatic readings of actual light strength
Prevents accidental activation, thanks to the built in connector for remote control /potentiometer setting
Standard version as recessed unit with white cover frame and design ring IP 20
Universal surface mounted box IP 54 with 2 membrane bushings for cables (accessory)
Quick connections in dual plug clamps for cable bushing
Modular system with powerbox (power unit) and connectable sensor
Install / connect the power box - after finishing the paint work, the sensor can be easily connected
Big connection space thanks to the power box’s small format
Factory-set operations program for immediate commissioning
Additional button input for individual, manual on/off switching of the light
The detector can be used in full or semi-automatic operation
Increase of surveillance area with connection of a slave presence detector
Unintentional parameter changes are avoided due to concealed configuration elements
Built-in impulse function for controlling circuit timers or signal units and for use with construction technology / memory controllers
