Extronic

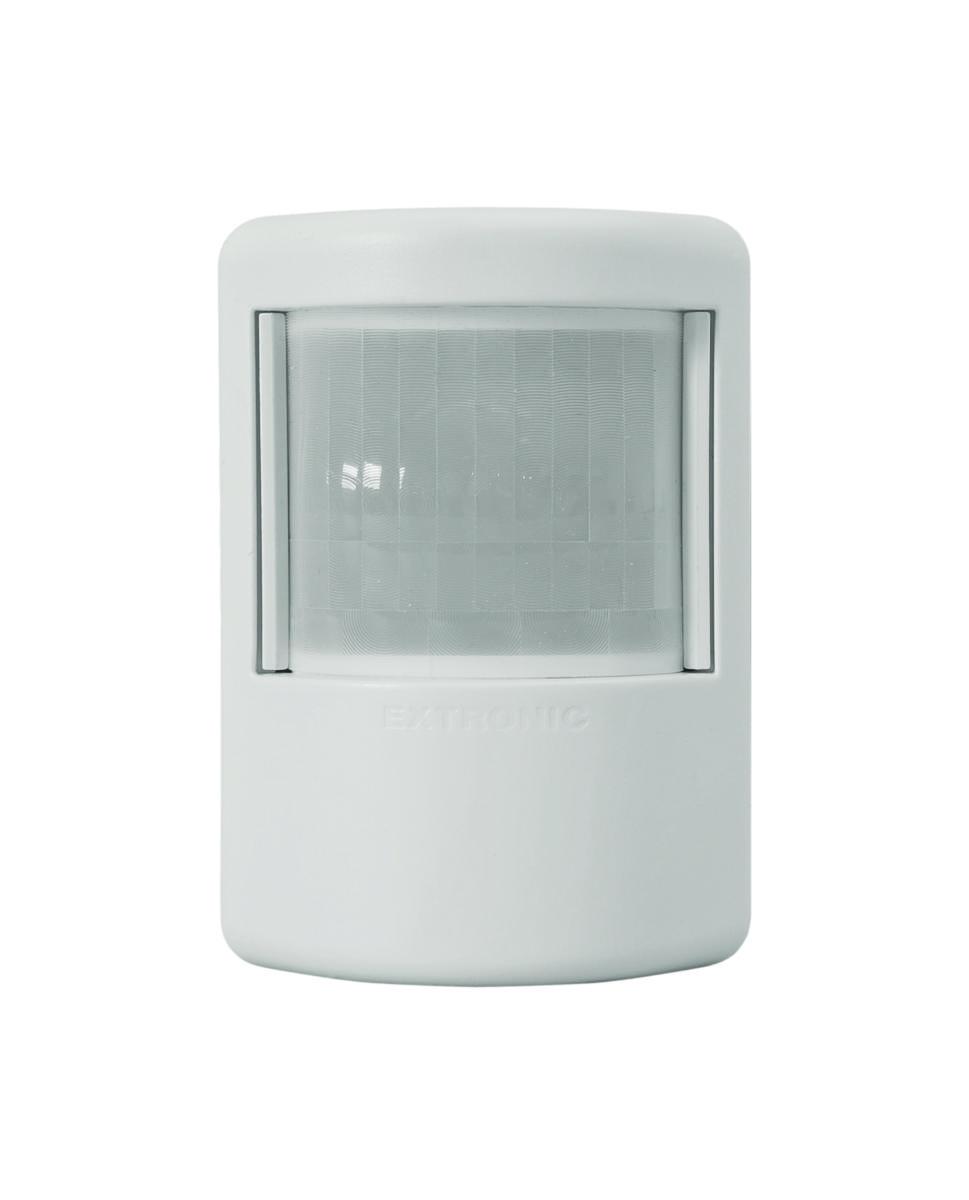

Presence detector passive IR PD-2400, Extronic
PRESENCE DETECTOR TIMER FC 24V
Article number: Suppl. article no:
1306053
13144
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shc.jpg)
The PD-2400 is a passive IR detector intended for presence detection. It has a very sensitive pyro electrical sensor which reacts to changes in heat radiation. The electronics and software of the PD-2400 microprocessor are specially designed for presence detection.
The software analyses the signal from the pyroelectric sensor element and measures noise level and signal strength and counts the pulses. The pulse count is a slower measurement method that detects presences in a low activity site, resulting in weak signals.
With a switch, signal processing can be adapted to premises with high or low activity. A built-in photoelectric cell can be used to stop start-up in the installation with sufficient daylight. The lens in the detector assembles the heat radiation from different fields into the sensor element. There are many different lenses designed for different types of premises (offices, corridors, gyms, culverts, etc.). When a human passes through a field, a strong signal is generated in the sensor element. When someone moves in a field (from or towards the detector, in the field direction), in practice, a weak signal is also generated.
Technical specifications:
The software analyses the signal from the pyroelectric sensor element and measures noise level and signal strength and counts the pulses. The pulse count is a slower measurement method that detects presences in a low activity site, resulting in weak signals.
With a switch, signal processing can be adapted to premises with high or low activity. A built-in photoelectric cell can be used to stop start-up in the installation with sufficient daylight. The lens in the detector assembles the heat radiation from different fields into the sensor element. There are many different lenses designed for different types of premises (offices, corridors, gyms, culverts, etc.). When a human passes through a field, a strong signal is generated in the sensor element. When someone moves in a field (from or towards the detector, in the field direction), in practice, a weak signal is also generated.
Technical specifications:
- Article number: 1306053
- Suppl. article no: 13144
- Ean no: 7340157100035
- Material class QI309B
Technical data
- Type: Presence detector PD2400
- Model: Presence detector
- Max. reach frontally: 80 m
- Max. reach sideways: 80 m
- Colour: White
- With DALI interface: No
- HVAC-control: No
- Mounting method: Surface mounted
- Detection angle horizontal: 45 °
- Max. duty cycle: 20 min
- Degree of protection (IP): IP42
- Max. starting current: 0.02 A
- Response value luminosity adjustable: No
- Min. switch-on time: 2 s
- Voltage type: AC/DC
- With alarm function: No
- Dim function with dimmer basic element: No
- Animal zone: No
- Remote operation: No
- Forced switch off: No
- Networkable: No
- Bridging switch: No
- Material: Plastic
- Halogen free: Yes
- Constant light control: No
- Suitable for wireless transmission: No
- With signal unit: No
- Substation input: No
- Optimum mounting height: 2 m
- Control current: 2000 mA
- Response value sensitivity adjustable: Yes
- Teach-function for response value luminosity: No
- Temperature: -25-30 °C
- Transparent: No
- Staircase light controller: No
- Surface finishing: Matt
- Creep-under protection: No
- Surface protection: Untreated
- Nominal voltage: 24 V
- Suitable for C-load: No
- With remote control: No
- REACH Date: 2021-09-16
- REACH Information obligation: No
