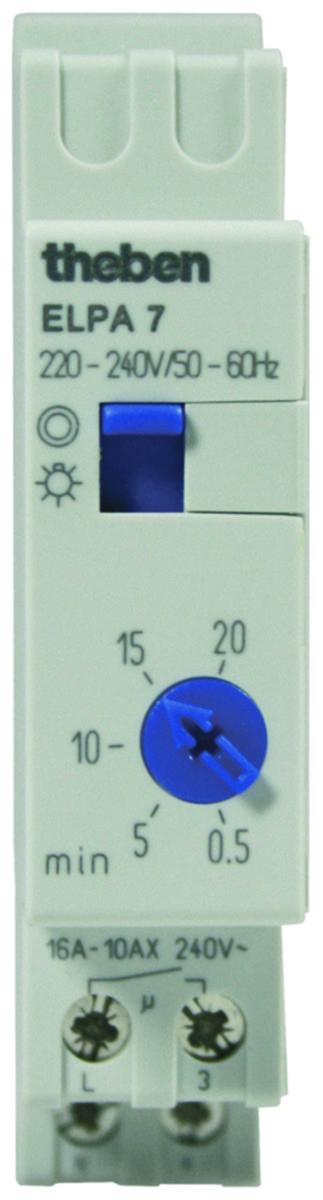

Modular changeover switch ELPA 7, Theben
STAIRCASE TIME SWITCH ELPA 7
Artikelnummer: Lev. artikelnr:
1330450
0070002
för att se saldo och pris
Electronic and quiet stair treadmill specially adapted for systems with low-energy lamps. The lifespan of a low-energy lamp is significantly reduced with many on and off switches and short switch-on times. It is therefore possible to choose a longer switch-on time of up to 20 minutes on the Elpa 7. The stairwell can be used in both 3- and 4-wire systems, the maximum glow lamp load for the unit is 150mA. With switch for fixed light.
- Article number: 1330450
- Suppl. article no: 0070002
- Ean no: 4003468007006
- Replaces art.nbr: 1334110
- Material class QI350B
Teknisk data
- Packagin Size: 1 ST/10 ST/10 ST
- Function: Electronic
- Wiring system: 3 and 4 wire configuration
- Release-delay: 0.5-20 min
- Repetitive: Repetitive
- Pre-warning of switching-off: None
- Mounting method: DIN rail
- Width in number of modular spacings: 1
- Control voltage 1: 220-240 V
- Control voltage 2: 8-240 V
- Type of control voltage 1: AC
- Type of control voltage 2: AC/DC
- Voltage type (supply voltage): AC
- Number of contacts as normally open contact: 1
- Number of contacts as change-over contact: 0
- Number of contacts as normally closed contact: 0
- Frequency control voltage 1: 50-60 Hz
- Frequency control voltage 2: 0-60 Hz
- Max. load fluorescent lamp: 2300 VA
- Max. load fluorescent lamp (Duo circuit): 2300 VA
- Max. incandescent lamp load: 2300 W
- Max. switching current (cos phi = 0.6): 10 A
- Max. load fluorescent lamp (parallel compensated): 400 VA
- Supply voltage: 220-240 V
- Rated switch current: 16 A
- Current surge function selectable: No
- Push button glow-lamp current: 150 mA
- REACH Date: 2022-02-04
- Built-in depth: 60 mm
- REACH Information obligation: No
